GeForce3:
Lightspeed Memory Architecture
Creating
a real-time realistic 3D environment on a mainstream PC is the driving
ambition of thousands of hardware and software developers employed in
the computer graphics industry. While developments over the past years
have made incredible strides towards improving the quality of real-time
3D graphics, one of the fundamental challenges in delivering interactive
3D content remains: increasing performance given limited increases in
memory. Memory and graphics bus bandwidth remain as critical factors
in determining graphics performance and quality. GeForce3 incorporates
a number of revolutionary advances in graphics architecture that dramatically
improve the GPUs efficiency with memory and bus bandwidth delivering
a new level of performance and image quality.
Bandwidth
Challenges
Real-time
3D graphics place a tremendous load on the entire PC architecture. The
nature of the graphics problem places strain on all aspects of a PCs
subsystems: the microprocessor, main memory, the graphics bus (typically
AGP), the graphics processing unit (GPU) and the GPUs frame buffer
memory. Different components of a graphics application stress various
components, which often results in the performance of a specific application
limited by one system component at a given instant in time and a different
component a fraction of a second later. The three key stressors of a
system are computational load, geometry computation, and pixel rendering.
The
3D Graphics Problem
Understanding how graphics applications work is key to understanding
the various challenges in improving graphics performance and bandwidth
efficiency. A typical graphics application such as an interactive video
game has four main components: game logic, scene management, geometry
calculations, and pixel rendering. Each one of these is discussed below.
Game
Logic
Compelling, interactive 3D applications require several elements to
keep users interested and entertained. Game logic, physics, artificial
intelligence (AI), networking, interactivity, sound, and other non-graphics
functions are some examples, and are all elements of the primary game
engine code. The key to great content is delivering an engaging interactive
experience. In order to create this experience, developers will allocate
a majority of the central processing units (CPU) processing power
to tasks that directly create these elements of the user experience.
To the extent that other aspects of the graphics application can be
offloaded from the CPU, more CPU power can be dedicated to those elements.
With todays modern GPUs, (like the GeForce2 GTS and GeForce3)
much of the graphics problem is offloaded from the CPU,
leaving more of the CPU to create compelling interactive experiences.
Scene Management
In order
for graphics to be interactively rendered, a database describing the
3D world and every single object in that world must be created.
Typically these databases are very large, sometimes containing hundreds
of megabytes, or even gigabytes of data. Rendering and displaying all
of this data is simply not practical, even on high-end multiprocessing
graphics supercomputers, so this task must be simplified. The graphics
application must calculate what portion of the world or
database isgoing to be processed, or rendered, at a given time. This
process of calculating what portion of the database will be rendered
at a time is commonly called scene management. A variety of techniques
are typically used, all of which require tradeoffs between computational
cost, memory requirement, and accuracy. Algorithms that minimize the
amount of scene data required to render a frame exist, but are typically
too computationally expensive for practical use. Hence, most graphics
processors actually end up processing many times the amount of data
than is actually displayed on the computer screen. Increasing the efficiency
of the scene management processing can improve the performance of some
graphics processors, but often comes at the cost of increasing the CPU
load for these functions, which can detract from the processing power
available for the game logic.
Geometry
Calculations
Once the
application calculates what portion of the scene to process (or render),
the application passes that subset of its database to the geometry pipeline
of the graphics application. Historically the geometry processing of
graphics applications took place on the CPU as well. These computations
typically involved transforming the geometry and lighting it. These
calculations have recently been handed over to modern graphics processing
units, beginning with NVIDIAs groundbreaking GeForce 256TM and
continuing with subsequent NVIDIA processors. By offloading the geometry
burden from the host processor, more of the CPU is made available for
game logic. Simultaneously, modern GPUs such as NVIDIAs GeForce
family of graphics processors, can process many times the geometry data
of even the fastest CPUs. By processing more geometry data, visual quality
can be dramatically improved.
The
Geometry Bandwidth Problem
In order to describe scenes with richness and
enough detail to create a compelling environment, content developers
have been increasing the geometric detail in their scenes at an incredible
rate. With the introduction of the GeForce 256 graphics processing unit,
much of the computational load for this function was moved from the
CPU to the GPU. This shifting of the computational load to the GPU was
a key factor in allowing content developers the freedom to move from
hundreds of polygons per frame to hundreds of thousands. These rich
scenes, while orders of magnitude more visually compelling, are also
incredibly bandwidth intensive. With a typical scene of 100,000 polygons,
each composed of three vertices, 300,000 vertices per frame is common.
Each vertex can typically contain 50 bytes or more of information, for
things like color, position, lighting, texturing, and shading information.
Hence, it is common for each frame to contain 15 Mbytes of geometric
information. While an individual frame certainly would not stress even
a basic PC systems bus, the requirement to run this type of load
at 60 frames per second makes this challenge daunting, as the 900 Mbytes/sec
of bandwidth required for such a task will push every aspect of the
PC to its limits. One challenge facing todays PC architectures
with these types of loads is the communication between the host CPU,
and todays GPUs. The link between those two systems is commonly
Intels AGP, or accelerated graphics port. PCI (peripheral component
interconnect) is the second most common. The most advanced implementation
of AGP today is AGP 4X. The AGP specification calls for a point-topoint
connection between the host and the graphics processor; hence this interface
is not shared with other devices. While a private interface certainly
helps to address the issue of bandwidth between the two systems, even
the 1.0GB/sec of bandwidth offered by AGP 4X is not sufficient for geometry-rich
scenes. NVIDIA has developed several unique solutions to address this
geometry bandwidth problem. The first is high-order surfaces.
Higher Order Surfaces
Traditionally the fundamental building block of real-time 3D graphics
has been triangles. Artists used collections of triangles, each built
from three vertices (the corners of triangles), in order to build 3D
objects. The challenge with this approach is that in order to create
objects with rich detail, or smooth curves, the artist is forced to
use an ever increasing number of triangles to get the fine levels of
detail, or to get curved edges to appear smooth.
Higher
order surfaces allow developers to create objects using curves defined
by control points. A curve or surface defined with a set of control
points is called a spline. While there are a number of different types
of splines, the important thing is that by using a spline and a few
control points, you can create fairly complex, smooth curved surfaces.
Joining splines together allows a designer to create complex curved
surfaces that are difficult to create by just using triangles.
GeForce3 supports these curved surfaces in hardware, allowing for a
much more efficient description of complex geometry without an every
increasing number of triangles. By describing surfaces with control
vertices, effectively the surface is being described by a formula, instead
of thousands or
millions of discreet values. The GeForce3 graphics processor is capable
of processing these high order surfaces in hardware and in real time,
essentially accepting these small, highly efficient formulas describing
the geometry from the AGP bus, and then processing those formulas to
create the geometry on the graphics processor.
The benefits of high order surfaces are clear: much higher performance
and image quality, particularly for scenes equiring smooth curves (such
as columns to support the roof of a temple), and much more efficient
use of hegraphics bus. By transmitting only 16 control points, the GeForce3
graphics processor is able to generate the quivalent of hundreds of
thousands of polygons worth of geometric data, effectively offering
hundreds, or even thousands of times the efficiency of transmitting
that triangular geometry data across the bus. The result. Better performance
more of the time.
The Pixel Bandwidth Problem
To fully grasp the challenges of rendering a realistic 3D world requires
an understanding of some basic 3D graphics concepts and terminology.
A reference of useful terms can be found in the appendix at the end
of this paper.
Calculating Pixel Memory Bandwidth
Traditional graphics architectures render pixels by reading from and
writing to color and z-buffers, and accessing texture data. They do
this for every pixel they render, regardless of the pixels visibility.
Most graphics applications today actually render each pixel two to three
times per frame, as objects often occlude or hide, other
objects. A simple example would be a game with a background and a character
in the foreground. Taken in its most basic form, such a scene would
have a depth complexity of two, with the pixels of the background being
hidden by the character in the foreground.
Rendering a single pixel once requires the graphics processor to read
the color buffer, to discover the previous value, to read the z-value
to determine the depth in the scene for the pixel, and to read the texture
data necessary to texture map that pixel. Once the pixel is generated
it requires writing the new (potentially blended) color value to the
color buffer, and potentially writing the new z-buffer value. In the
32-bit depth rendering case, each of these operations requires 32-bits,
or 4-bytes of data per access. So:
Color
Read
|
+
|
Z-Read
|
+
|
Texture
Read
|
+
|
Color
Write
|
+
|
Z-Write
|
|
4
bytes
|
+
|
4
bytes
|
+
|
4
bytes
|
+
|
4
bytes
|
+
|
4
bytes
|
=
20 bytes
|
This
calculation assumes that the graphics processor is fetching one 32-bit
texel per pixel, which makes the assumption that the remainder of texels
(necessary to perform bilinear filtering) are already resident on-chip
in the texture cache. 20 bytes may not seem like a lot of data, but
when the complete frame is rendered 2.5 times per pixel (the average
depth complexity) a more bandwidth intensive picture begins to emerge.
Assume a resolution of 1024 pixels by 768 pixels.
Horizontal
Resolution X
|
Vertical
Resoulution X
|
Depth
Complexity
|
20
bytes/pixel
|
1024
bytes/frame
|
768
|
2.5
|
20
= 39,321,6000
|
39.3
Mbytes per frame
|
60
frames per second
|
=
2.4 GB/sec
|
|
Rendering
higher resolutions, higher frame rates, or higher depth complexity can
have a dramatic impact on memory bandwidth requirements. Moving the
resolution up to 1600 x 1200 pixels:
Horizontal
Resolution X
|
Vertical
Resoulution X
|
Depth
Complexity X
|
20 bytes/pixel
|
1600
bytes/frame
|
1200
|
2.5
|
20=
96,000,000
|
96
Mbytes per frame
|
60
frames per second
|
=
5.8 GB/sec
|
|
Such
tremendous amounts of memory bandwidth can only be accomplished with
wide memory systems (128-bits) and high-speed memories. Today, typically
double data rate, or DDR, memory is used. Even with such advanced memory
subsystems, frame buffer bandwidth is one of the key limiters to increasing
the resolution and/or frame rate of graphics applications. By increasing
the efficiency in which the graphics processor renders pixels, dramatic
improvements in performance can be achieved without increasing the memory
bandwidth of the frame buffer. By improving the speed of
the frame buffer (and hence memory bandwidth) and improving the efficiency
in which pixels are rendered, dramatic breakthroughs in performance
and visual quality become possible. GeForce3 implements both techniques
to deliver such a breakthrough.
GeForce3 Pixel Memory Bandwidth Breakthrough
GeForce3 implements many patent pending technologies to improve the
efficiency at which it renders pixels. Three of these key technologies
are a crossbar-based memory controller to improve the efficiency of
access to the frame buffer, lossless z-buffer compression, and to reduce
the drawn depth complexity, and thus reduce the number of pixels that
must actually read from and write to the frame buffer.
Crossbar Memory Controller
The memory controller is perhaps one of the most critical components
of any graphics system. Because 3D graphics are so dependent upon memory
bandwidth, the memory controller is at the crux of the bottleneck for
improving performance. Besides the GPU, the other major component of
a graphics system is the frame buffer. The frame buffer, which is the
memory attached directly to the graphics processor, holds information
such as color, depth values, textures, and geometry, and is typically
the highest bandwidth memory system in a personal computer. Unfortunately
it is the most expensive part of a typical graphics system, often accounting
for 50% of the cost of the product or more. Hence, it is critical to
make the most efficient use of this expensive resource that is possible.
Traditional memory controllers have reached the point where they are
reasonably efficient with basic loads, getting greater than 50% of the
peak memory bandwidth from the frame buffer under most conditions. In
todays double data rate (DDR) based designs, a typical 128-bit
memory controller will actually access information in 256-bit chunks
(Since DDR transfers twice the information in a single access). While
it would seem that transferring large amounts of data in large blocks
is generally optimal, in fact, with complex scenes with hundreds of
thousands of polygons per frame, the reality is actually quite different.
Under conditions common in the latest generation of interactive content
the size of the average triangle (the fundamental building block of
all real-time graphics) can be very small, sometimes only a few pixels.
If a triangle is perhaps 2 pixels in size, and is composed of 32 bits
of color or z for each pixel, the total amount of data for that triangle
would be 32 bits x 2 pixels, or 64 bits. If memory controllers access
information only in 256-bit chunks then much of this access
would be wasted, as this payload or amount of data being
transferred would essentially waste much of the frame buffers
potential bandwidth. In this example, a traditional 128-bit memory controller
would be only 25% efficient, wasting 75% of the memory bandwidth.
GeForce3 implements a radical crossbar memory controller that is optimized
for accessing the frame buffer with a fine granularity access pattern,
with up to 64-bits of individual access, ensuring that each individual
access is completely efficient, thus ensuring that no fraction of the
frame buffers bandwidth is wasted. While the memory controller
itself is still capable of accessing 256 bits of information in an individual
clock cycle, the efficiency of each of those accesses is nearly perfect,
keeping all aspects of the graphics processor and its frame buffer
fully utilized for maximum performance.

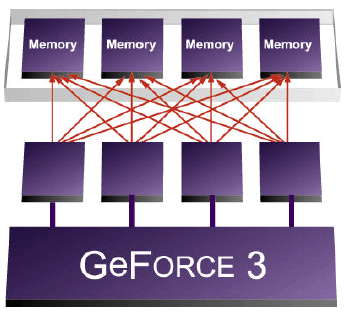

It does
this by effectively implementing four independent memory controllers,
each of which communicate with each other and the rest of the graphics
processor. This complex system continuously load balances itself to
ensure that every aspect of the memory system is balanced and that all
memory requests by the graphics processor are handled properly. Under
complex loads, typical of next generation content, the GeForce3 crossbar
memory controller can be up to four times as efficient as previous less
intelligent designs.
Lossless Z Compression
The z-buffer represents the depth or visibility information for the
pixels ultimately to be displayed after being rendered. Traditional
graphics processors read and potentiallywrite z data for every pixel
they render, making z-buffer traffic one of the largest consumers
of memory bandwidth in a graphics system. By implementing an advanced
form of 4:1 lossless data compression the memory bandwidth consumed
by z-buffer traffic is reduced by a factor of four. This z compression
is implemented in hardware transparently to applications, with both
compression and decompression taking place in real time by the Lightspeed
Memory Architectures z-compression/decompression engines. Because
this compression is completely lossless there is no reduction in image
quality or precision. The result of this technology is a dramatically
more efficient use of memory bandwidth for dramatically improved performance
with no compromise in image quality.
Visibility Subsystem: Z-Occlusion Culling
As previously discussed, traditional graphics architectures render every
pixel of every triangle as it receives them, accessing the frame buffer
with each pixel to determine the appropriate values for the color and
z (or depth) for each of those pixels. This method produces correct
results, but requires all of the pixels to be rendered, regardless of
their visibility or not. Typical content today has an average depth
complexity of two, which means that for every pixel that ends up being
visible, two pixels have to be rendered (on average) to come up with
that result. This means that for every visible pixel, the graphics processor
is forced to access the frame buffer twice, spending valuable frame
buffer bandwidth essentially rendering pixels that the viewer will never
see.
GeForce3 implements a sophisticated z-occlusion culling technology,
whereby it attempts to determine early if a pixel is going to end up
being visible. If a pixel is going to be occluded and the z-occlusion
culling unit determines this, the pixel is not rendered, the frame buffer
is not accessed, and the frame buffer bandwidth is saved. Depending
on the depth complexity of the scene this can mean tremendous improvements
in efficiency. With todays content, averaging a depth complexity
of approximately two, this technique could reduce bandwidth requirements
by 50%. With next generation content approaching depth complexities
of four or more, the benefits can be tremendous, with up to a four times
improvement in memory bandwidth efficiency.
An additional technique, which developers can employ, is an occlusion
query. Essentially, the application makes a request of the graphics
processor to render a bounding box or region to test for visibility.
If the GPU determines that the region is going to be occluded, then
all the representative geometry and rendering representing that region
can be skipped over, potentially offering an order of magnitude increase
in fill rate. Characters behind walls, or scenery outside of a tunnel
can simply be occlusion queried and skipped over, without
spending precious memory bandwidth or GPU processing time to render
them.
These two key technologies effectively amplify the bandwidth of an GeForce3
graphics processor, both by getting dramatically more efficiency from
the memory bandwidth offered by the frame buffer, and by making more
efficient use of the frame buffer by avoiding having to access it for
pixels that would not be visible. In some cases each of these benefits
can demonstrate as much as four times the performance of previous architectures,
while in practice the typical benefit of these memory bandwidth amplification
technologies averages a 50%-100% improvement.
GeForce3 Lightspeed Memory Architecture
GeForce3 brings an array of technology to bear on the challenge of memory
bandwidth. By representing complex geometry as a high-order surface
and performing those surface calculations entirely on the GPU, GeForce3
is able to avoid transmitting tremendous amounts of triangle data across
the AGP bus, ensuring that communication between the host and the GPU
can continue in an efficient and high performance manner. By attacking
the pixel bandwidth problems in a variety of ways, GeForce3 brings a
tremendous leap in memory bandwidth efficiency to PC graphics. The combination
of the most efficient and sophisticated crossbar-based memory controller
ever built for PC graphics, advanced lossless z compression for reduced
bandwidth consumption, and a highly advanced method to avoid rendering
and spending bandwidth on non-visible pixels means that GeForce3 makes
twice the use of memory bandwidth than any previous traditional architecture.
These advances pave the way for an increasingly dynamic and visually
rich real-time 3D graphics experience. By improving the efficiency of
communication between the host and graphics, content developers can
continue to increase the geometric richness and visual complexity of
their scenes to new levels, unbound by the limits of the AGP bus. Rendering
at high resolutions, with high frame rates becomes the standard with
GeForce3, as its advances in pixel rendering and memory efficiency mean
that frame buffer bandwidth boundaries have been broken, paving the
way for the first time for highresolution, 32-bit rendering without
substantial performance penalties.
