Sculpted for the
next generation
of bronze power.
Introducing the EVGA B5 power supplies, the latest power supplies to carry
on the EVGA tradition of reliability, performance, and affordability.
Here are 5 Facts about the new flagship for
EVGA 80 PLUS Certified Bronze power supplies.
Fully Modular
Small-size
The B5 power supplies provide maximum flexibility for system builders with a fully modular design and a small chassis across all models. At 150mm length, the B5 power supplies provide solid, affordable power for all manner of system builds and cases.
safe & reliable
Japanese capacitors
Next, the B5 power supplies feature one of the most important standards for reliability - Japanese capacitors. Featuring 100% Japanese capacitors on the 850W and 750W models*, the B5 power supplies will provide a safe and reliable power for years to come.
*650W B5 and 550W B5 models use a Japanese main capacitor
Silent, long-lasting 135MM Fluid-dynamic bearing fan with Eco mode
The ultra-quiet 135mm Fluid-Dynamic Bearing fan becomes silent when coupled with EVGA ECO mode to turn off the fan in low to medium loads. The larger fan and carefully tuned profile creates a quieter experience than the B3 power supplies.
efficiency and regulation
designed for the modern pc

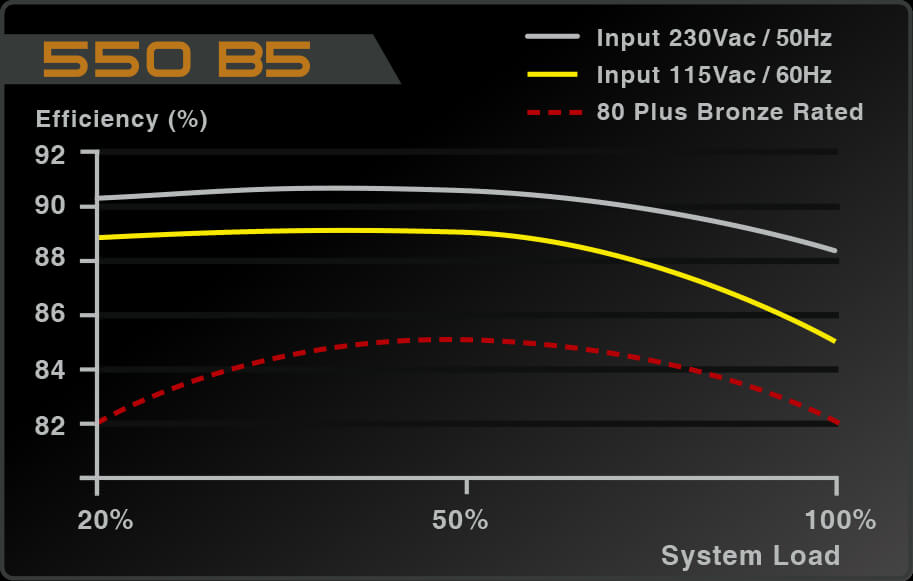

Featuring an LLC Resonant design + DC to DC converter, EVGA B5 power supplies are up to 89% efficient - well above 80 Plus Bronze requirements. Moreover, the B5 power supplies are designed with modern standards, including
ATX V2.52, for performance and stability.
EVGA 5 year limited warranty +
full suite of protections
- OCP - Over-Current Protection
- OPP - Over-Power Protection
- OTP - Over-Temperature Protection
- OVP - Over-Voltage Protection
- SCP - Short Circuit Protection
- UVP - Under Voltage Protection
Make the EVGA B5 Power supplies the
centerpiece of your next system.
- Coming Soon
Features
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 24A | 24A | 70.8A | 0.5A | 3.0A |
| 850W | |||||
| Combined | 120W | 850W | 6W | 15W | |
| Output Power | 850W | ||||
- Coming Soon
Features
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 24A | 24A | 62.5A | 0.5A | 3.0A |
| 750W | |||||
| Combined | 120W | 750W | 6W | 15W | |
| Output Power | 750W | ||||
- Coming Soon
Features
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 24A | 24A | 54.1A | 0.5A | 3.0A |
| 650W | |||||
| Combined | 120W | 650W | 6W | 15W | |
| Output Power | 650W | ||||
- Coming Soon
Features
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
| AC Input | 100-240V~, 10-5A, 60/50Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 24A | 24A | 45.8A | 0.5A | 3.0A |
| 550W | |||||
| Combined | 120W | 550W | 6W | 15W | |
| Output Power | 550W | ||||
