The GeForce RTX™ 2080 Ti K|NGP|N is not designed to not only be the fastest GeForce RTX™ 2080 Ti that EVGA offers...
...But the fastest GeForce RTX™ 2080 Ti, period.
Our Mission
The GeForce RTX™ 2080 Ti K|NGP|N is not designed to not only be the fastest GeForce RTX™ 2080 Ti that EVGA offers...
...But the fastest GeForce RTX™ 2080 Ti, period.
- The KINGPIN is sporting a 240 mm Hybrid cooling system, a first for any EVGA card
- Custom cooling designed in cooperation with Vince “K|NGP|N” Lucido
- 16+3 Phase VRM with extreme overclocking in mind
- 12 temperature sensors for comprehensive monitoring solution
- Built in OLED to show real-time card stats
- 11GB of Samsung 14GHz GDDR6 memory

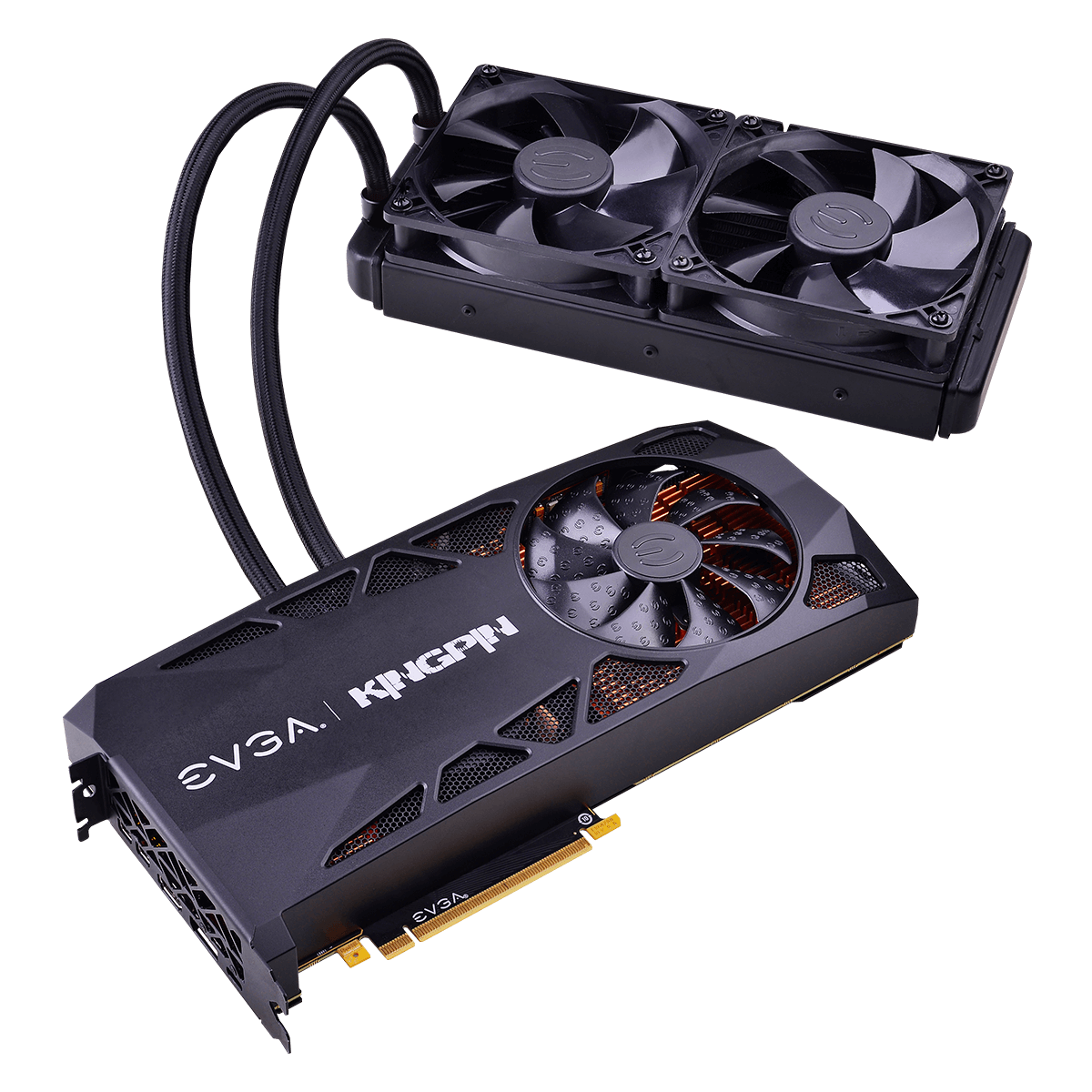

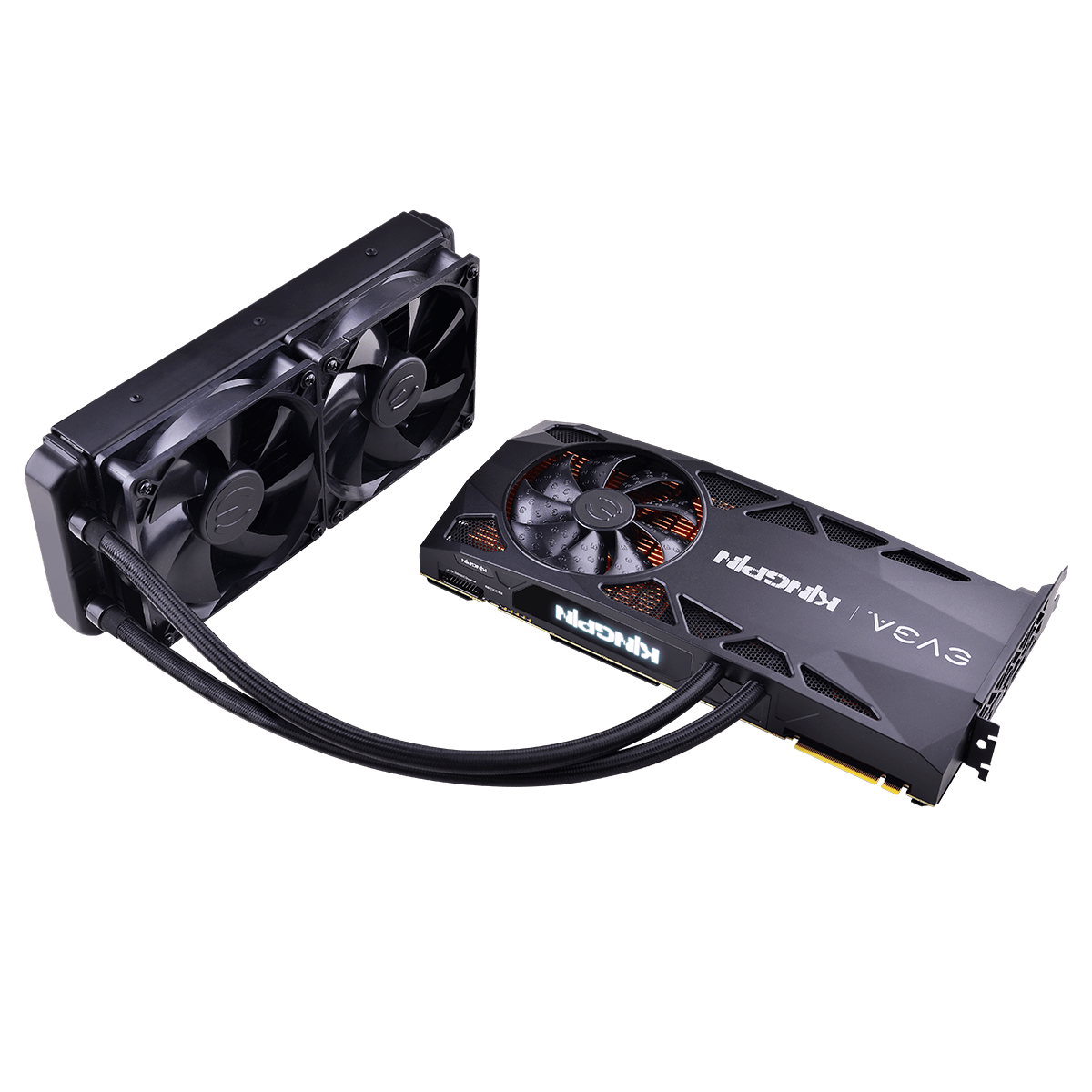

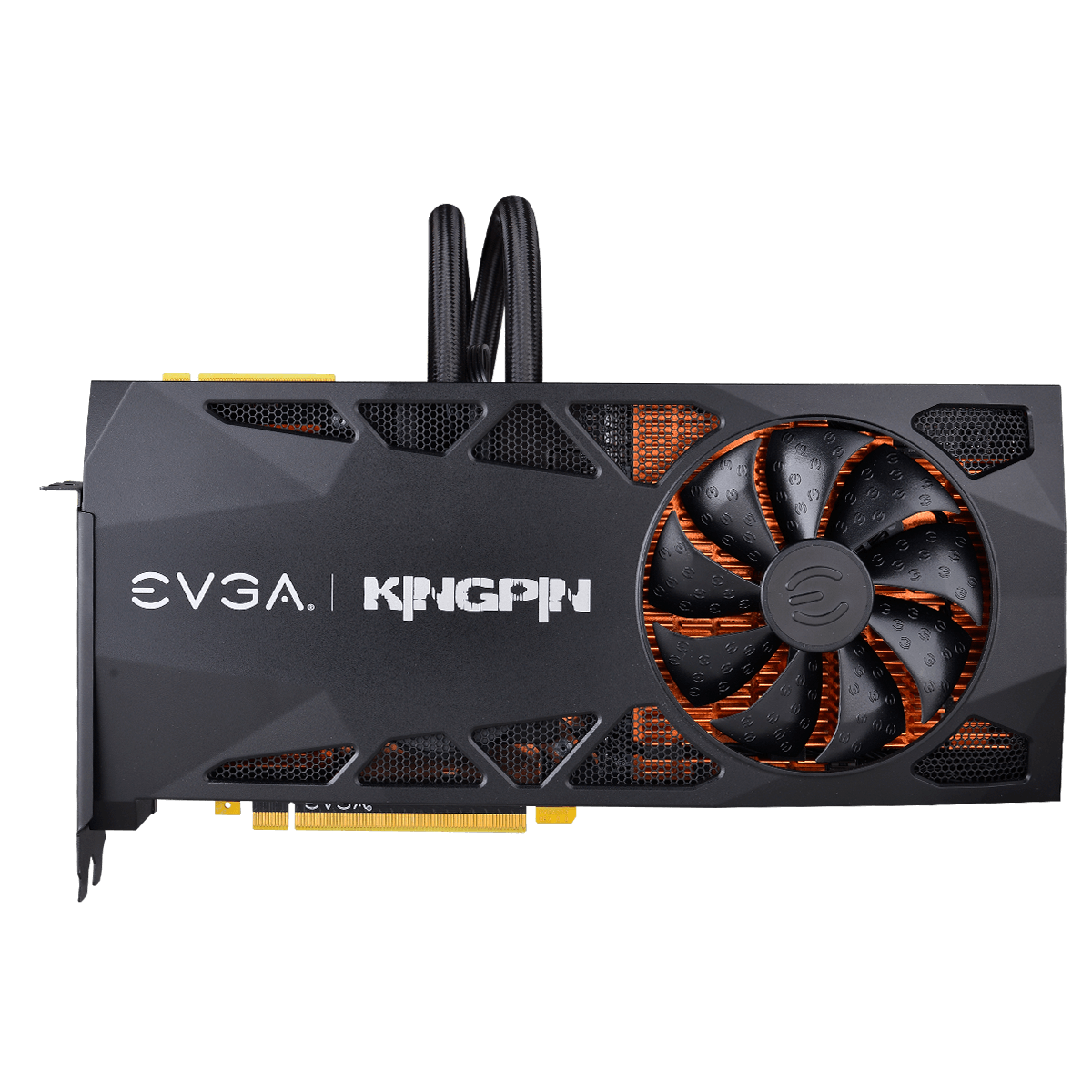

- The all new cooler is comprised for three fans and a new AIO
- A 100mm HBM fan mounted to a full metal heatsink

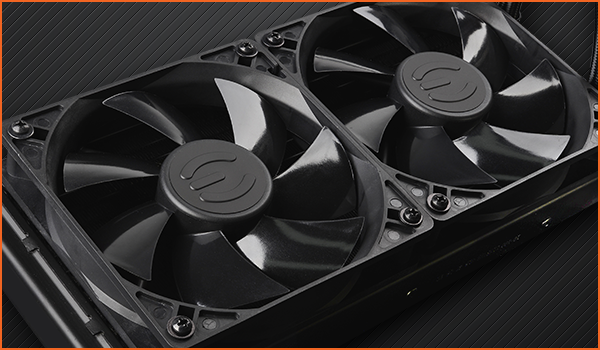

- Dual 120x120x25mm PWM fans w/ ~69.5 CFM rating each
- Asetek Gen 6 pump with direct die contact via a copper cold plate
- 240mm Radiator with 30mm thickness
- Modular VRM heatsink, allowing aftermarket GPU coolers

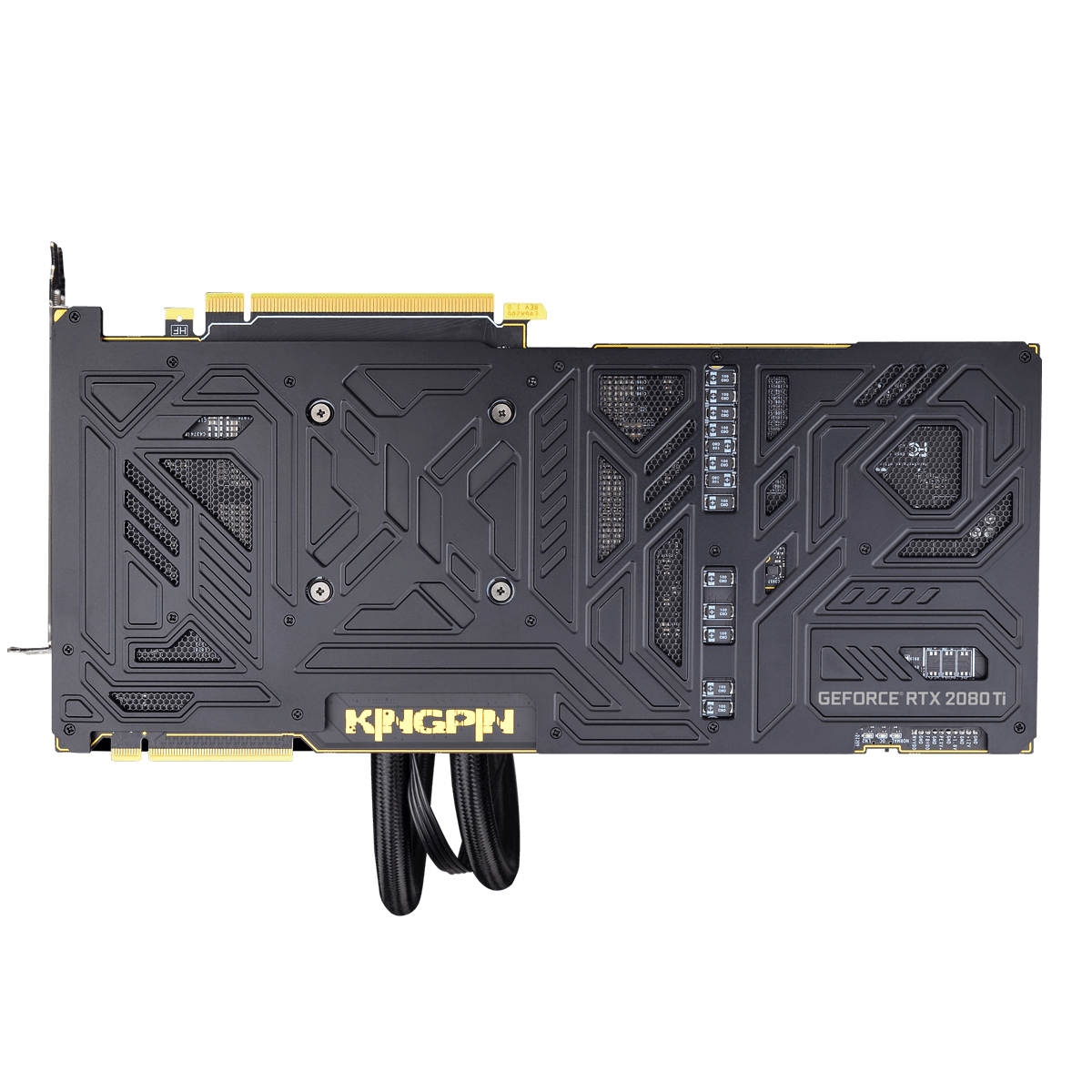

- All metal cooler shroud and backplate

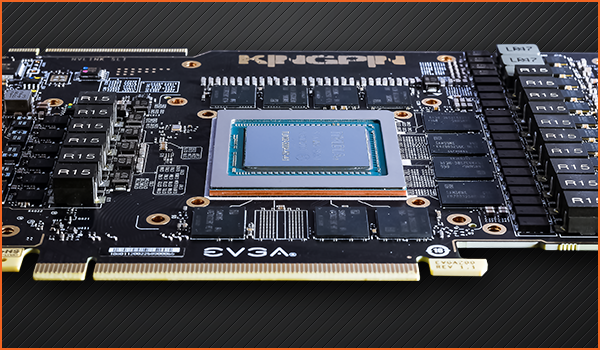

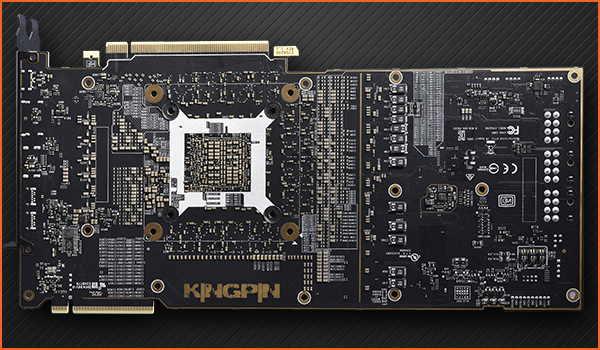

- PCB designed in cooperation with Illya “TiN” Tsemenko
- Custom low-loss 12-layer PCB

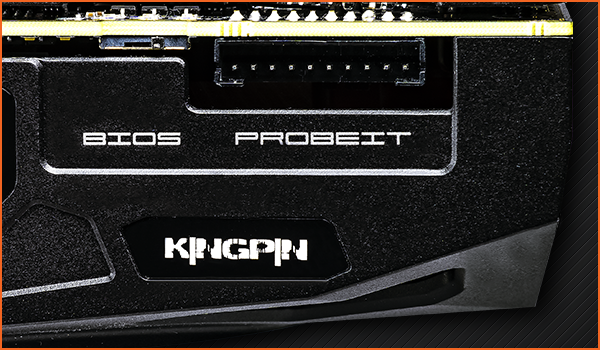

- Probe-It header to allow for real-time monitoring GPU voltages by DMM
- EVBot header allows for real-time power settings tuning
- Triple BIOS for Normal, OC and Extreme LN2 use profiles
- Array of 12 onboard iCX temperature sensors
- Integrated voltage monitoring with real-time OLED readout
- Diagnostic LEDs & Self-diagnostics for correct power and GPU operation

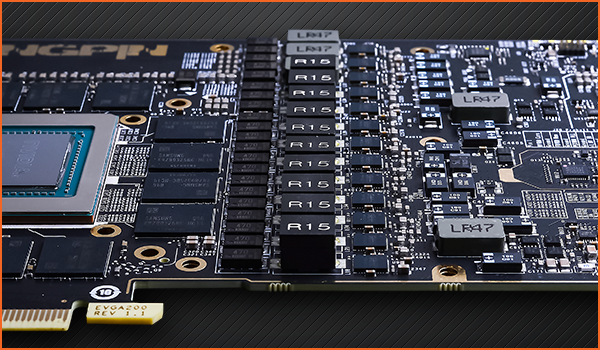

- 16+3 Phase VRM with Extreme overclocking in mind
- Dual MP2888A controllers
- 16 – MP86956 – 60 ampere Smart PowerStages for the GPU
- 3 – MP86956 – 60 ampere Smart PowerStages for the Memory
- PEXVDD single-phase digital control VRM

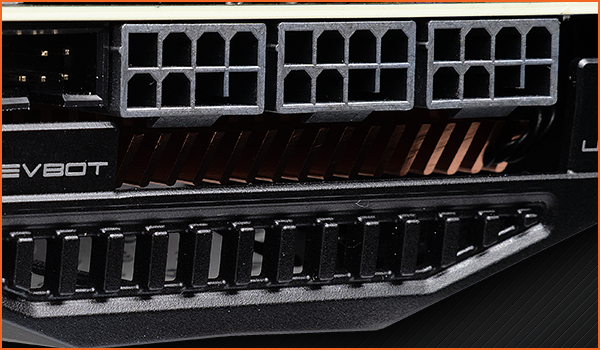

- Triple 8-pin +12V PCIe power connectors located on the edge for clean cabling
- Over 520 W TDP Rating with bundled VBIOS

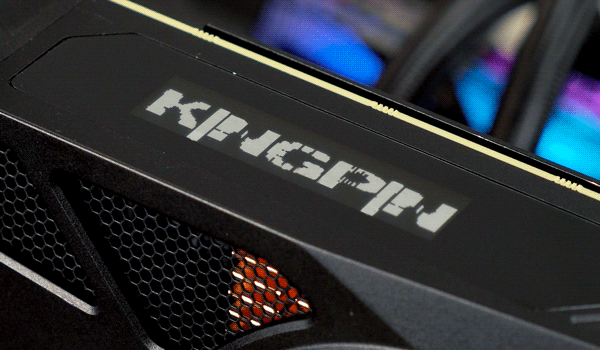

- Shroud OLED display
- Built into the shroud is a OLED Display to show real-time card stats and user messages
- Shows real-time Voltages, Temperatures, Clocks, Power Consumption, and GPU Utilization
- Show self-test and diagnostic results
- Monitor GPU junction temperature in wide range from -64 °C to +105 °C
- Optional LN2 benching kit with OLED bracket for enthusiast use with 3rd party cooling solution.

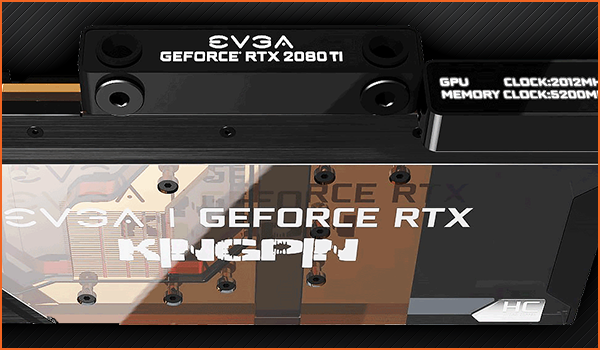

- EVGA Hydro Copper full-cover waterblock option
- Bundled additional OLED bracket module for Hydro Copper and real-time benchmark monitoring

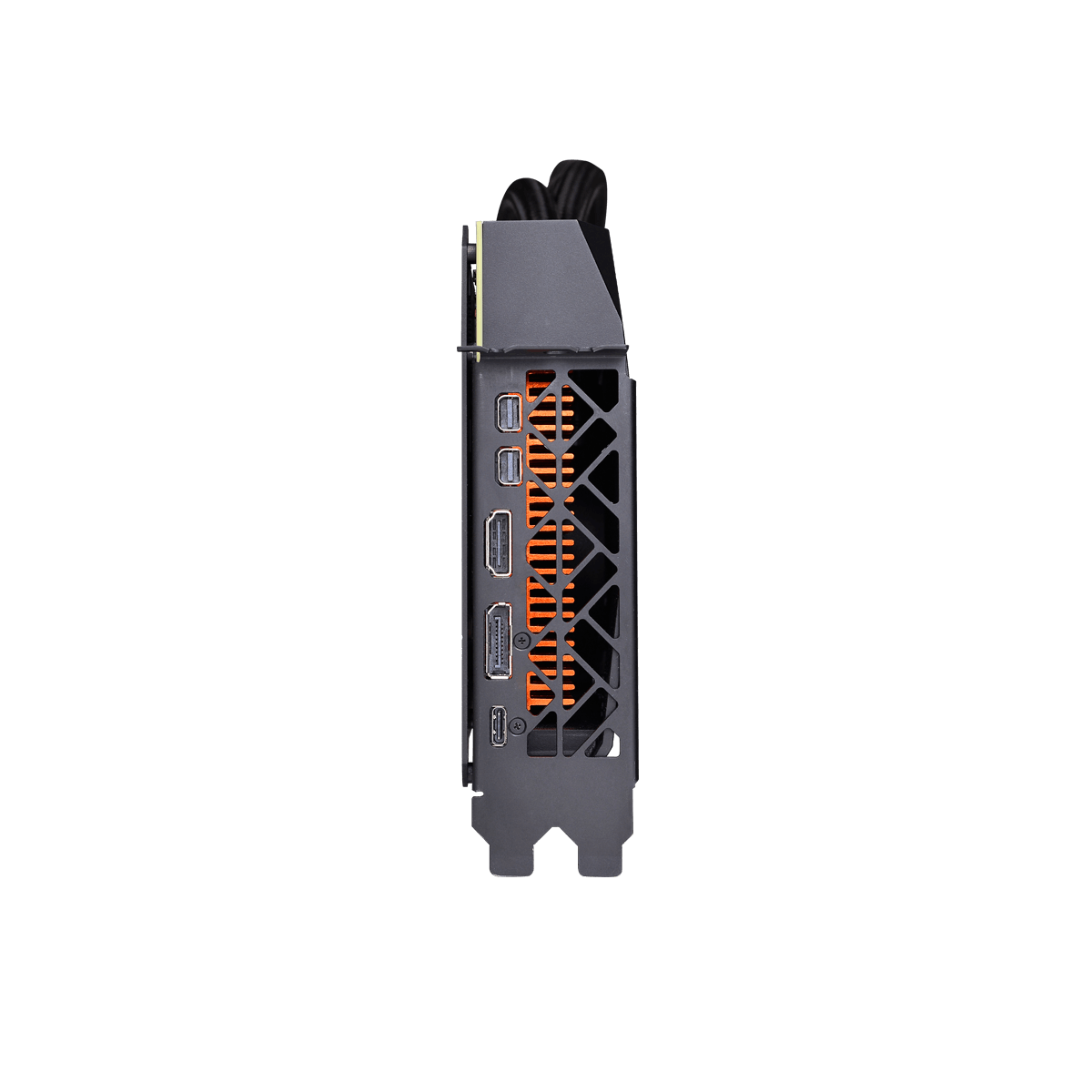

- Video out ports designed for use with single slot brackets
- Other features
- Fan header allows for PWM control of attached fan/s in EVGA Precision X1
- VirtualLink™ with USB Type-C I/O connector
