Some motherboard companies believe it is enough to tell you that their boards are fast. Others put enough RGB LEDs on their boards to make you think racing lights will make your board go faster. EVGA could have designed a board like those...or it could engineer the X299 Dark - a motherboard line renowned for being the top choice of the world's best overclockers. A motherboard that has already broken 12 World Records…so far:
1
RECORD

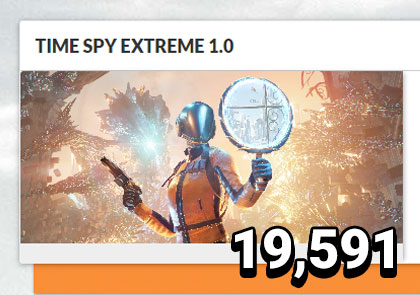

Timespy Extreme OVERALL WR
HOF 19,591
2
RECORD

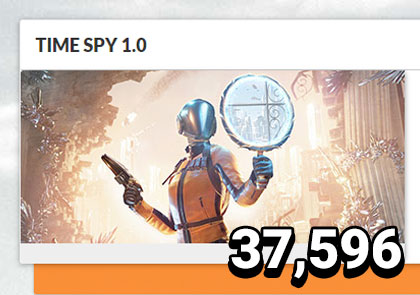

Time Spy Overall WR
HOF 37,596
3
RECORD

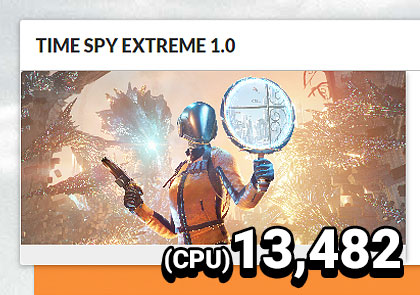

Time Spy Extreme Highest CPU Score
HOF 13,482
4
RECORD

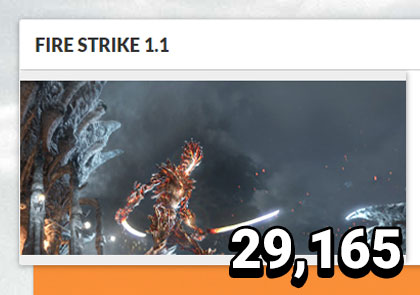

Fire Strike Physics Highest CPU Score
HOF 29,165
5
RECORD

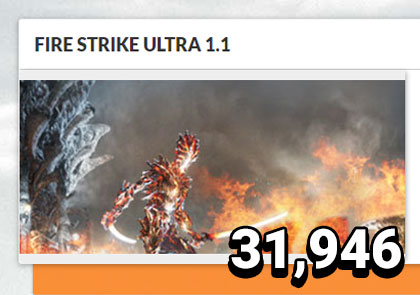

Fire Strike Ultra Overall WR
HOF 31,946
6
RECORD

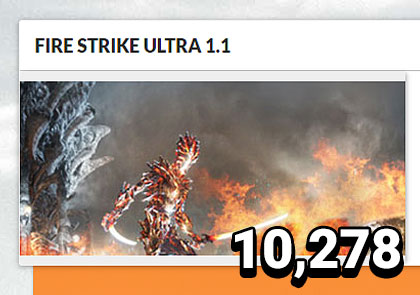

Fire Strike Ultra 1x GPU Record
HOF 10,278
7
RECORD

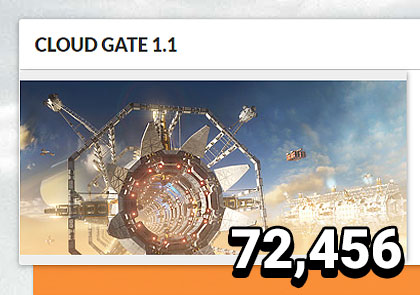

3DMark Cloud Gate Overall WR
HOF 72,456
8
RECORD

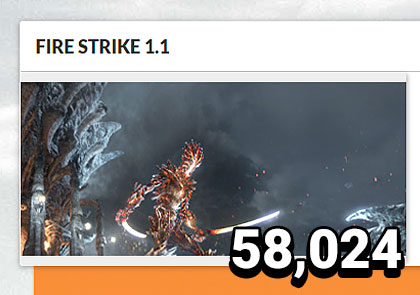

Fire Strike Overall WR
HWBOT 58,024
9
RECORD
Fire Strike 1x GPU Record
HWBOT 36,935
10
RECORD

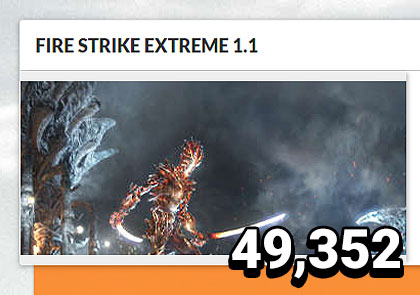

Fire Strike Extreme Overall WR
HWBOT 49,352
11
RECORD

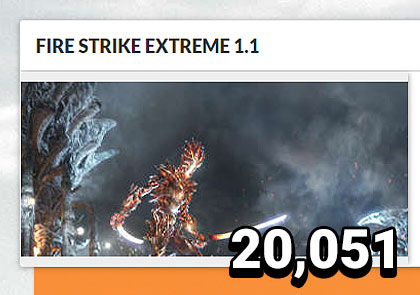

Fire Strike Extreme 1x GPU Record
HWBOT 20,051
12
RECORD

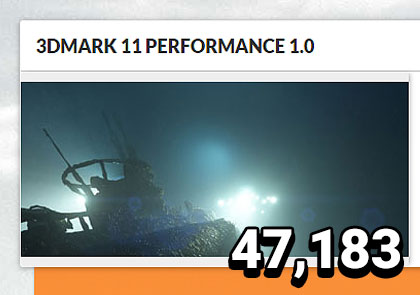

3DMark 11 1x GPU Record
HWBOT 47,183

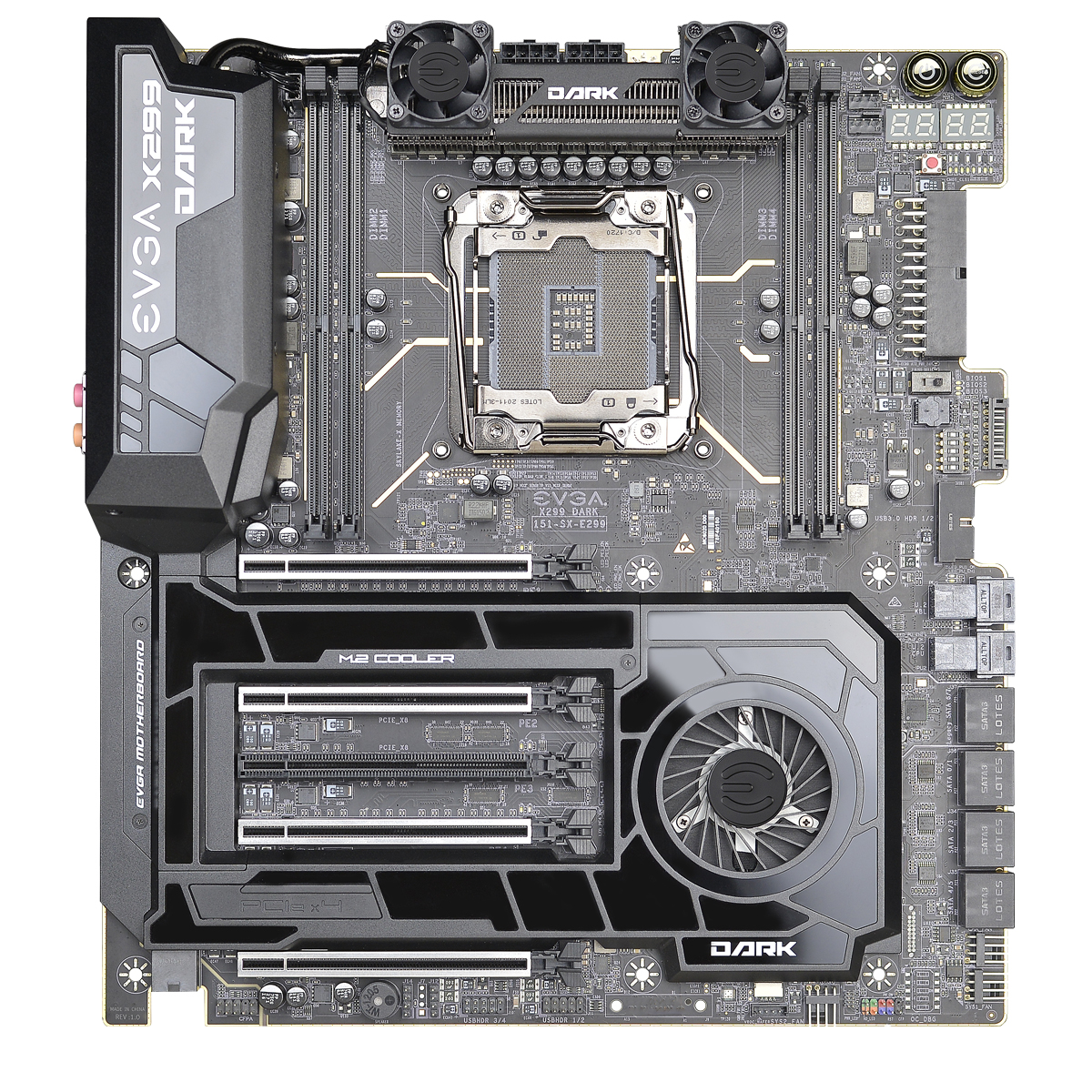

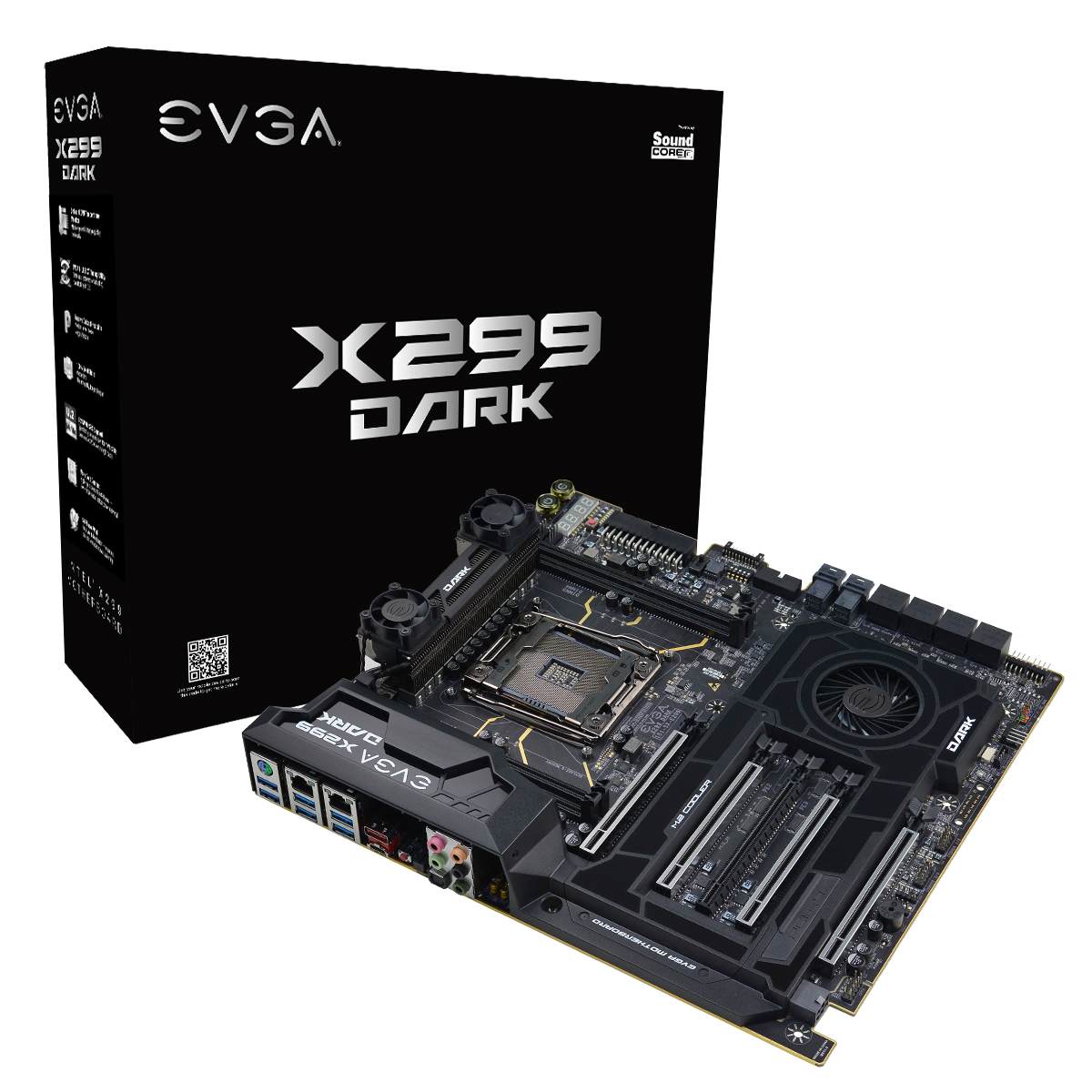

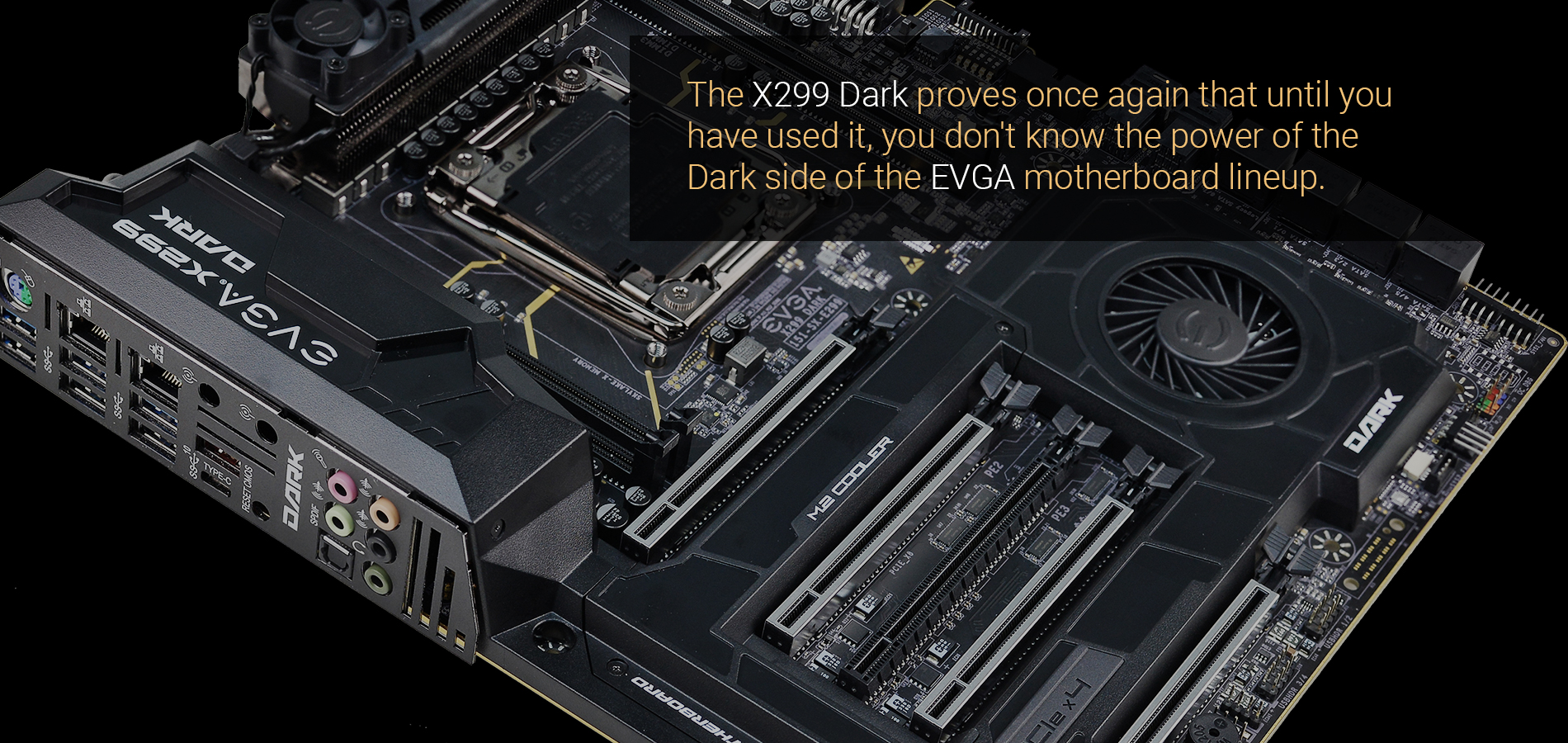

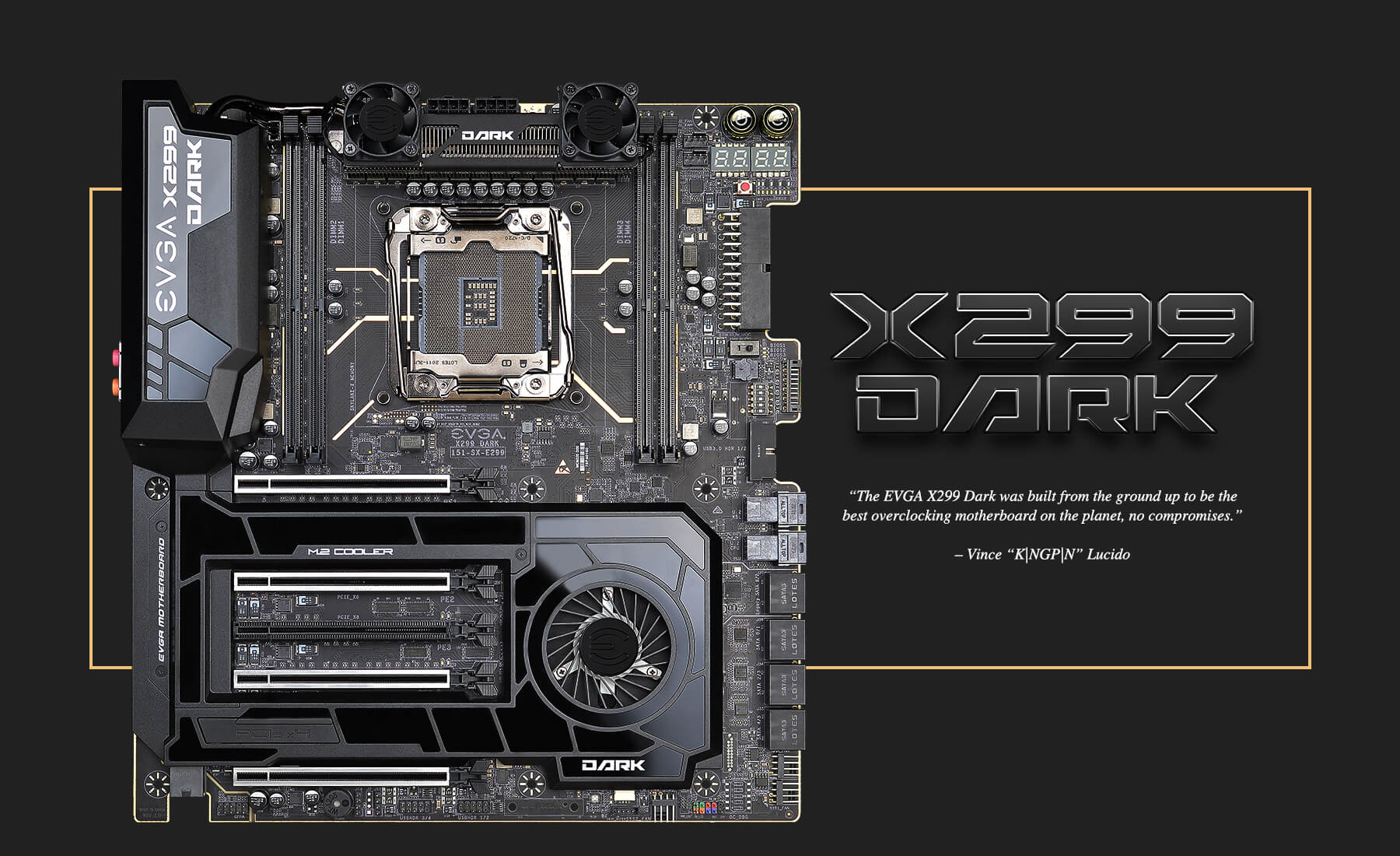

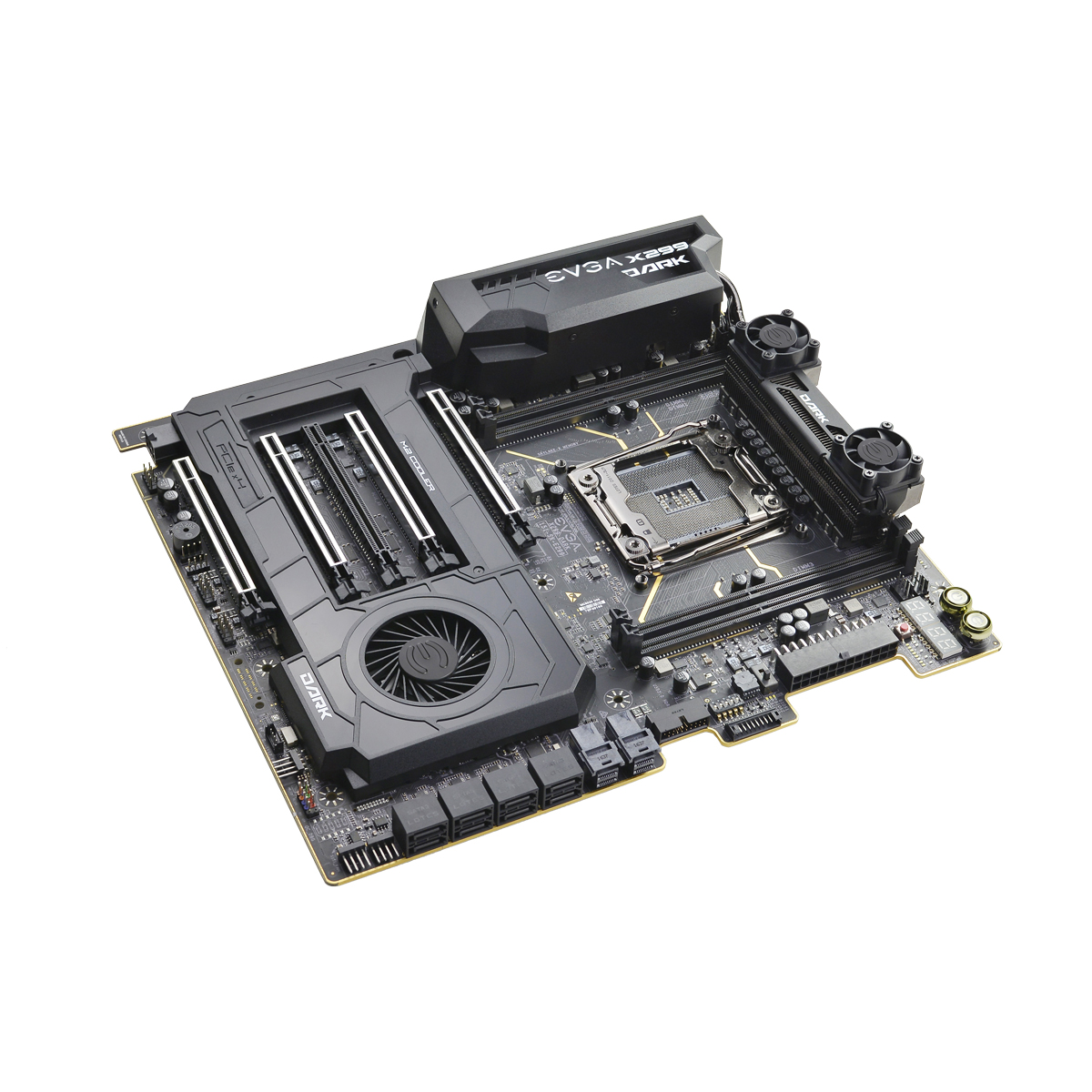

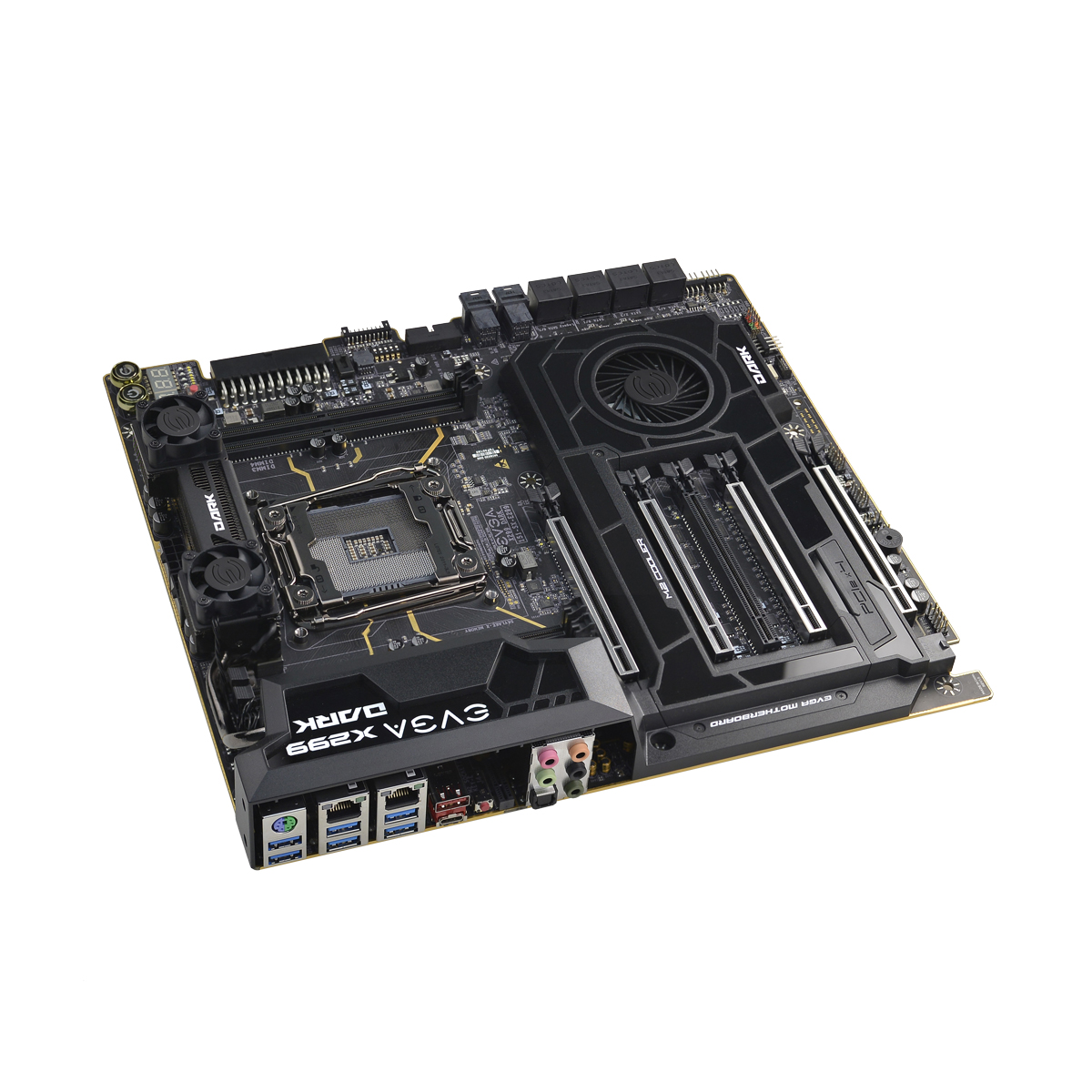

EVGA introduces you to the ultimate in raw performance for the next-gen Intel® Extreme lineup, the EVGA X299 Dark. The Dark is crafted from the ground up to be the performance apex with everything you need to make a record-breaking benching run or a 24/7 number cruncher, and nothing you don't – a board that is as reliable as it is fast. The EVGA X299 Dark has all of the current gen top-tier component support:

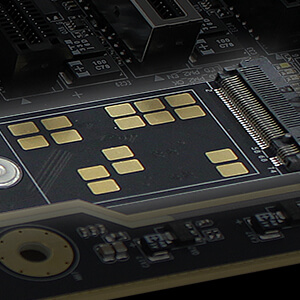

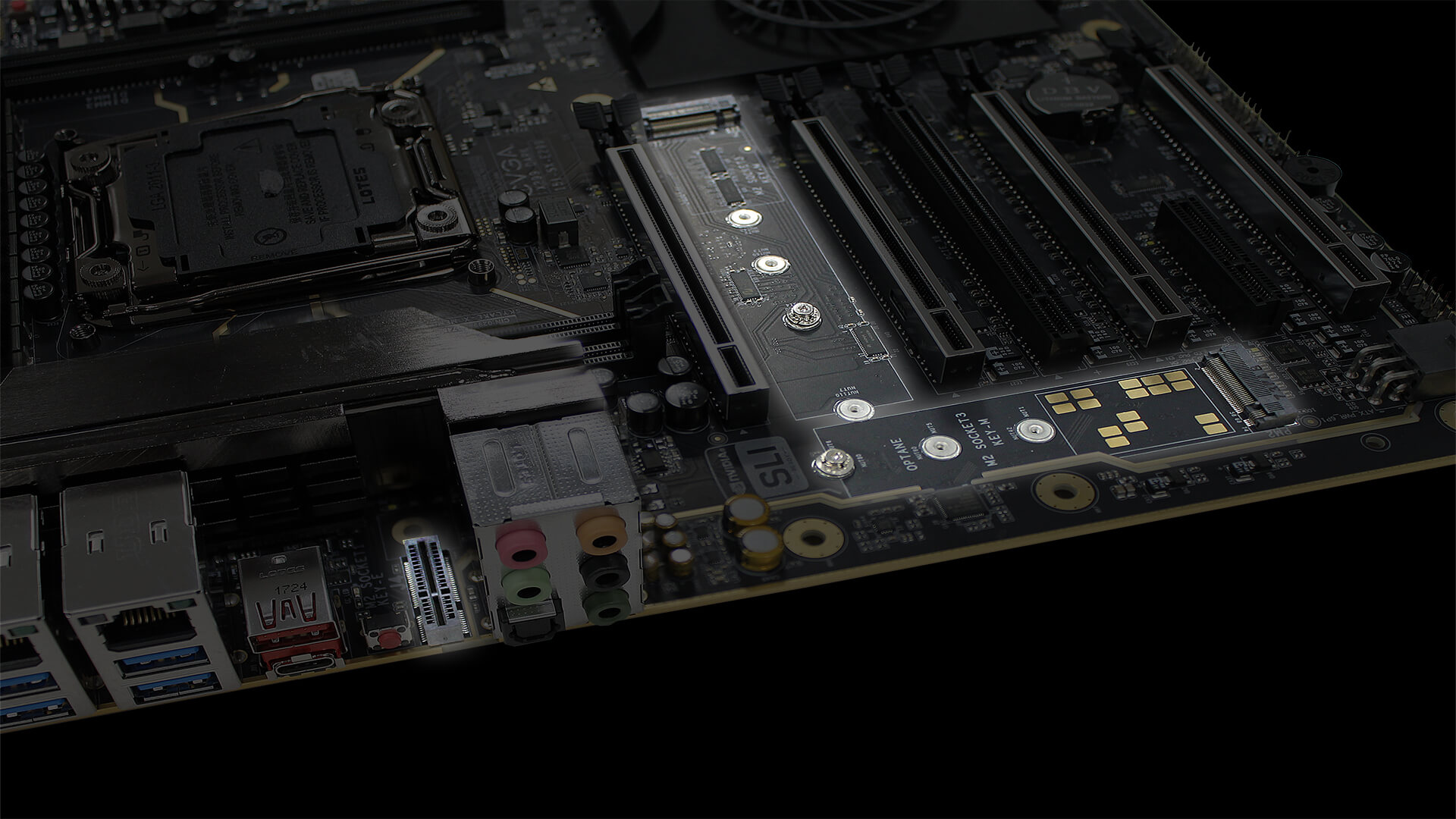

M.2 SUPPORT
2x M.2 Key-M slots / 1x M.2 Key-E slot

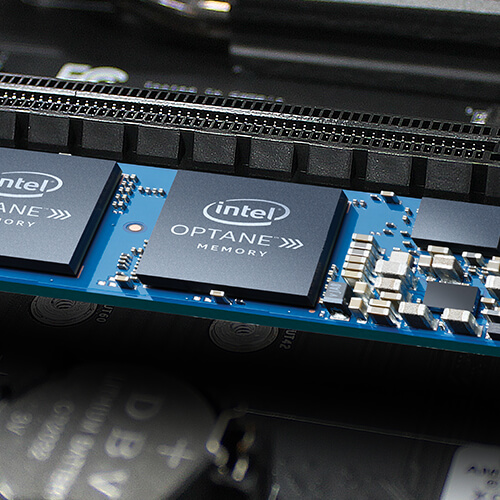

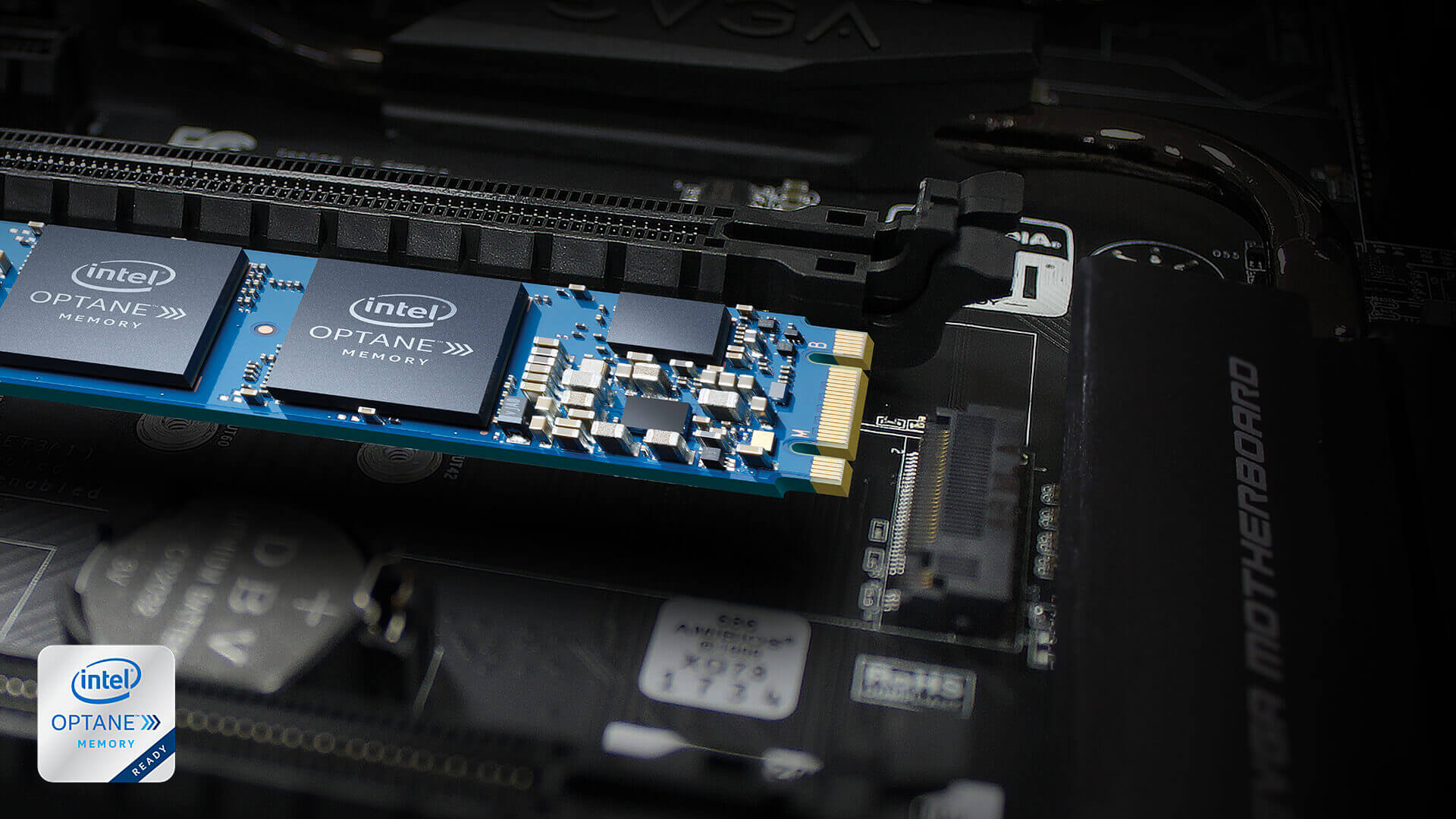

Intel® OPTANE™
Intel® Optane™ Memory Ready

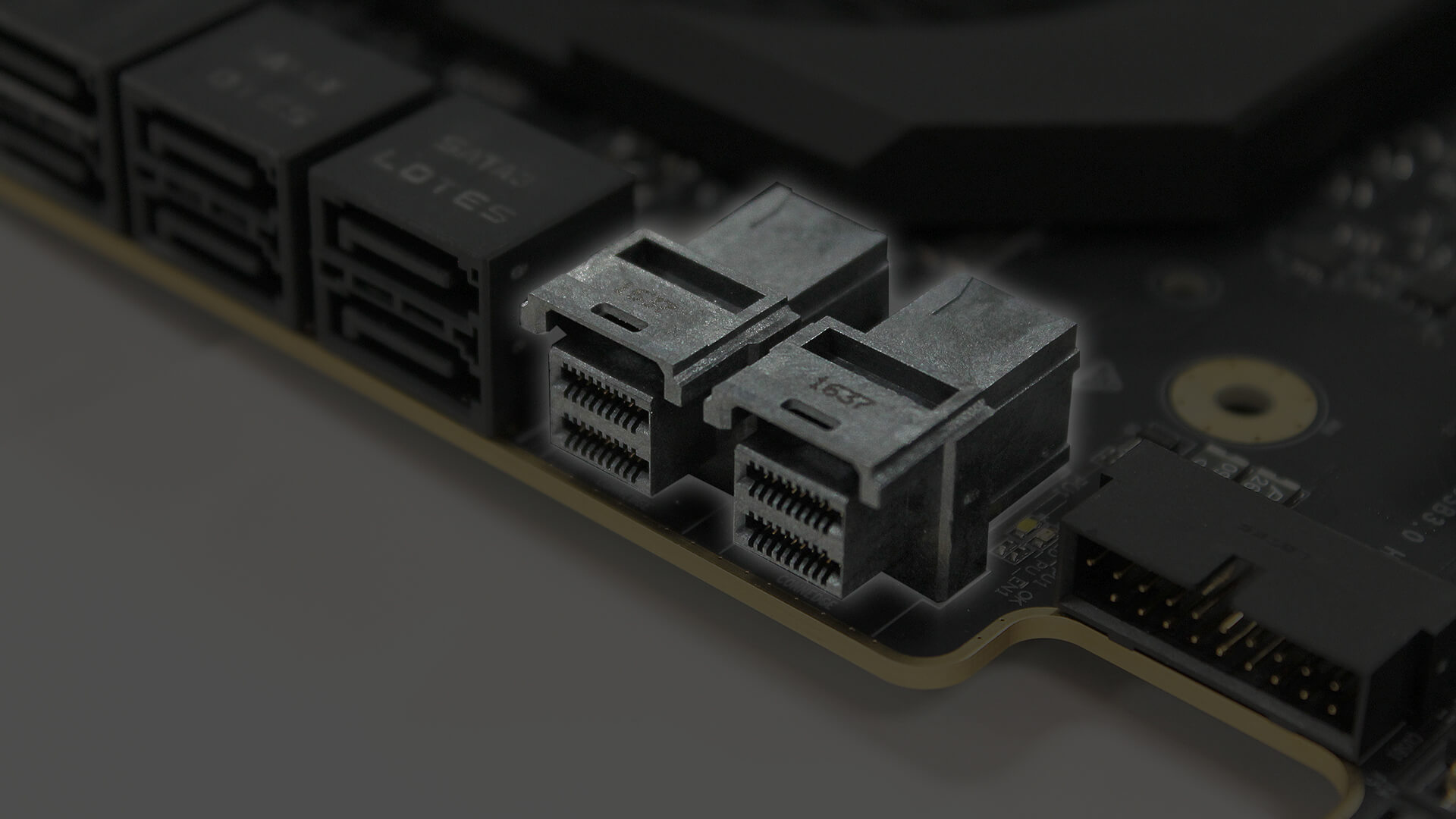

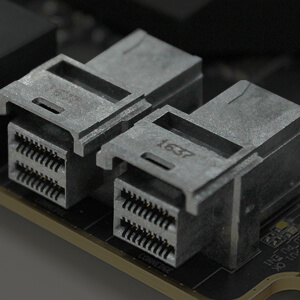

U.2
2x U.2 Ports

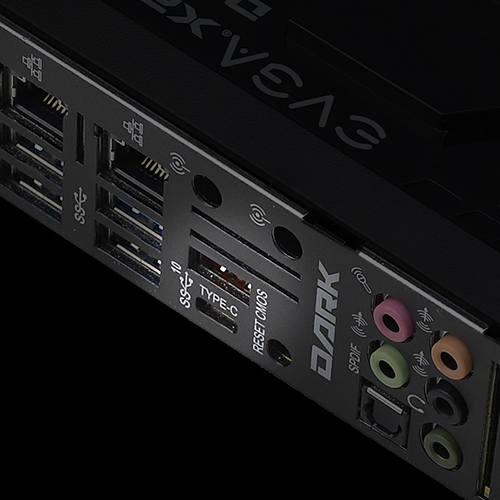

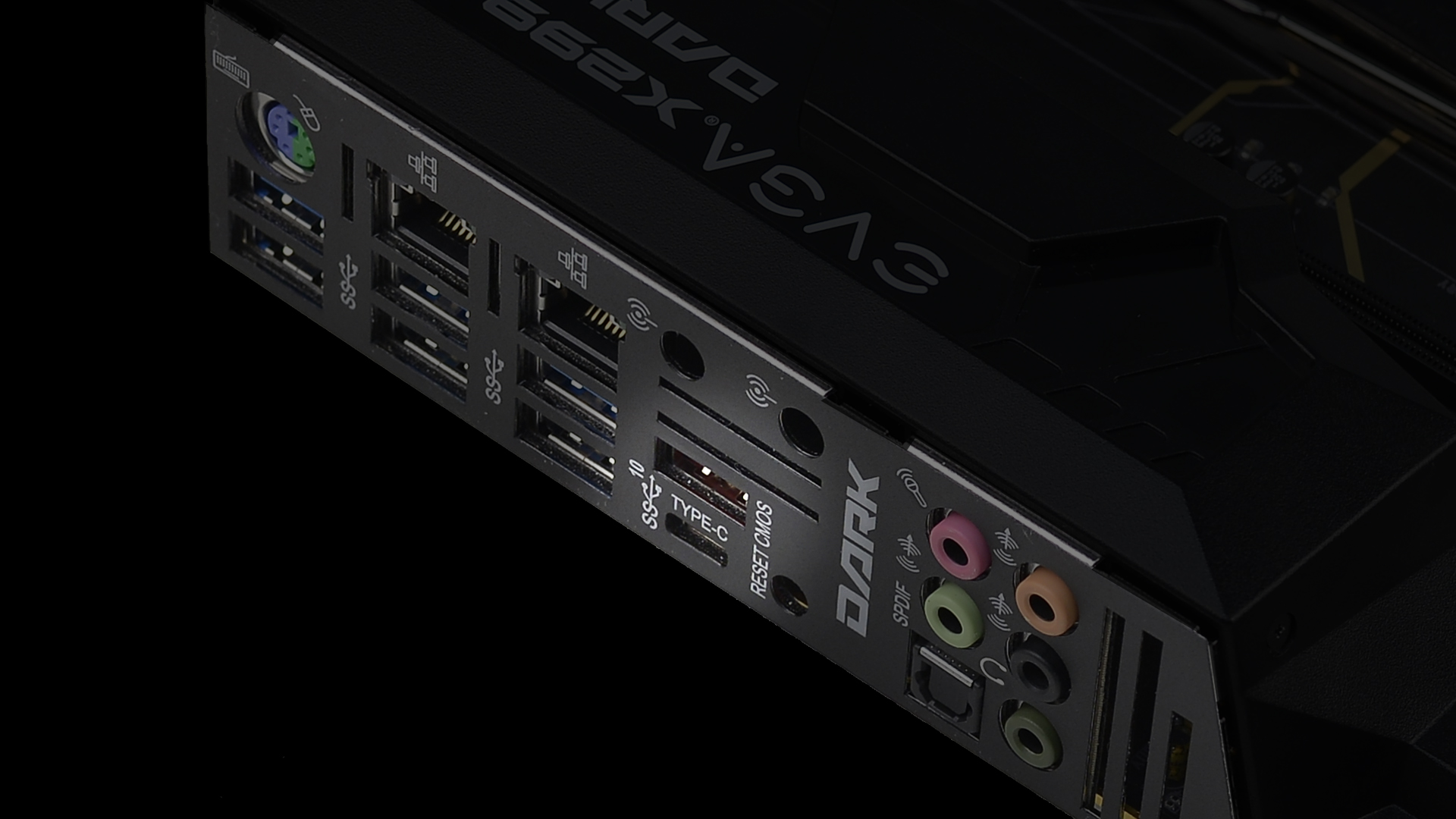

USB
USB 3.1 Type-A / Type-C

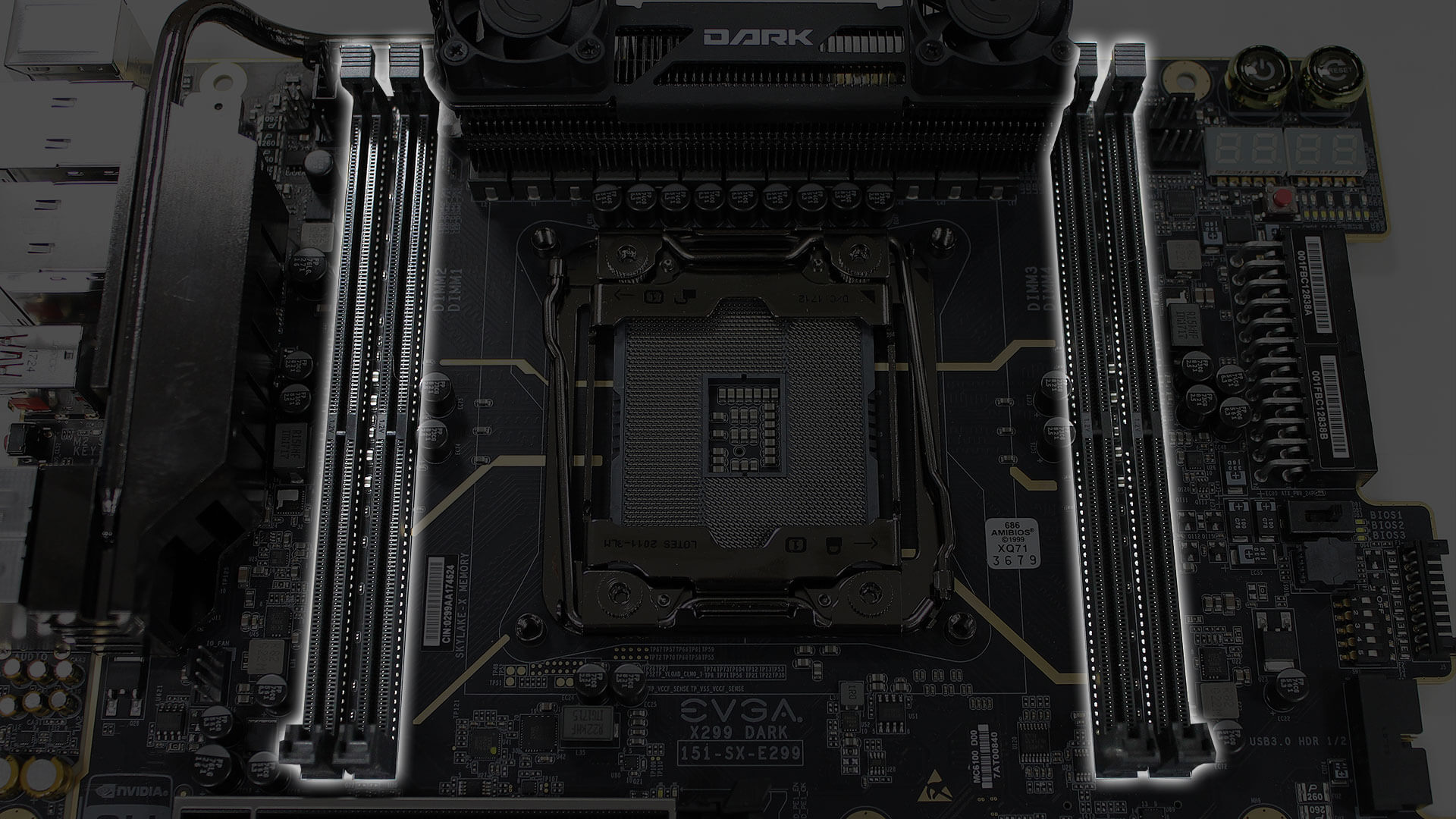

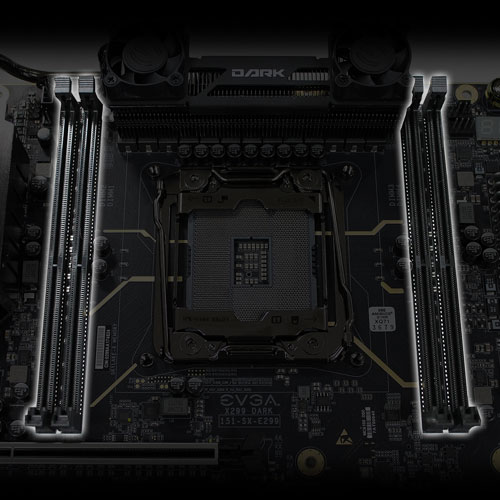

SKYLAKE-X
Up to 64GB of 4000MHz+ (OC) Quad-Channel RAM on Skylake-X

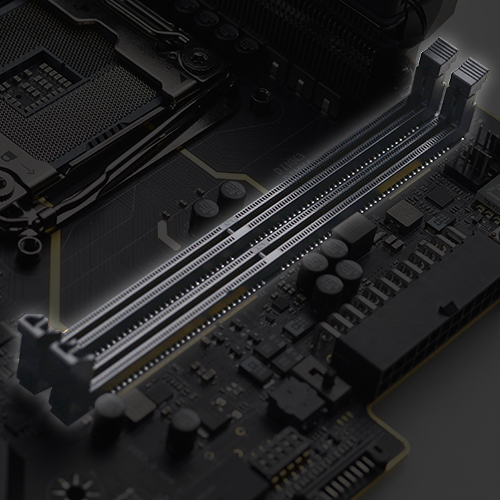

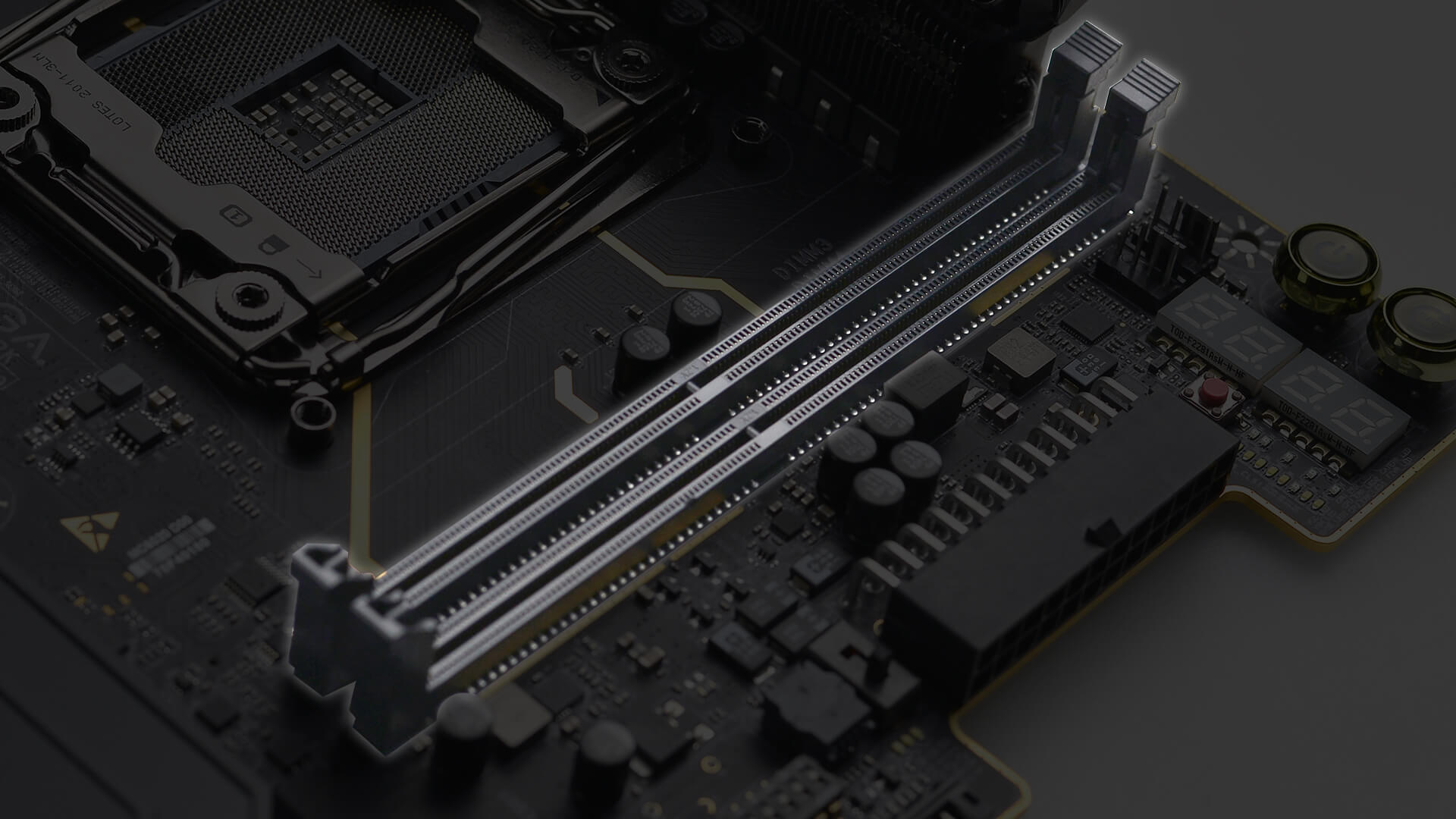

KABY LAKE-X
Up to 32GB of 4133MHz+ (OC) Dual-Channel RAM on Kaby Lake-X

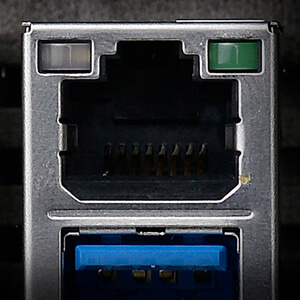

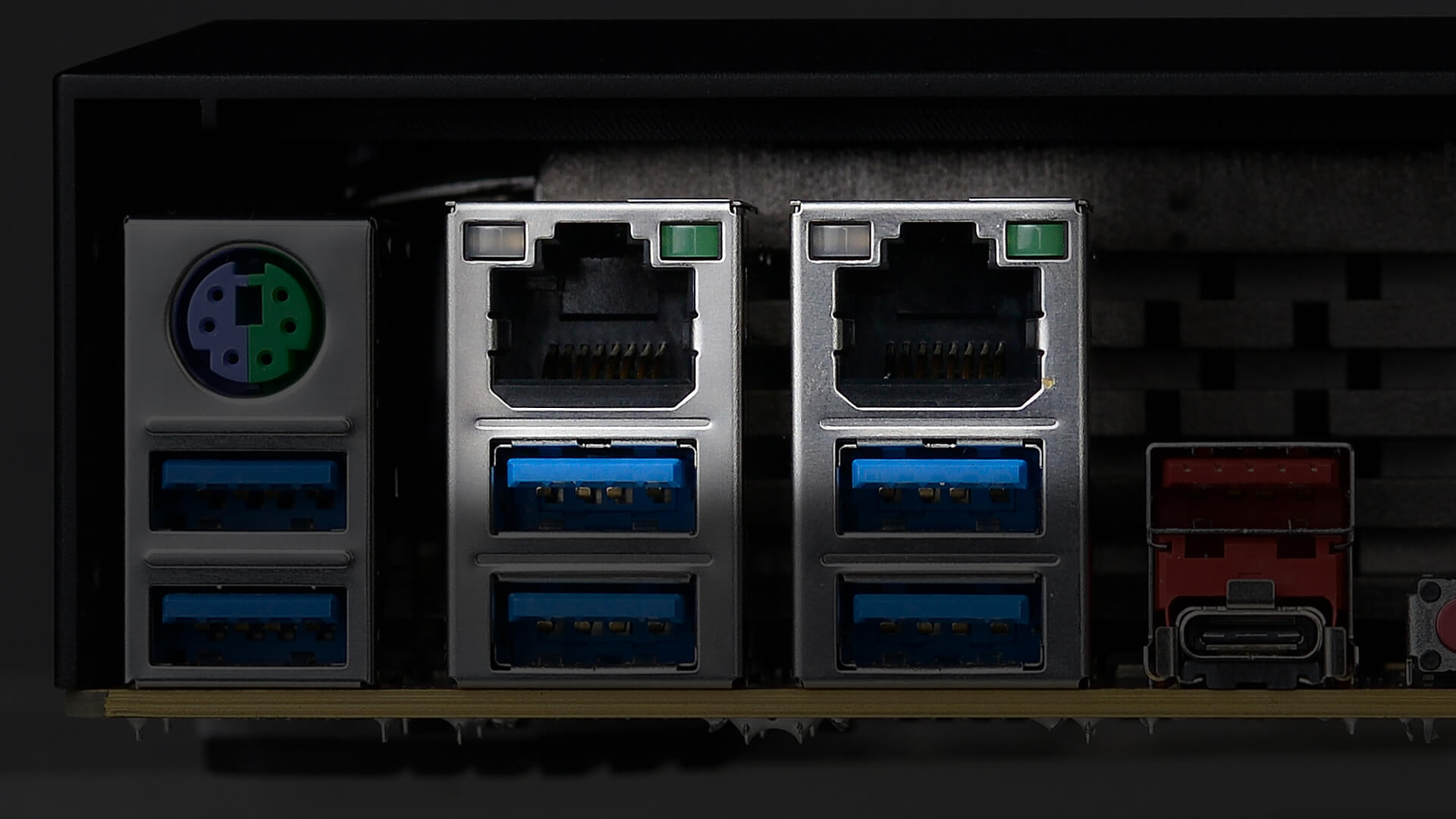

LAN
2x Intel® GbE LAN with teaming support

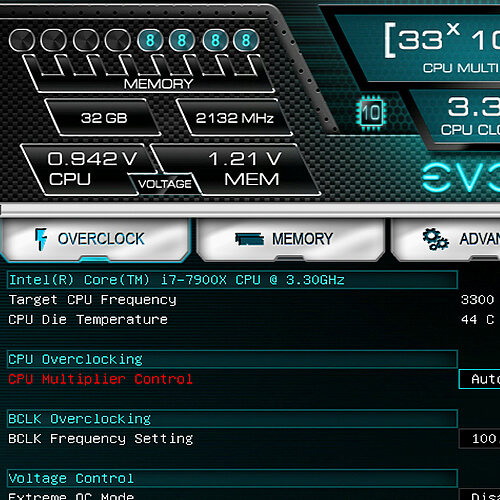

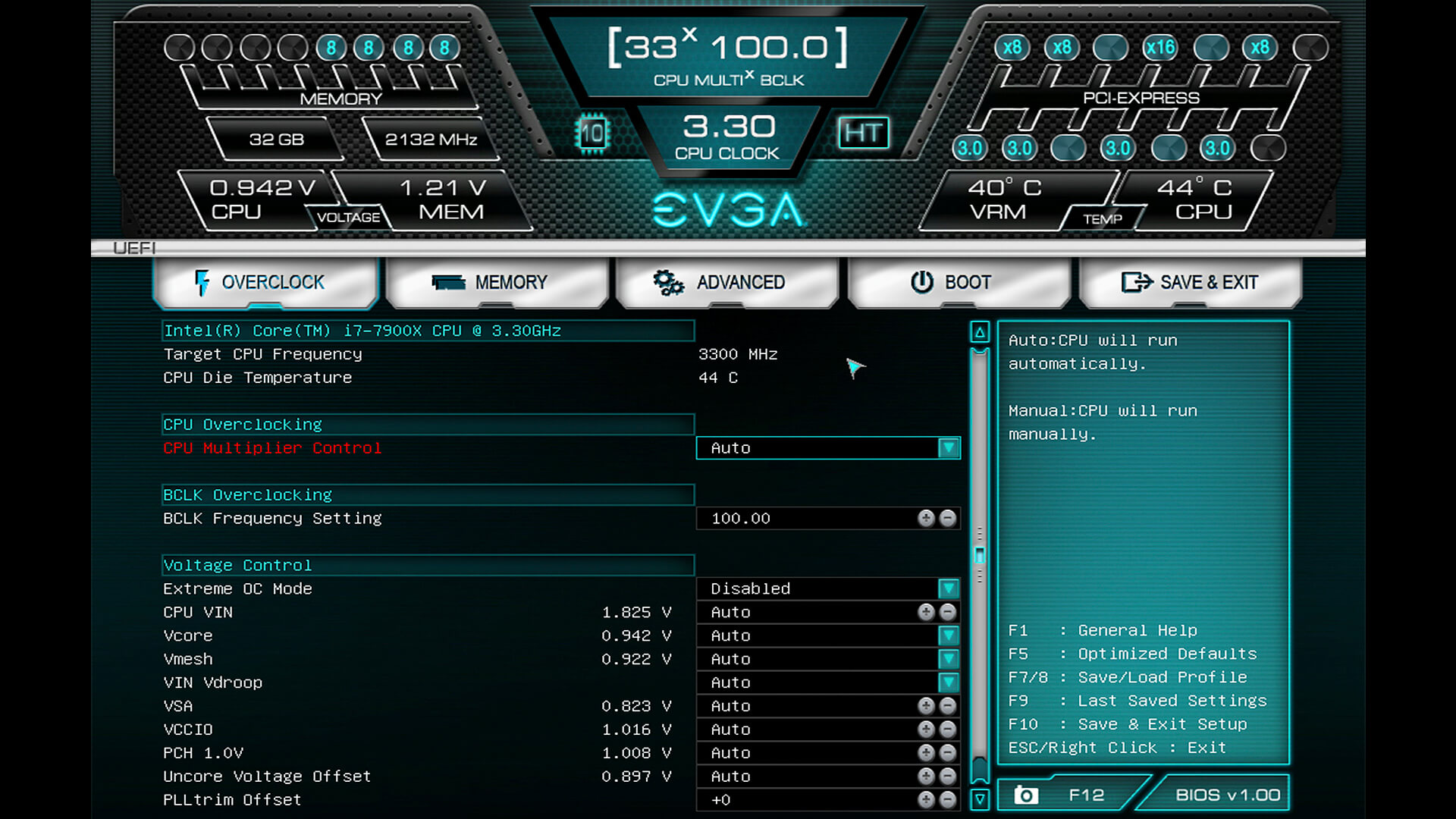

BIOS
EVGA's Full Featured GUI UEFI / BIOS

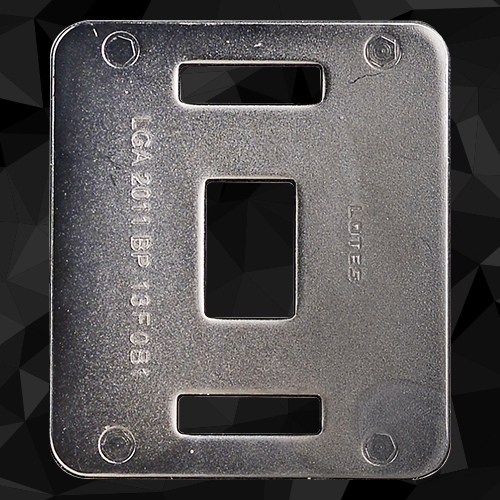

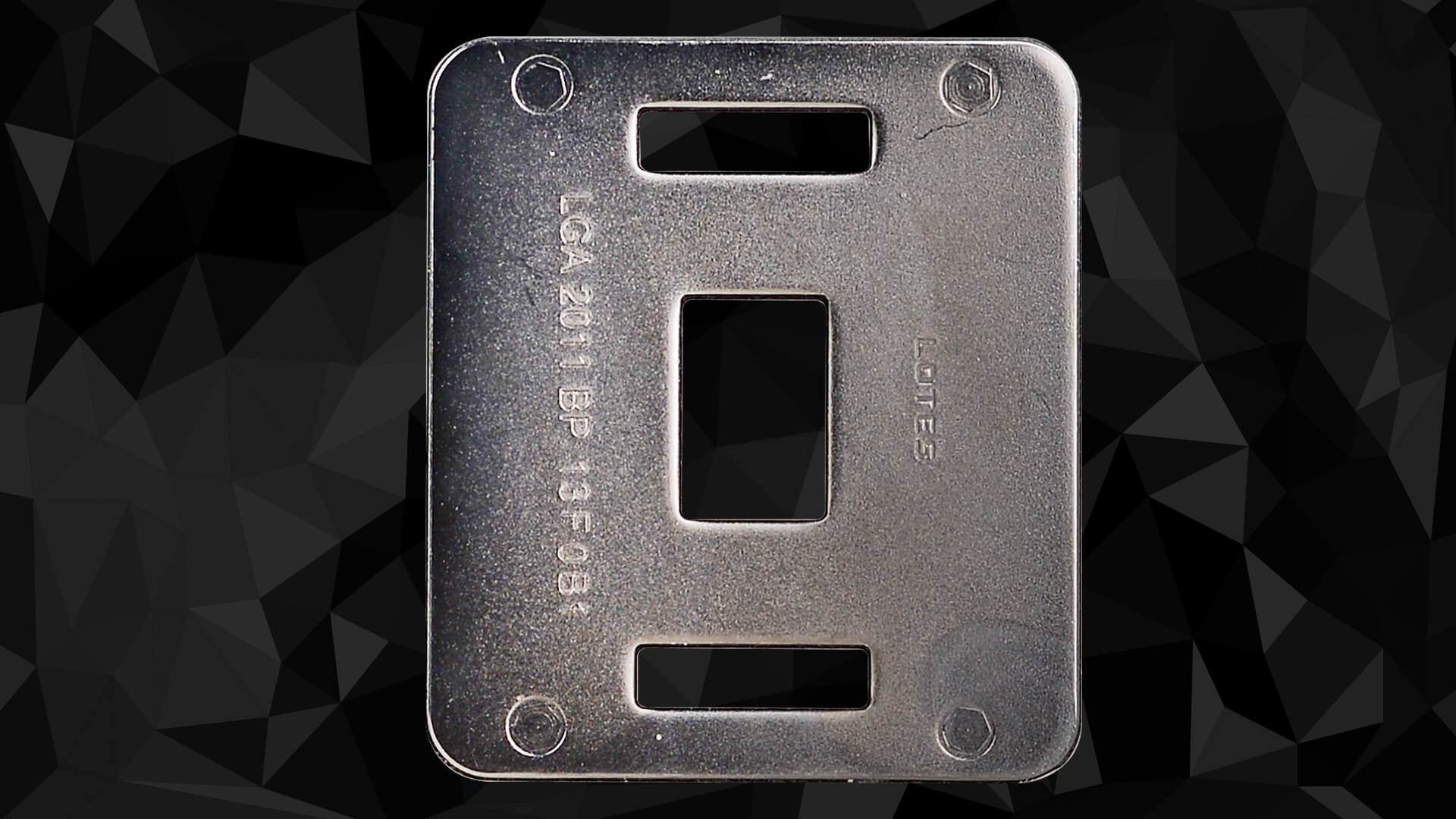

LEGACY LGA20XX SOCKET BACKPLATE
Allows for custom CPU cooling solutions (optional)
There is much to be said about a beautifully-engineered motherboard designed to handle the highest loads or the most extreme conditions, let alone the rigors and abuse constantly demanded by the best overclockers in the world and still look good doing it. This was achieved, in part, by using:
Although the X299 Dark does not feature RGB LED support, it politely reminds you that you can't see pretty in the Dark. This board is engineered for the ultra-enthusiast, including these features:

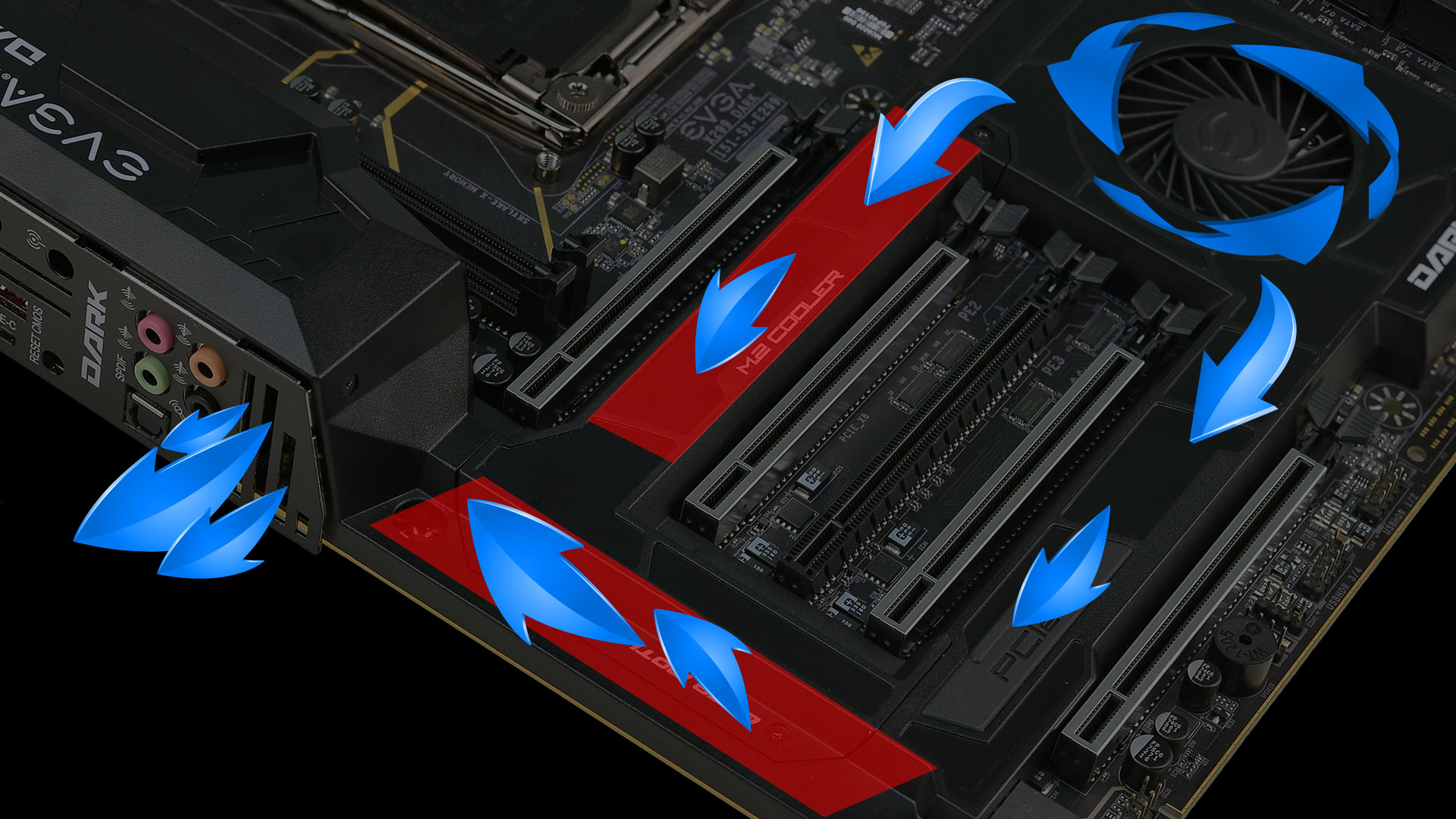

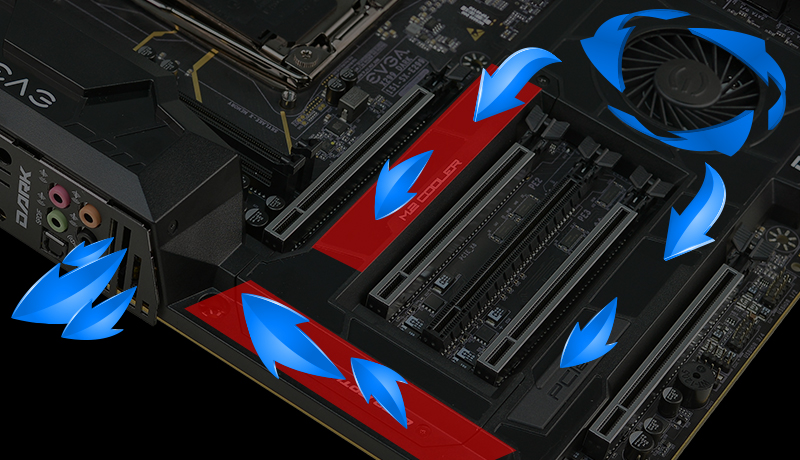

ACTIVE PCH & M.2 COOLING
Keep your SSDs cool under even the longest gaming or benching sessions with the X299 Dark's I/O and expansion slot cover. This cover provides direct airflow over your M.2 devices and exhausts away from the rest of your components.

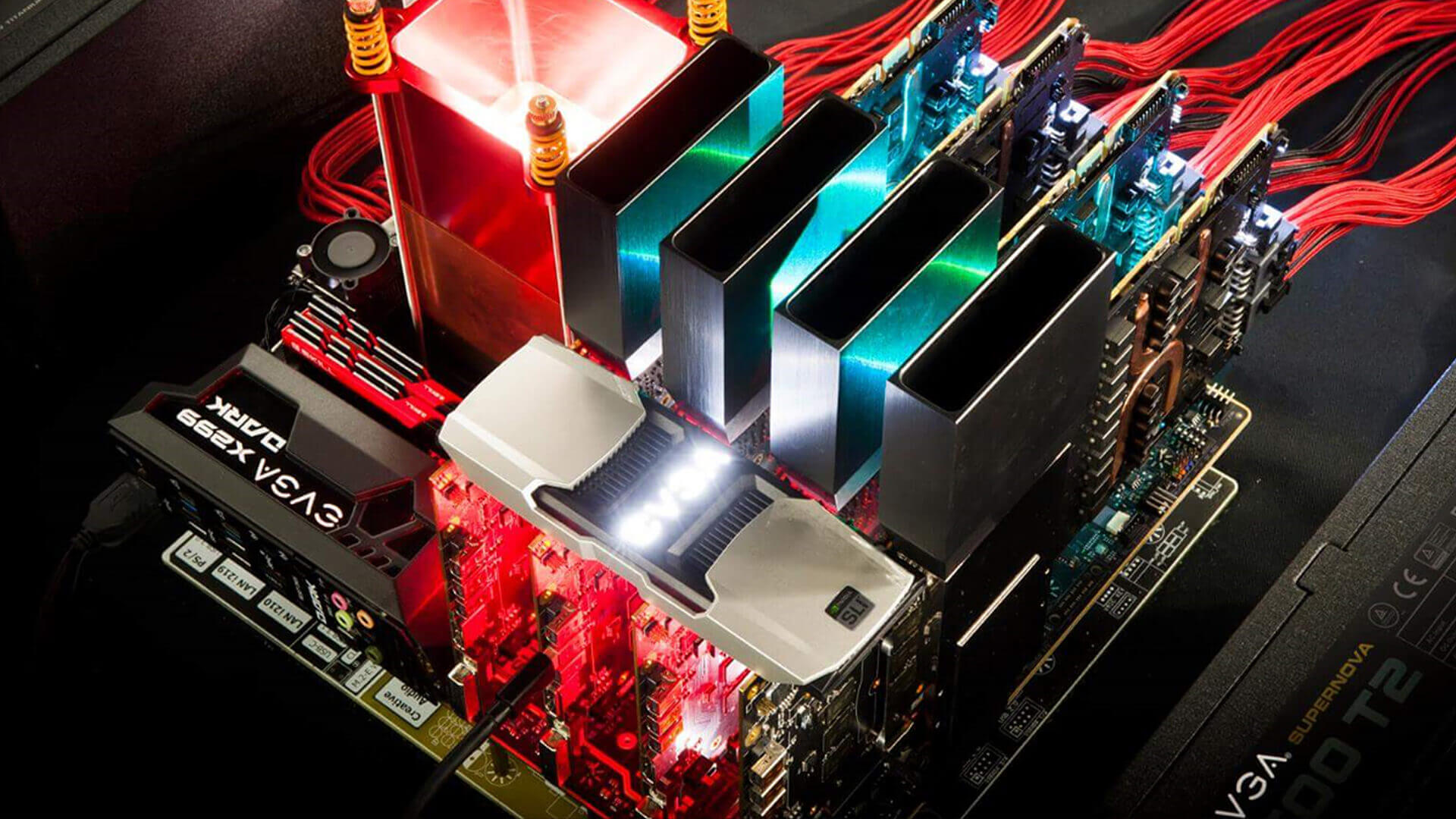

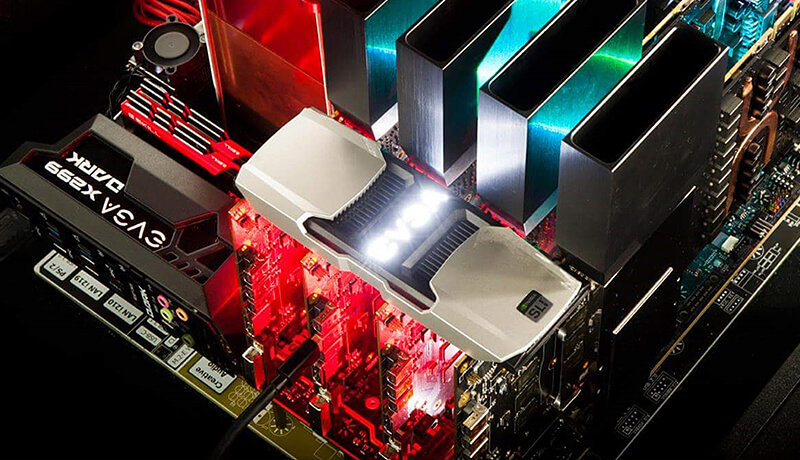

4-WAY SLI SUPPORT
4-Way SLI support without the need for PLX chips
• 4-way SLI support with 44-lane Skylake-X processors
• 3-way SLI support with 28-lane Skylake-X processors
• 2-way SLI support with 16-lane Kaby Lake-X processors

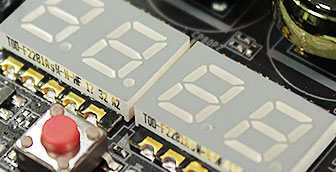

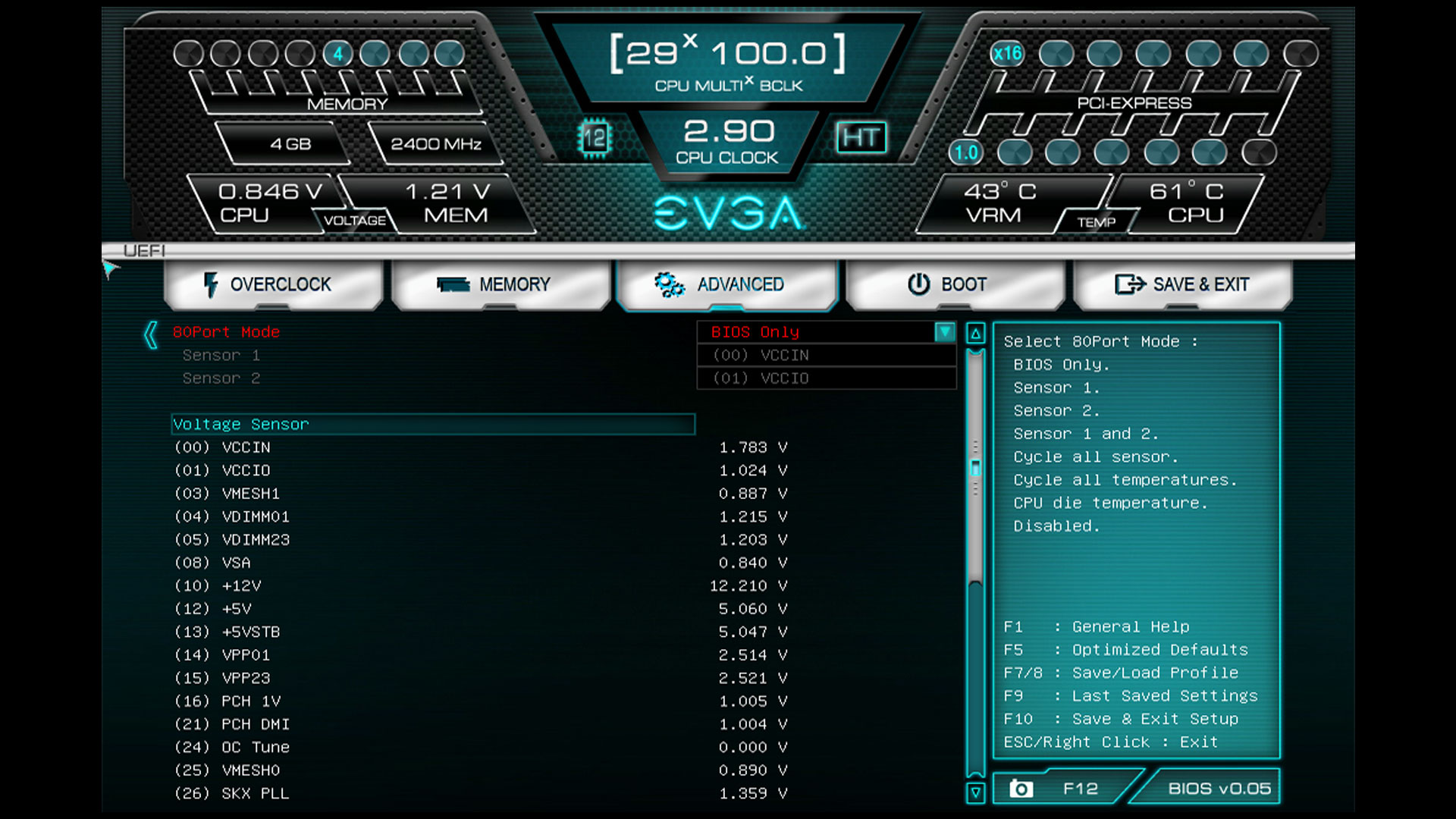

POST INDICATOR

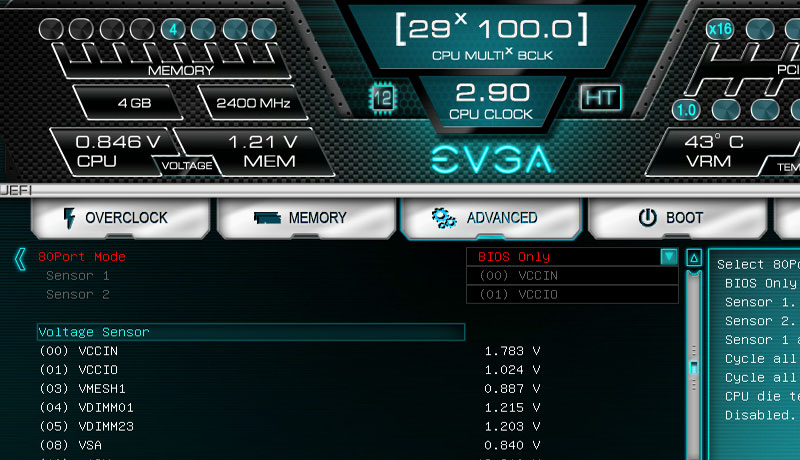

Multi-Function POST Indicator - Fully configurable in BIOS, these LEDs can be configured to show temperatures, voltages or cycle both in real-time.

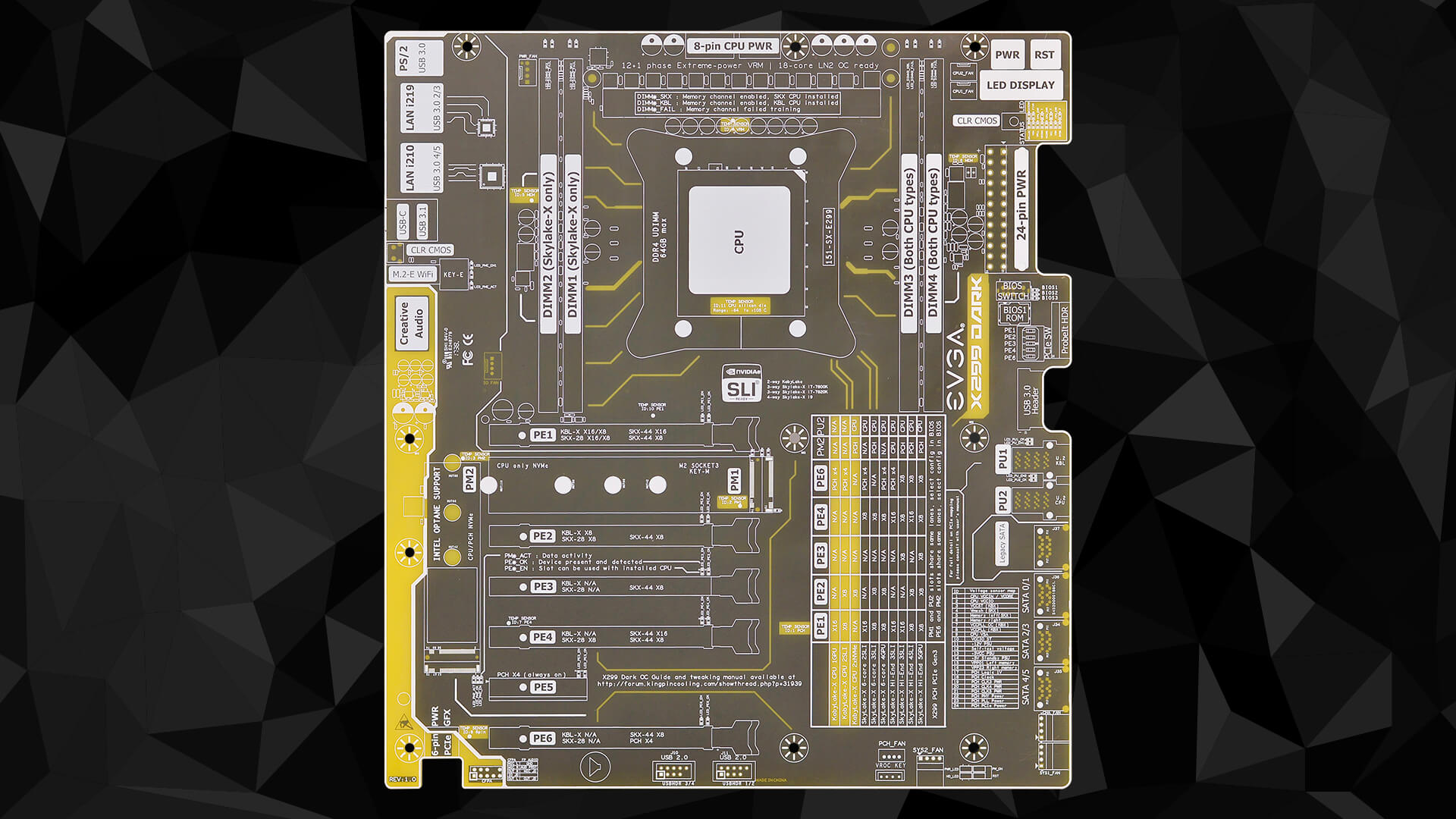

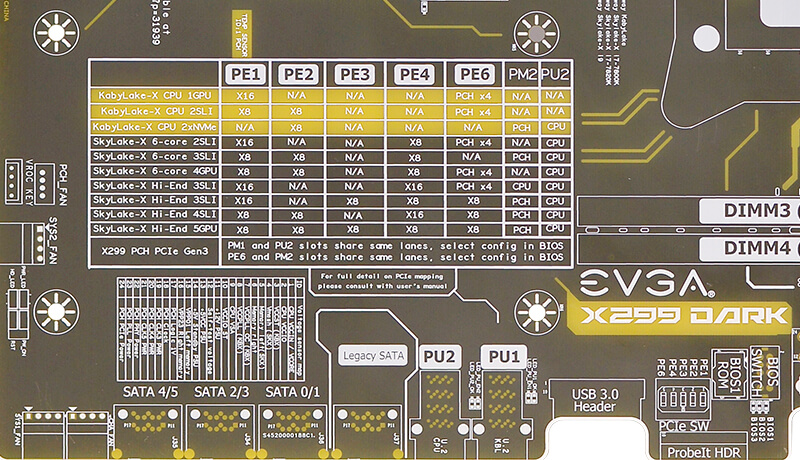

VISUAL GUIDE / BENCH TABLE

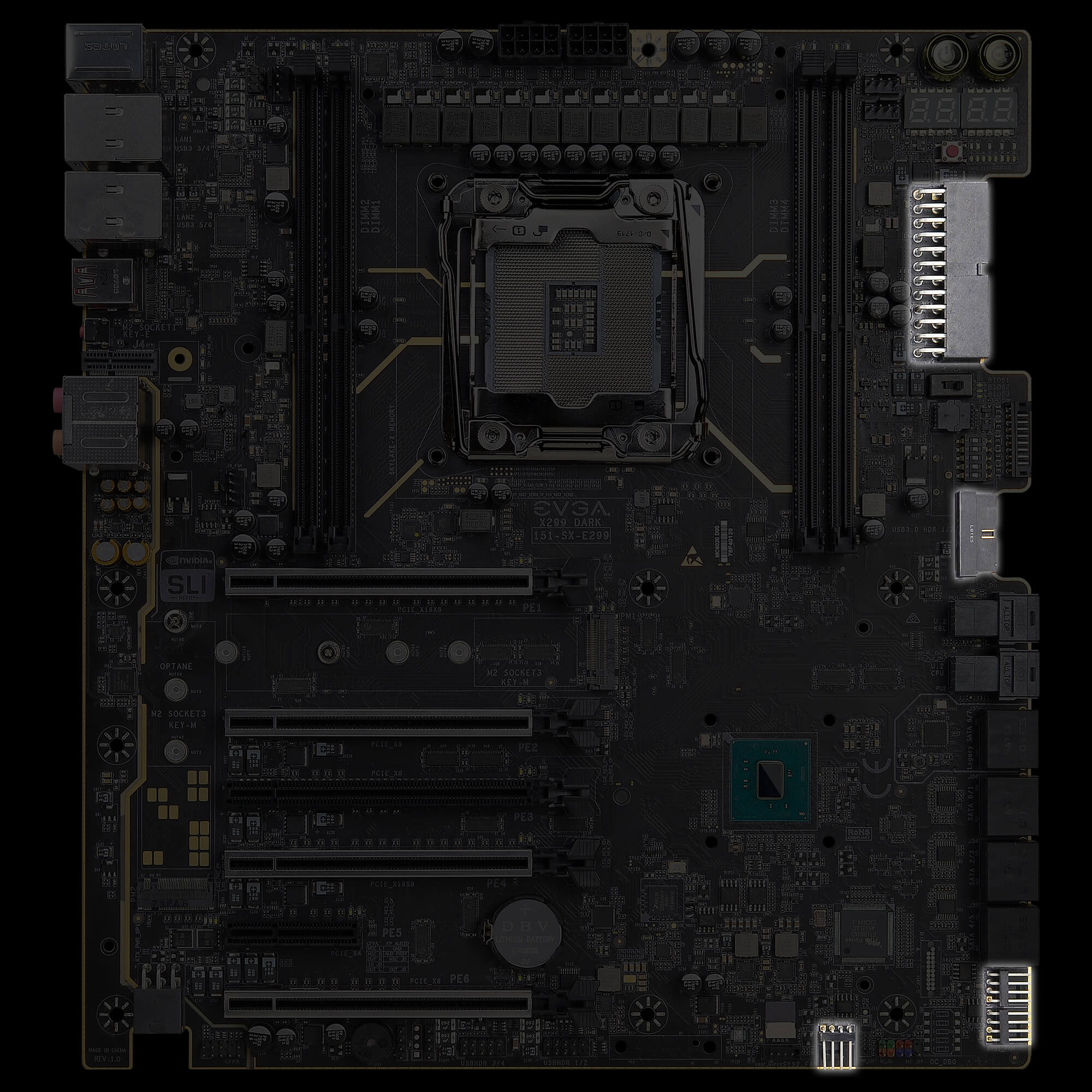

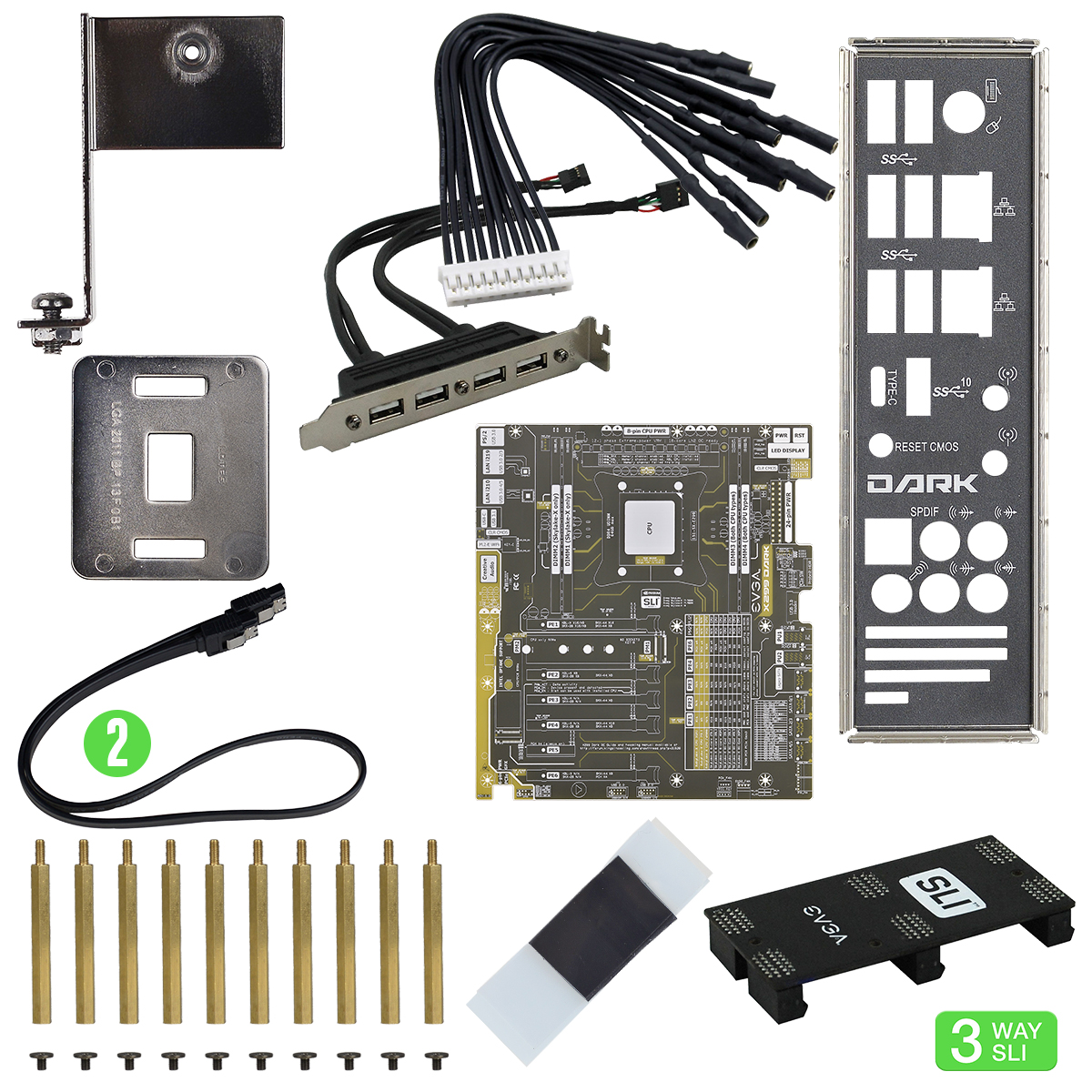

Visual Guide / Bench Table - Every EVGA X299 Dark is packed with a printed PCB showing components, LEDs, PCIe, lane breakdowns, and other helpful information. More importantly, this PCB doubles as an open-air testing or benching station, providing clearance for heaters, condensation, or even extra power supply storage.

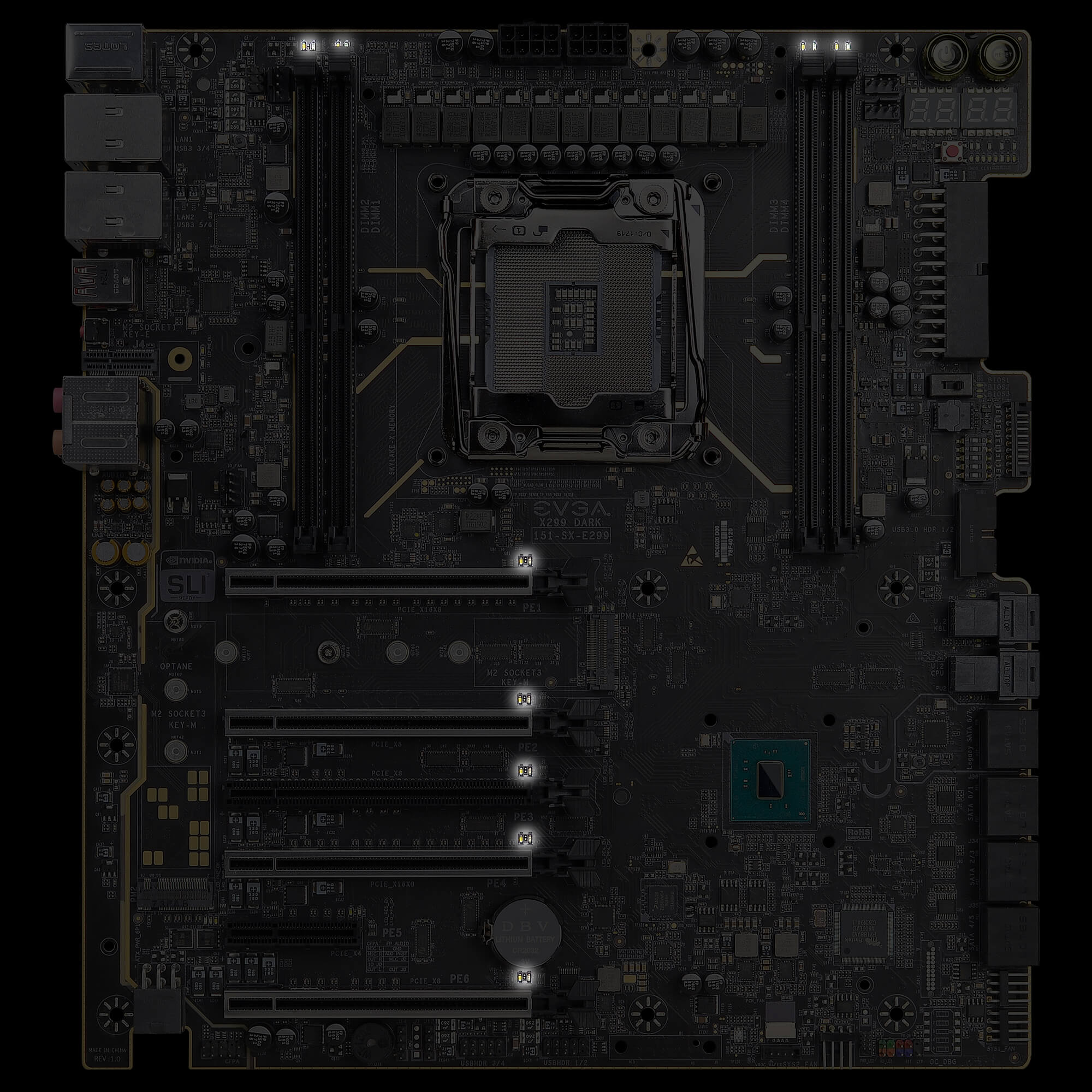

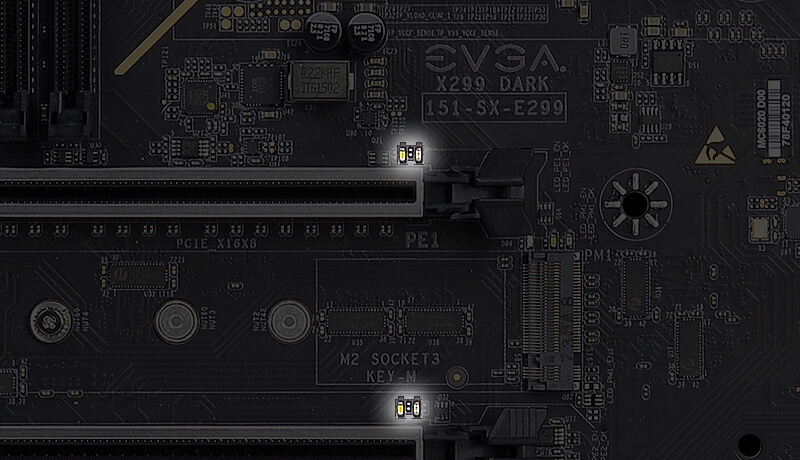

PCIe / DIMM STATUS LEDs
PCIe / DIMM status LEDs allow for easy system assembly and troubleshooting at a glace.

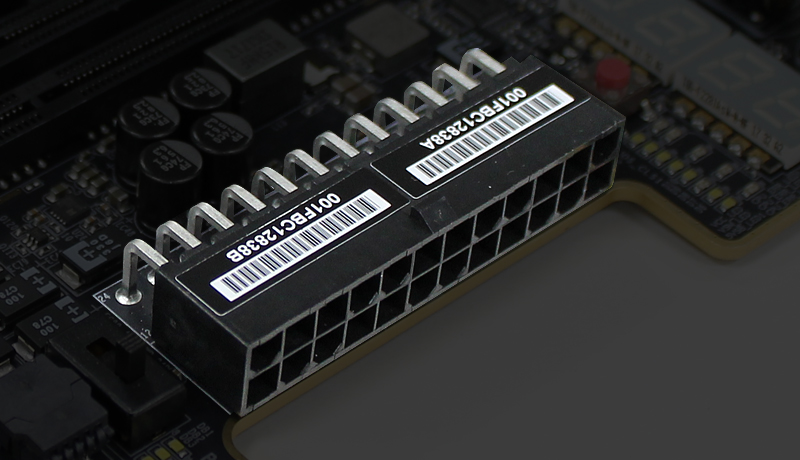

RIGHT ANGLE HEADERS
24-pin power, FAN and USB3.0 headers - Hand-crafted design to provide clean system assembly without cable clutter.
Specifications
- Chipset: Intel X299
- Socket: Intel Socket 2066, Supports Intel Socket 2066
- Form Factor: E-ATX
- SLI: 4-Way
- Memory: 4 DIMM Quad-Channel (up to 128GB) DDR4 4000MHz+ (SKX), 2 DIMM Dual-Channel (up to 64GB) DDR4 4133MHz+ (KBL)
- Display Outputs: 0
- USB: 8 Native USB 3.0 / 4 USB 2.0
- USB 3.1 (Rear I/O): 1x Type-A, 1x Type-C
- USB 3.1 (Internal Header): 0
- SATA: 6 Native SATA 6.0Gbps Ports / 2 ASMedia SATA 6.0Gbps Ports
- Ethernet: 2x Intel® Gigabit NIC
- Audio: Creative Sound Core3D Quad-Core Audio Processor
- Fan Headers: 7 (2 PWM, 5 DC\PWM)
- PCB: 12 Layers

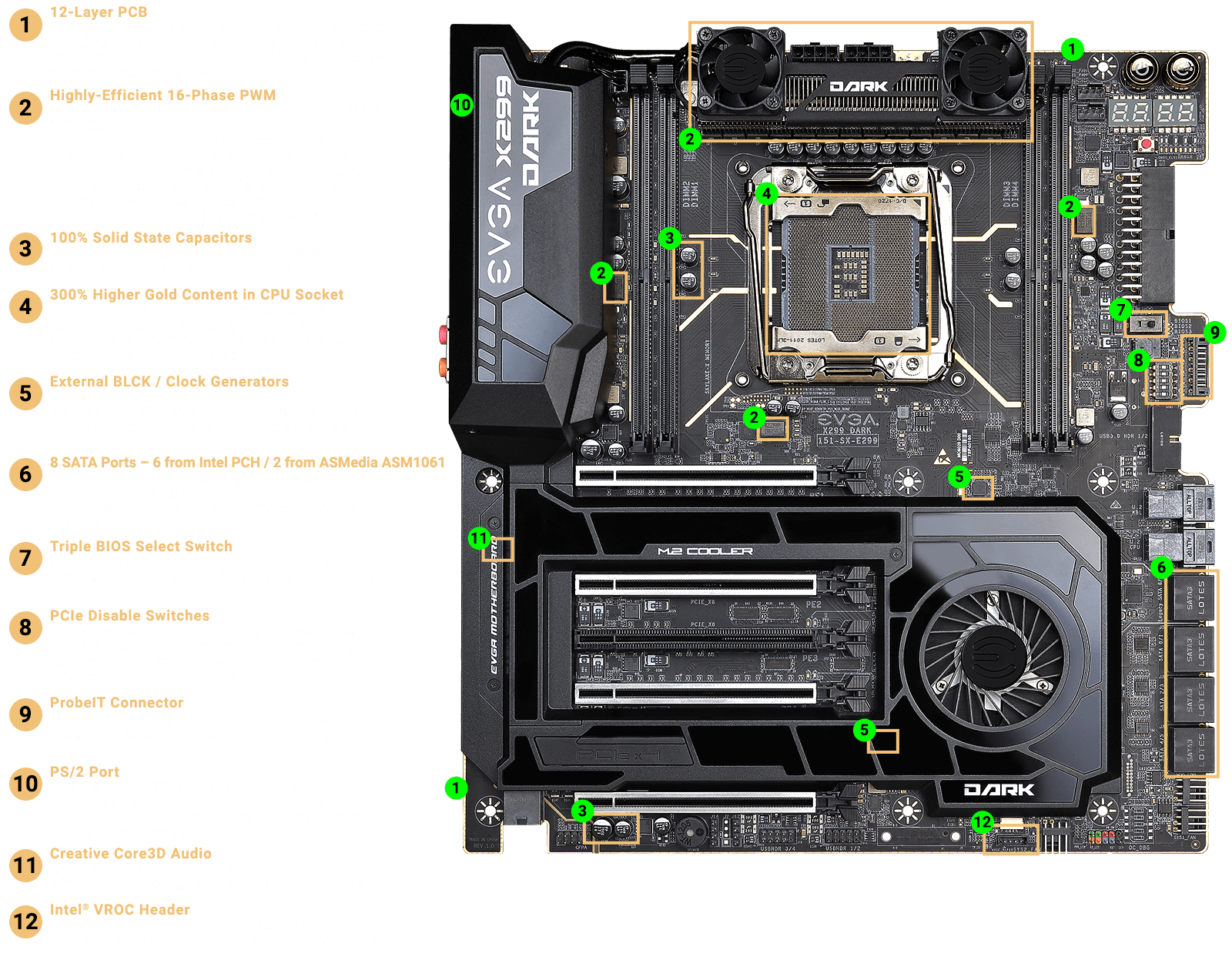

Key Features
- 100% Solid State Capacitors
- 13 Temperature and 24 Voltage Sensors
- 1x M.2 Key E (32mm) + 2x M.2 Key M (80mm,110mm)
- 300% more gold content in the CPU socket
- 4-Way SLI® Support
- Advanced VRM Fansink with Heatpipe
- CLEAR CMOS, Power and Reset
- Creative Sound Core3D Audio with Output Amplifiers
- Dual 8 Pin CPU Power
- EVGA E-LEET X Tuning Support
- EVGA Probe-It Connector
- External Clock Gen.
- Full Body Cover with Active PCH and M.2 Cooling
- Highly-Efficient 16 Phase Power Design
- Intel VROC Support
- Onboard Power, Reset, and Clear CMOS
- Onboard Temperature and Voltage Monitoring
- Right-angle power, FAN, USB 3.0 headers
- Triple BIOS Support
- Windows 10 64bit Support
