Built To Perfection
Intel® X299 Platform
Intel®'s Latest Platform Unlocks
Unbelievable Performance
- Supports up to 36 CPU threads (18-core)
- Up to 44 PCI-E 3.0 Lanes
- Intel® Optane™ Support
Introducing the EVGA X299 motherboard lineup - built for the Next Generation Intel® X299 platform. The EVGA X299 motherboard lineup combines incredible features, overclocking and the latest SSD standards, including M.2, U.2 and Intel® Optane™ support. EVGA's GUI BIOS focuses on functionality and overclocking support to give you power and ease of use. With these features and more, it is easy to see how the EVGA X299 Motherboards are Built to Perfection.
Specifications
- Intel® X299 Express Chipset
- SLI – Up to 4-Way
- Memory Support – 4 DIMM Quad-Channel DDR4 4133MHz+ (Up to 64GB)
- Ethernet – 2x Intel® Gigabit NIC
Storage Support
- 8 SATA 6Gb/s
- 2 U.2 Port 32Gb/s
M.2 Support
- 2 Key M (110mm & 80mm)
- 1 Key E (Vertical)
USB Support
- 10 USB 3.0 (2 Headers)
- 2 USB 3.1 (Type-A/Type-C)
- 4 USB 2.0 (2 Headers)
151-SX-E299-KR

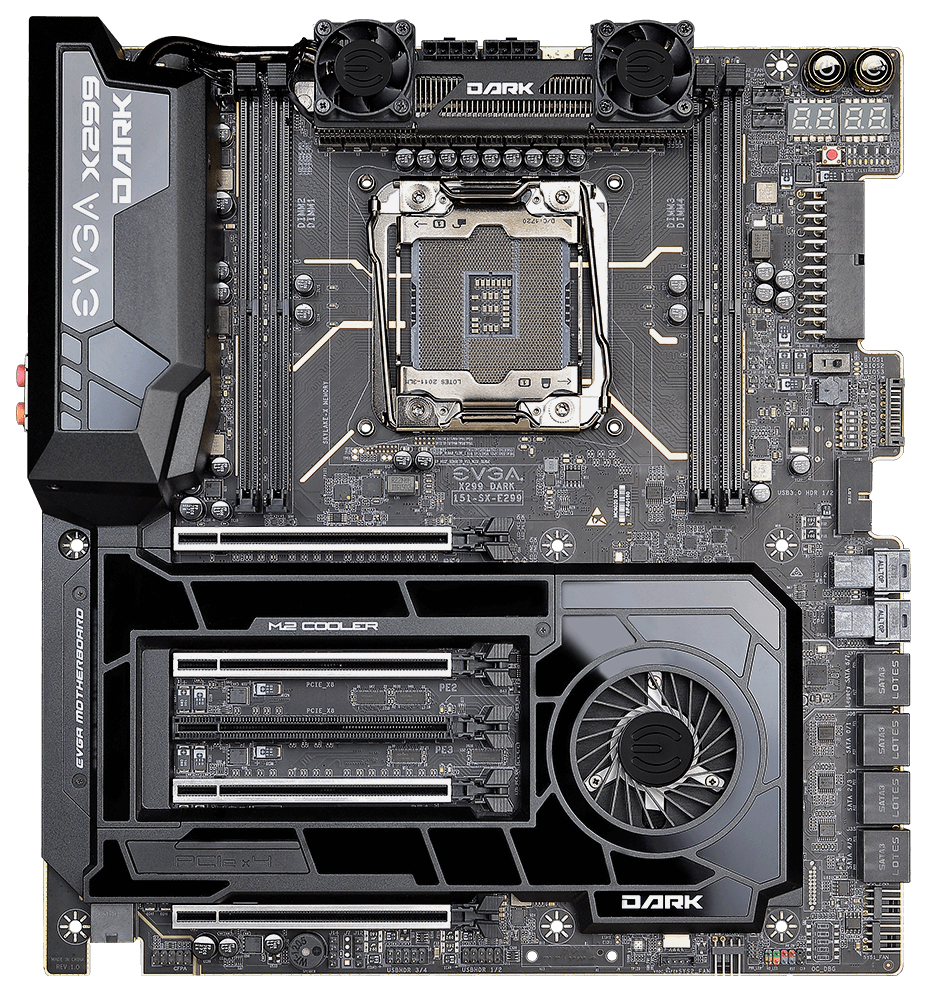

The EVGA X299 DARK is designed from the ground up to be the best overclocking motherboard on the planet. With up to 4-Way SLI support this motherboard is designed to break world records and be the platform for hardcore enthusiasts. A robust VRM solution provides clean power to the CPU, and a dedicated M.2 cooling solution keeps your M.2 drives as cool as possible under even the most stressful environments.
Key Features
- Form Factor – Optimized EATX for clean cable management
- Supports x16 PCIe Graphics with all CPUs
- Audio – Creative Sound Core3D Quad-Core Audio Processor + Optical
- Highly-Efficient 16 Phase Digital VRM
- 12 Layer PCB Design
- Bundled Bench Stand Plate
- Dedicated M.2 Cooling
- Onboard Power, Reset and Clear CMOS
- EVGA E-LEET X Tuning Utility
- Triple BIOS Support
- M.2 NVMe PCI-E SSD Support
- U.2 NVMe SSD Support
- Intel® Optane™ Memory Ready
- Switchable DC / PWM Fan Control
- 10-zone Temperature Monitor
- Onboard Voltage Display
Specifications
- Intel® X299 Express Chipset
- SLI – Up to 3-Way
- Memory Support – 8 DIMM Quad-Channel DDR4 4133MHz+ (Up to 128GB)
- Ethernet – Killer E2500 + Intel® Gigabit NIC
Storage Support
- 8 SATA 6Gb/s
- 2 U.2 Port 32Gb/s
M.2 Support
- 2 Key M (110mm & 80mm)
- 1 Key E (Vertical)
USB Support
- 8 USB 3.0 (1 Header)
- 2 USB 3.1 (Type-A/Type-C)
- 4 USB 2.0 (2 Headers)
142-SX-E297-KR

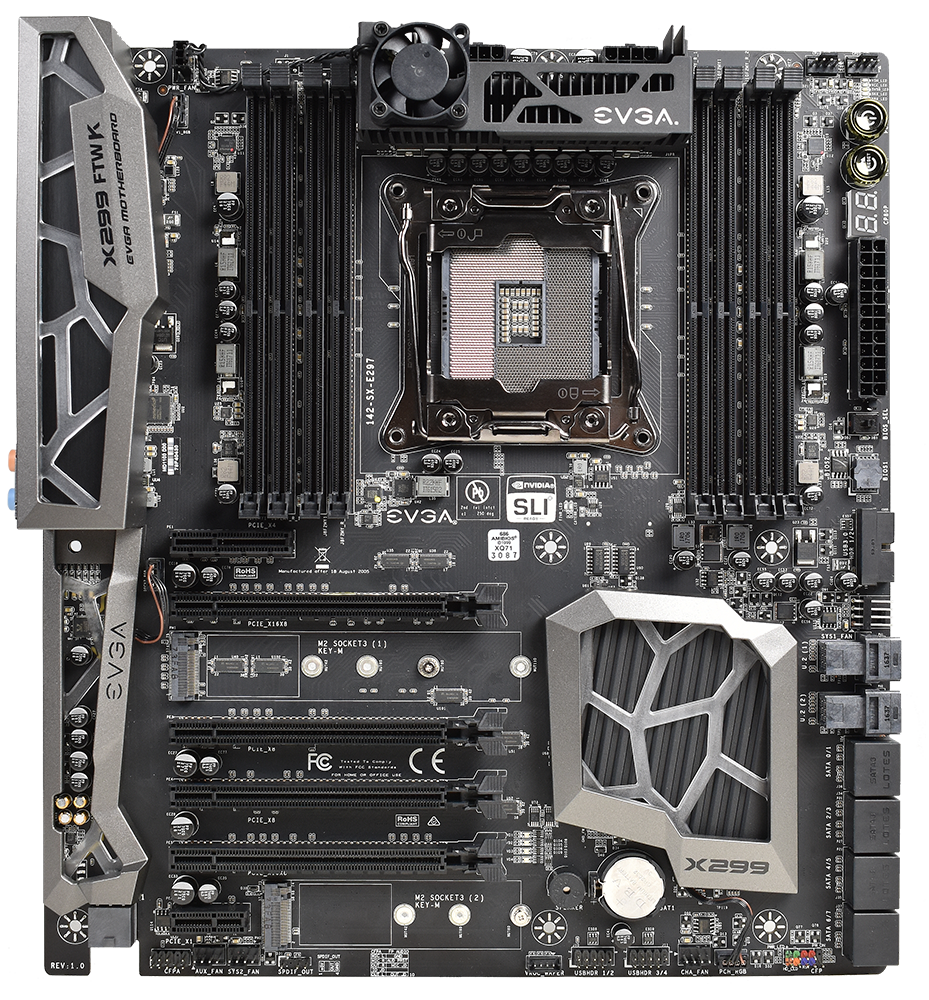

The EVGA X299 FTW K is built to win. The included Killer NIC prioritizes and reduces latency to keep you at the top of your game from the first match to the last. If that wasn't enough, a newly-designed VRM provides the cleanest and most stable power to the CPU possible. A total of 8 DIMM slots support up to 128GB of DDR4 memory, and a 4 layer memory T-routing design allows for extreme memory speeds of 4133MHz+. An RGB I/O Cover, along with RGB Chipset heatsink, lets you customize the look to match your rig.
Key Features
- Form Factor – EATX
- RGB LED I/O and Heatsink
- RGB Fan Header Support
- Audio – High Definition 8 Channel Audio + Optical
- Highly-Efficient 14 Phase Digital VRM
- Onboard Power, Reset and Clear CMOS
- EVGA E-LEET X Tuning Utility
- Dual BIOS Support
- M.2 NVMe PCI-E SSD Support
- U.2 NVMe SSD Support
- Intel® Optane™ Memory Ready
- Switchable DC / PWM Fan Control
- Onboard CPU Temperature Monitor
Specifications
- Intel® X299 Express Chipset
- SLI – Up to 2-Way + PhysX
- Memory Support – 4 DIMM Quad-Channel DDR4 4133MHz+ (Up to 64GB)
- Ethernet – 802.11AC Dual Band + Intel® Gigabit NIC
Storage Support
- 6 SATA 6Gb/s
- 1 U.2 Port 32Gb/s
M.2 Support
- 1 Key M (80mm)
- 1 Key E (Vertical)
USB Support
- 8 USB 3.0 (1 Header)
- 2 USB 3.1 (Type-A/Type-C)
- 4 USB 2.0 (2 Headers)
131-SX-E295-KR

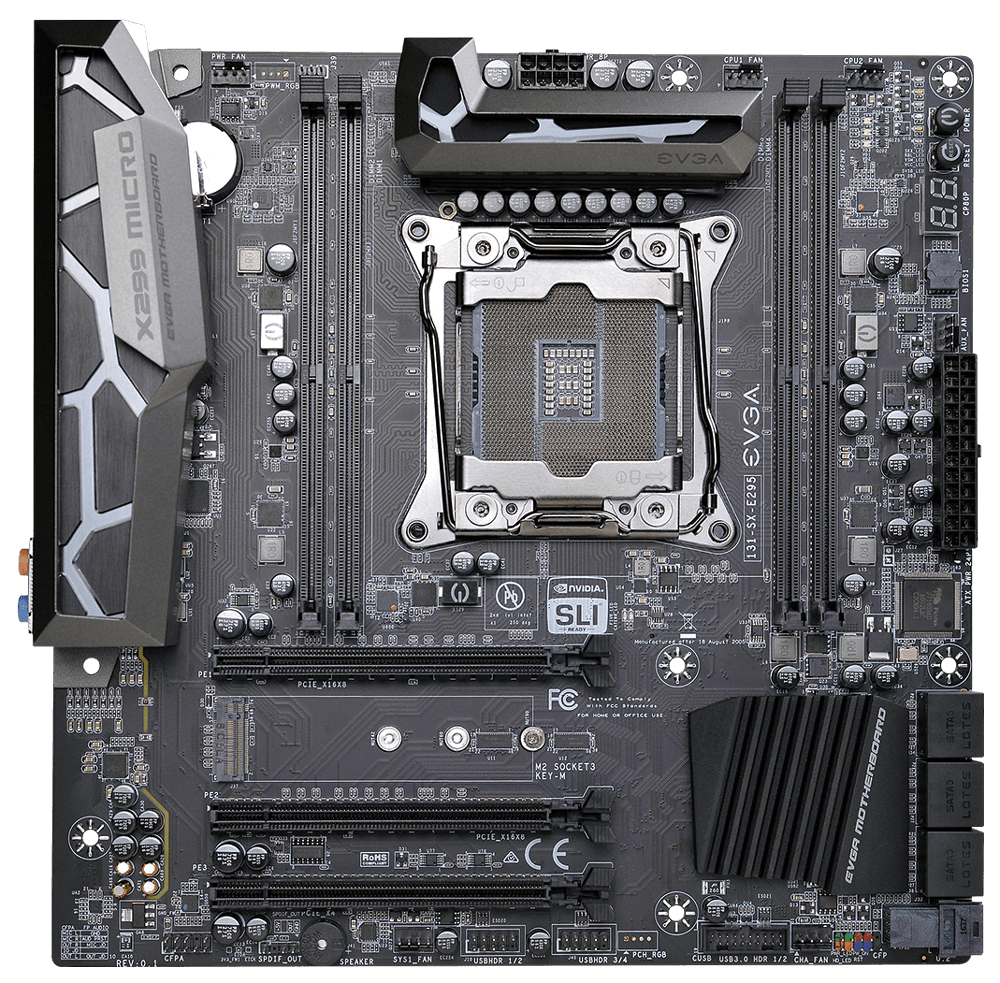

The EVGA X299 Micro packs amazing features into a mATX form factor. Built to offer no compromises, the EVGA X299 Micro supports 4133MHz+ memory speed, 2-Way SLI, 6 SATA 6G Ports, and U.2.
Key Features
- Form Factor – mATX
- RGB Fan Header Support
- Audio – High Definition 8 Channel Audio + Optical
- Highly-Efficient 12 Phase Digital VRM
- Onboard Power, Reset and Clear CMOS
- EVGA E-LEET X Tuning Utility
- M.2 NVMe PCI-E SSD Support
- U.2 NVMe SSD Support
- Intel® Optane™ Memory Ready
- Switchable DC / PWM Fan Control
- Onboard CPU Temperature Monitor
EVGA X299 DARK
151-SX-E299-KR
Specifications
- Chipset: Intel X299
- Socket: Intel Socket 2066, Supports Intel Socket 2066
- Form Factor: E-ATX
- SLI: 4-Way
- Memory: 4 DIMM Quad-Channel (up to 128GB) DDR4 4000MHz+ (SKX), 2 DIMM Dual-Channel (up to 64GB) DDR4 4133MHz+ (KBL)
- Display Outputs: 0
- USB: 8 Native USB 3.0 / 4 USB 2.0
- USB 3.1 (Rear I/O): 1x Type-A, 1x Type-C
- USB 3.1 (Internal Header): 0
- SATA: 6 Native SATA 6.0Gbps Ports / 2 ASMedia SATA 6.0Gbps Ports
- Ethernet: 2x Intel® Gigabit NIC
- Audio: Creative Sound Core3D Quad-Core Audio Processor
- Fan Headers: 7 (2 PWM, 5 DC\PWM)
- PCB: 12 Layers
EVGA X299 FTW K
142-SX-E297-KR
Specifications
- Chipset: Intel X299
- Socket: Intel Socket 2066, Supports Intel Socket 2066
- Form Factor: E-ATX
- SLI: 3-Way
- Memory: 8 DIMM Quad-Channel (up to 256GB) DDR4 4000MHz+ (SKX), 4 DIMM Dual-Channel (up to 128GB) DDR4 4133MHz+ (KBL)
- Display Outputs: 0
- USB: 8 Native USB 3.0 / 4 USB 2.0
- USB 3.1 (Rear I/O): 1x Type-A, 1x Type-C
- SATA: 8 Native SATA 6.0Gb/s Ports
- Ethernet: 1x Intel® Gigabit NIC, 1x Killer® Gigabit NIC
- Audio: 7.1 Channel High Definition Audio + Optical
- Fan Headers: 7 (2 PWM, 5 DC\PWM)
- PCB: 8 Layers
EVGA X299 Micro
131-SX-E295-KR
Specifications
- Chipset: Intel X299
- Socket: Intel Socket 2066, Supports Intel Socket 2066
- Form Factor: mATX
- SLI: 2-Way
- Memory: 4 DIMM Quad-Channel (up to 128GB) DDR4 4000MHz+ (SKX), 2 DIMM Dual-Channel (up to 64GB) DDR4 4133MHz+ (KBL)
- USB: 8 Native USB 3.0 / 4 USB 2.0
- USB 3.1 (Rear I/O): 1x Type-A, 1x Type-C
- USB 3.1 (Internal Header): 0
- SATA: 6 Native SATA 6.0Gb/s Ports
- Ethernet: 1x Intel® Gigabit NIC
- Audio: 7.1 Channel High Definition Audio + Optical
- Fan Headers: 6 (2 PWM, 4 DC\PWM)
- PCB: 8 Layers
