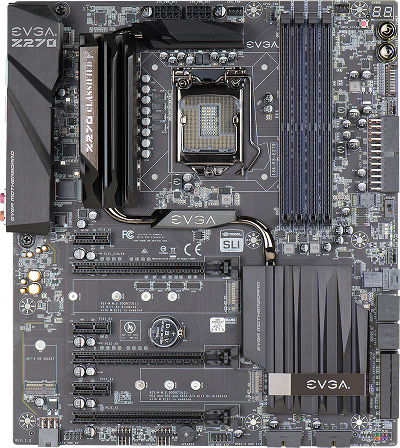

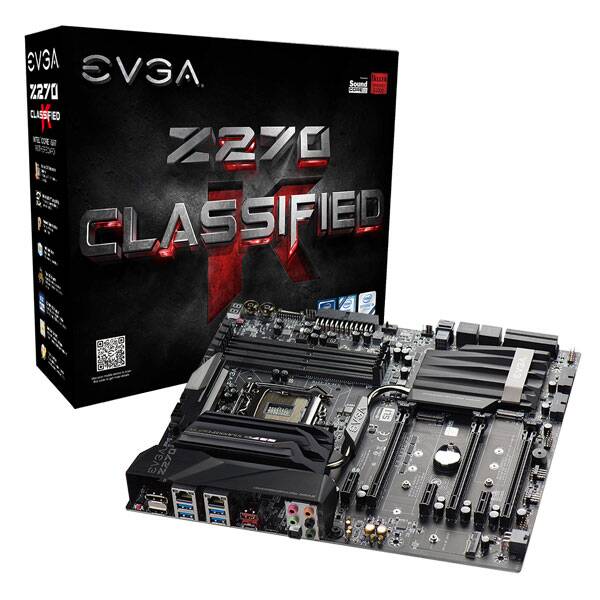

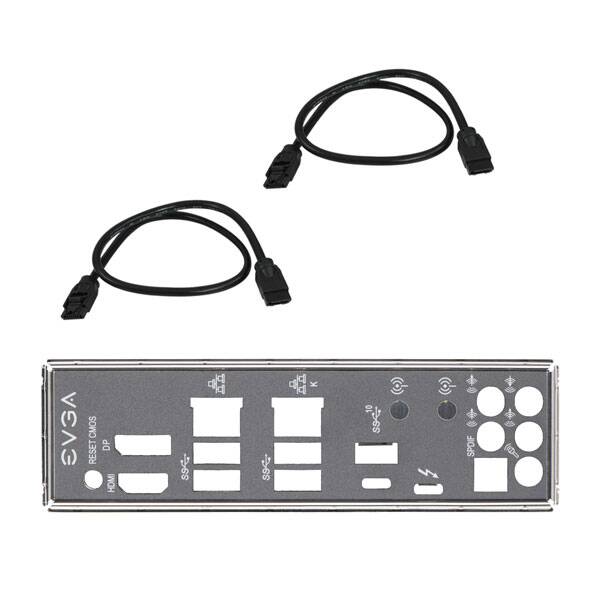

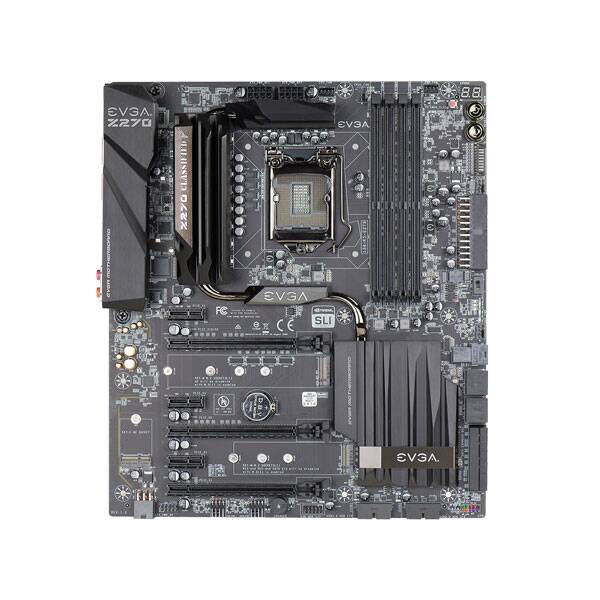

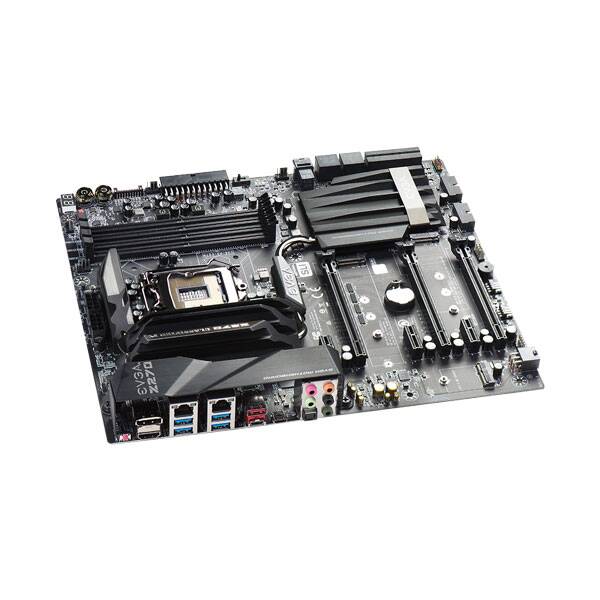

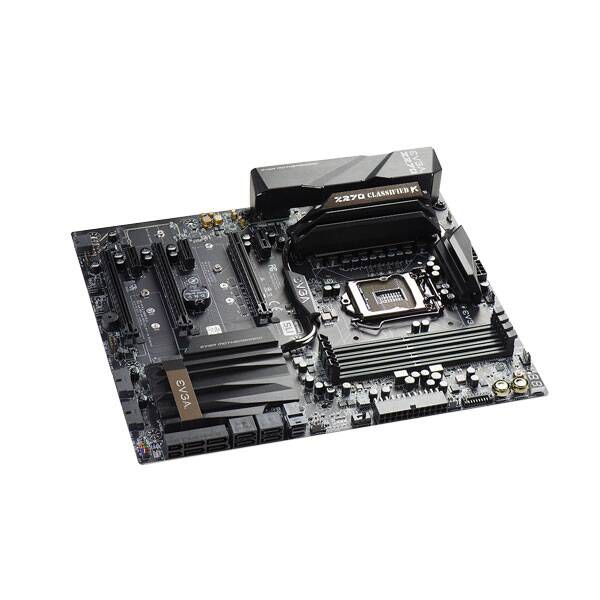

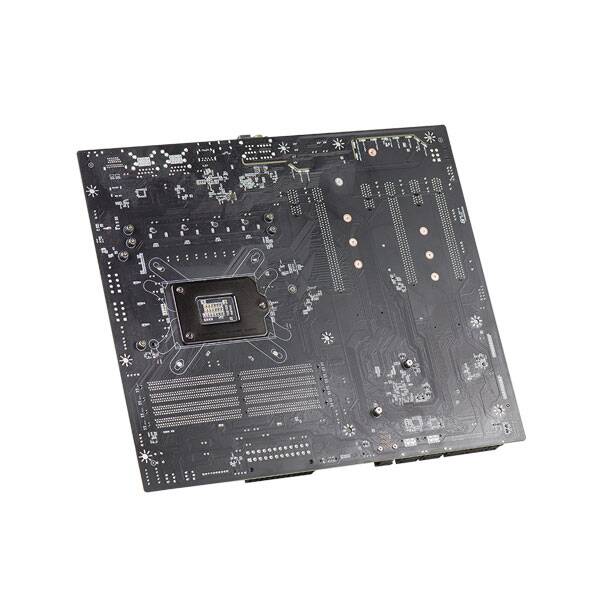

EVGA Z270 Classified K motherboard

Part Number: 134-KS-E279-KR

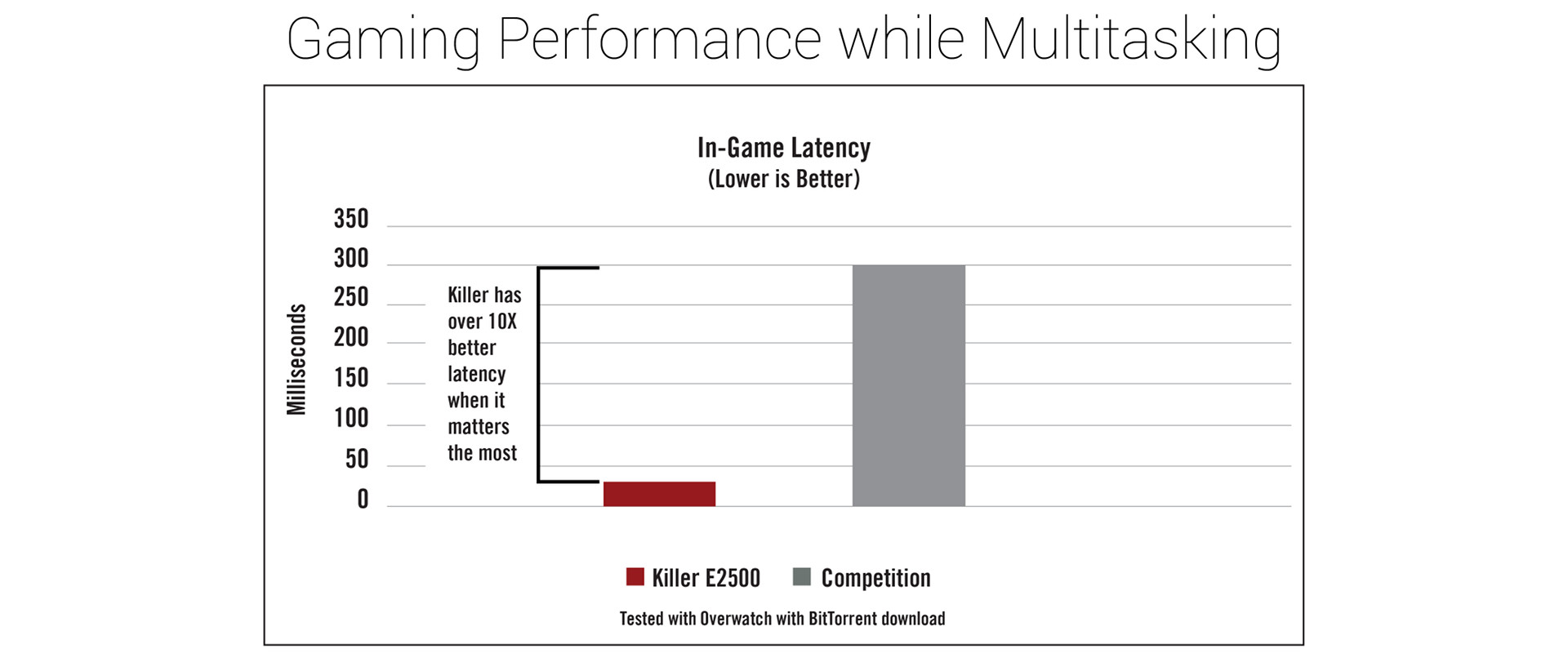

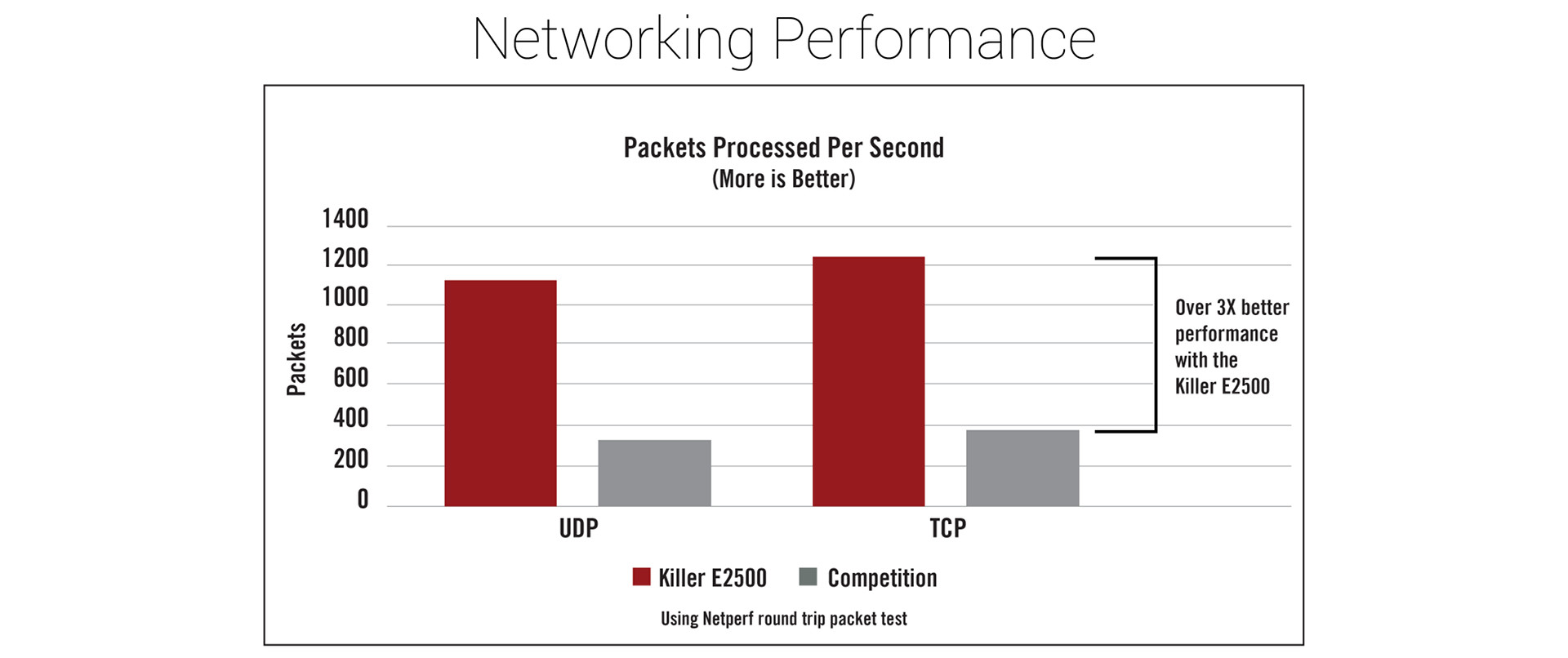

The EVGA Z270 CLASSIFIED K improves upon the dominant Z170 Classified K and adds the latest features for hardcore gamers and overclockers. Featuring the next-gen Intel® Z270 Express Chipset, this motherboard is built to crush the competition…and then some. The Z270 Classified K’s storage options keeps your data blazing fast on the latest SSD standards, including M.2, U.2 and is Intel® Optane™ Memory Ready. The Built-in Killer™ E2500 NIC prioritizes and reduces latency to keep you at the top of your game from the first match to the last. With the Creative Sound Core3D audio, even if you cannot see your opponents coming you’ll certainly be able to hear them. Finally, no Classified board would be complete without a newly-designed VRM and hardware design built for cutting-edge performance and overclockability.

Specifications

• Intel Z270 Express Chipset
• SLI – Up to 2-Way + PhysX

Storage Support

• 2 Native SATA Express 16Gb/s Ports
• 4 Native SATA 6Gb/s
• 4 Marvell SATA 6Gb/s
• 1 U.2 Port 32Gb/s

M.2 Support

• 2 Key M (110mm & 80mm)
• 1 Key E (32mm)

USB Support

• 4 USB 3.0
• 4 USB 3.0 (Header)
• 2 USB 2.0 (Header)
• 2 USB 3.1 (Type-A/Type-C)

• Memory Support – 4 DIMM Dual-Channel DDR4 3600MHz+ (Up to 64GB)
• Form Factor – EATX

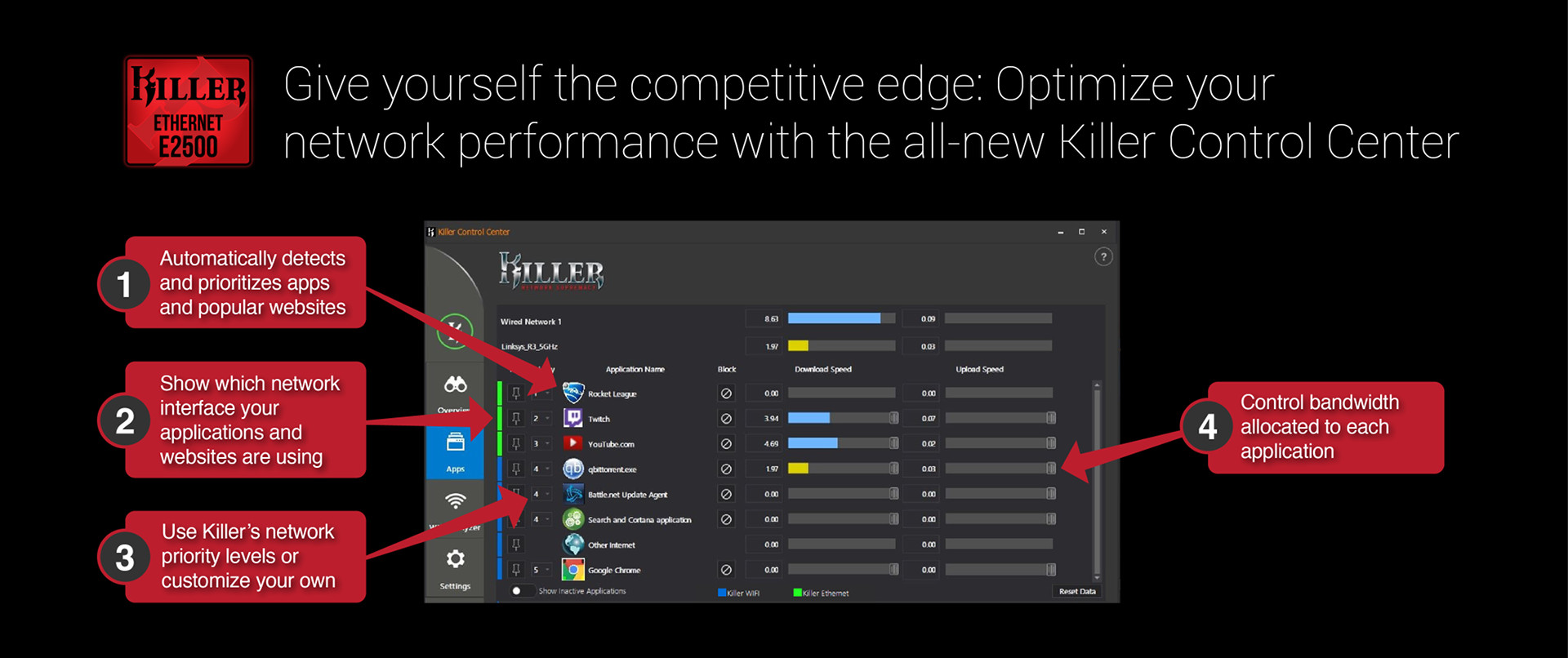

• Ethernet – Killer E2500 + Intel i219 Gigabit NIC
• Audio – Creative Sound Core3D Quad-Core Audio Processor + Optical
• PCB – 6 Layers
• Display Output – HDMI + DisplayPort

Key Features

• Highly-Efficient 13 Phase Digital VRM
• Onboard Power, Reset and Clear CMOS
• EVGA E-LEET X Tuning Utility
• Triple BIOS Support
• M.2 NVMe PCI-E SSD Support
• U.2 NVMe SSD Support
• Intel Optane Memory Ready
• Switchable DC / PWM Fan Control
• Onboard CPU Temperature Monitor
• 300% Increase in CPU Gold Content

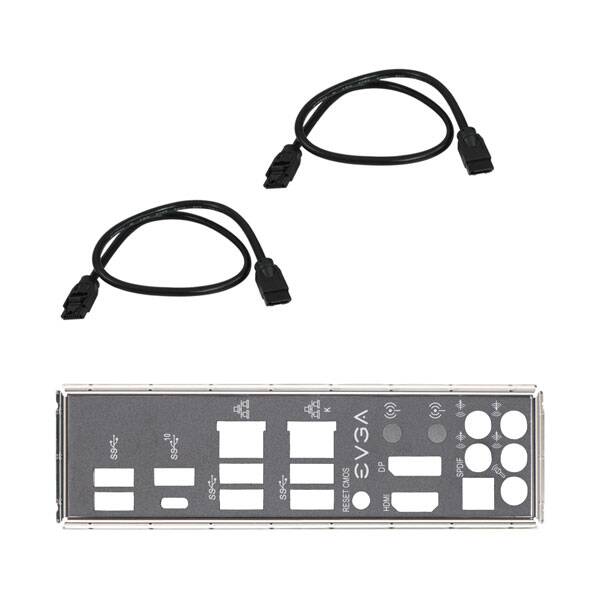

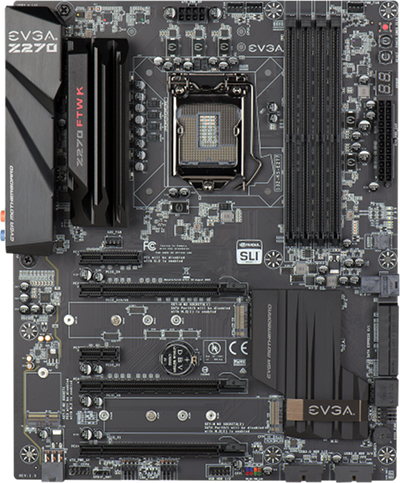

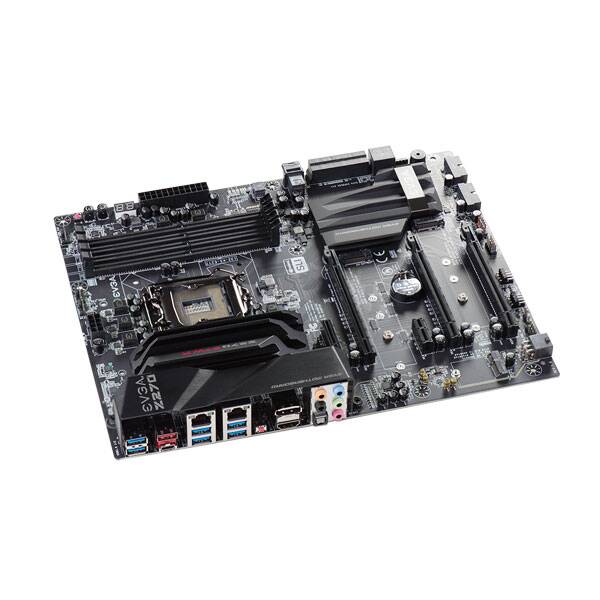

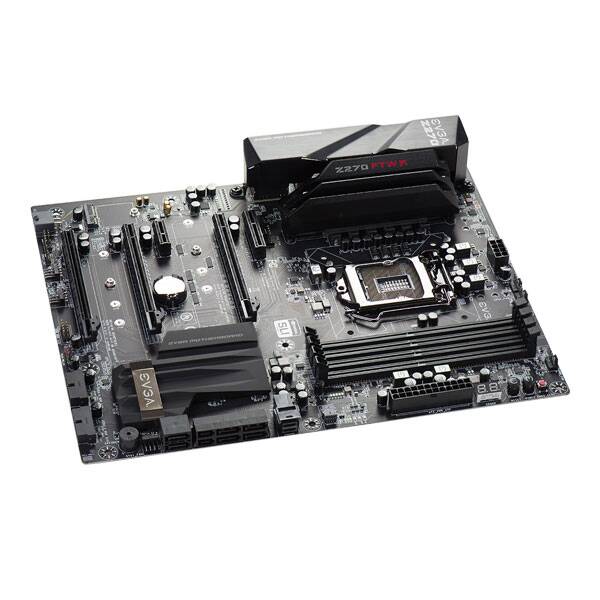

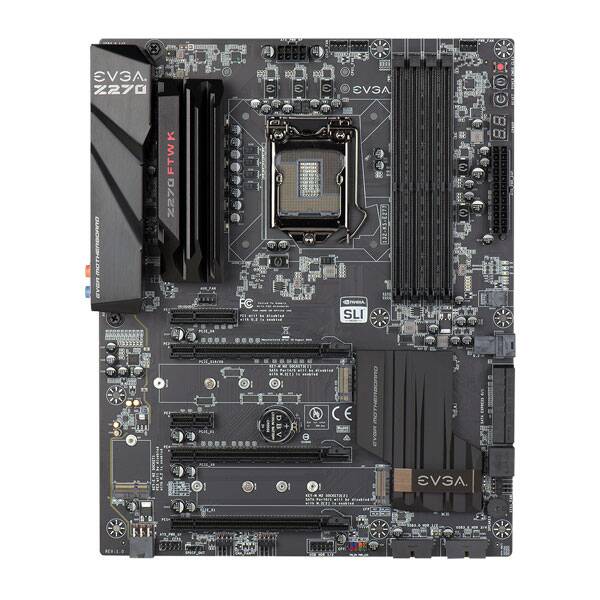

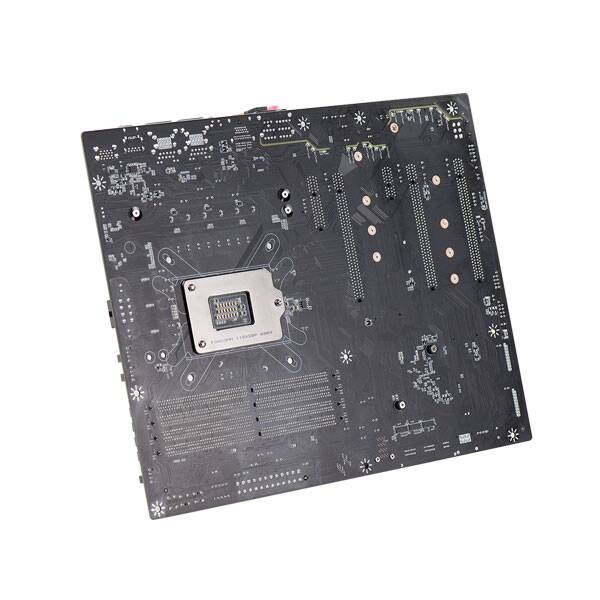

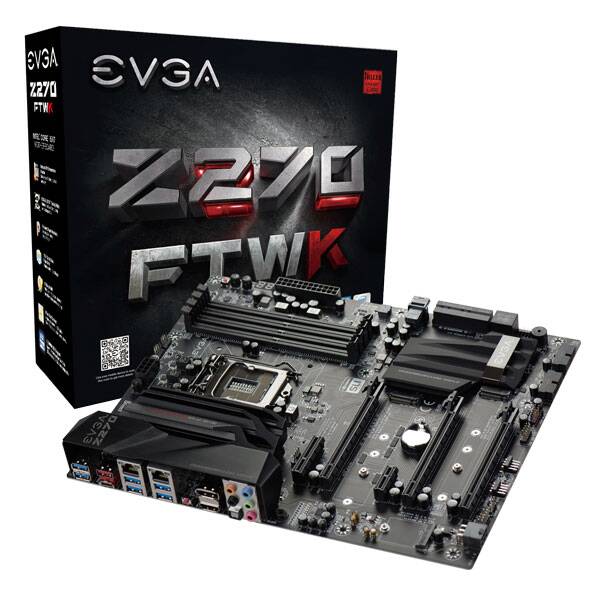

EVGA Z270 FTW K motherboard

Part Number: 132-KS-E277-KR

The EVGA Z270 FTW K improves upon the Z170 FTW to refine, redesign and redefine winning for gamers and overclockers everywhere. The EVGA Z270 FTW K supports up to 2-way SLI® + PhysX® to put your opponents in a world of hurt. A total of 4 DIMM slots support up to 64GB at 3600MHz+ to make sure nothing limits your performance. The Built-in Killer™ NIC prioritizes and reduces latency to keep you at the top of your game from the first match to the last. If that wasn’t enough, a newly-designed VRM provides the cleanest and most stable power to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content for improved signal quality to keep your system stable even during the longest of gaming sessions. The EVGA Z270 FTW K motherboard also has you covered for storage and features with 6 native 6.0Gb/s SATA ports, 2 SATA Express ports, 3 M.2 expansion slots, one U.2 port, and is Intel® Optane™ Memory Ready, along with native USB 3.1/3.0 support and 8 Channel HD Audio with Optical. If the EVGA Z270 FTW K doesn’t give you the edge you’re looking for, maybe it’s not the board...

Specifications

• Intel Z270 Express Chipset
• SLI – Up to 2-Way + PhysX

Storage Support

• 2 Native SATA Express 16Gb/s Ports
• 6 Native SATA 6Gb/s
• 1 U.2 Port 32Gb/s

M.2 Support

• 2 Key M (110mm)
• 1 Key E (32mm)

USB Support

• 6 USB 3.0
• 4 USB 3.0 (Header)
• 2 USB 2.0 (Header)
• 1 USB 3.1 Type C
• 1 USB 3.1 Type A

• Memory Support – 4 DIMM Dual-Channel DDR4 3600MHz+ (Up to 64GB)
• Form Factor – ATX
• Ethernet – Killer E2400 + Intel i219 Gigabit NIC
• Audio – 8 Channel HD + Optical
• PCB – 6 Layers
• Display Output – HDMI + DisplayPort

Key Features

• Highly-Efficient 11 Phase Digital VRM
• Onboard Power, Reset and Clear CMOS
• EVGA E-LEET X Tuning Utility
• M.2 NVMe PCI-E SSD Support
• U.2 NVMe SSD Support
• Intel Optane Memory Ready
• Switchable DC / PWM Fan Control
• Onboard CPU Temperature Monitor
• 150% Increase in CPU Gold Content

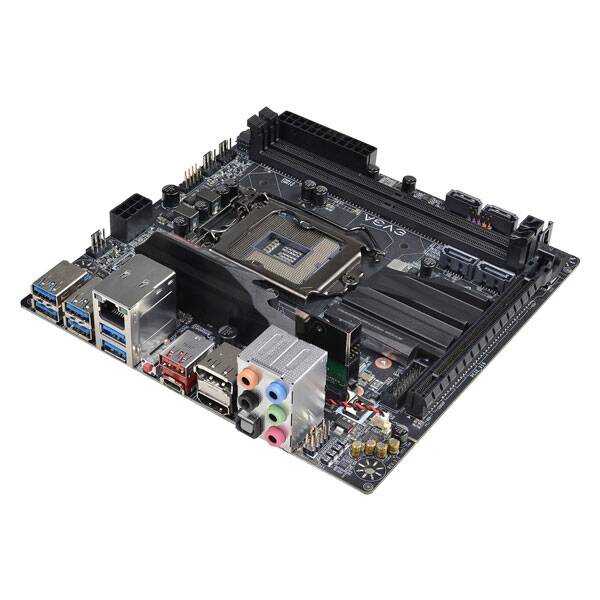

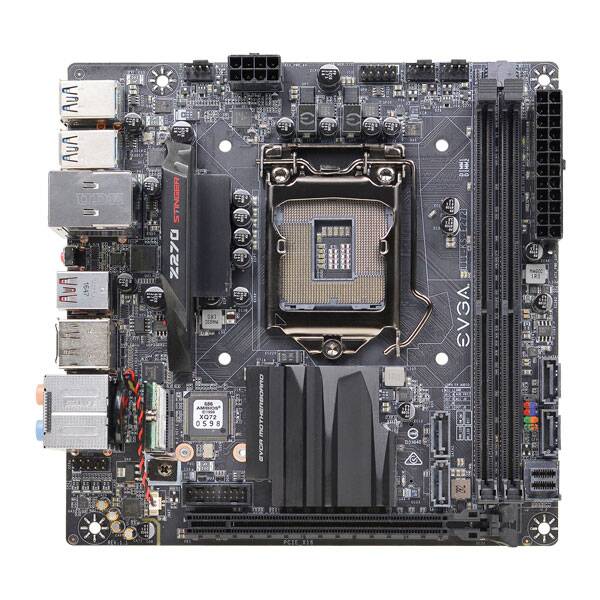

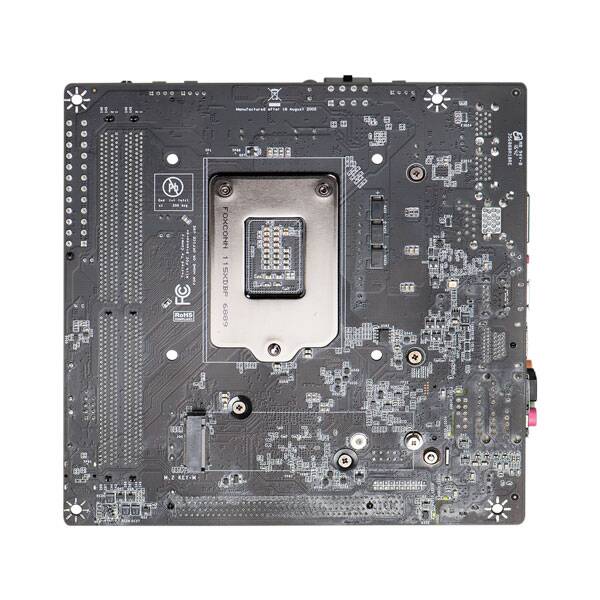

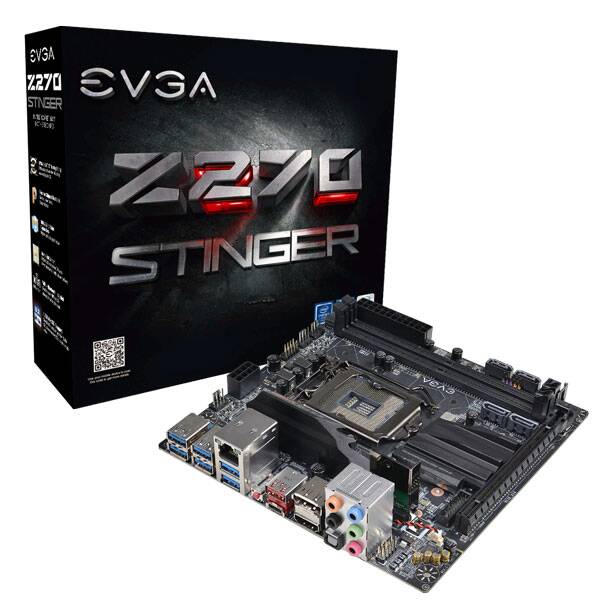

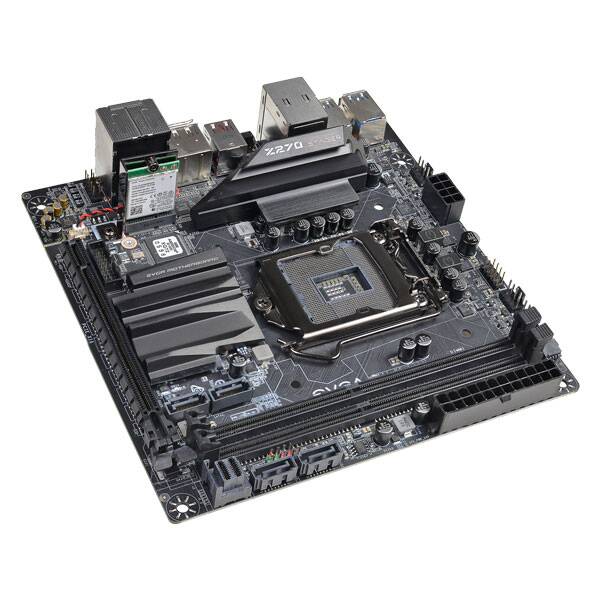

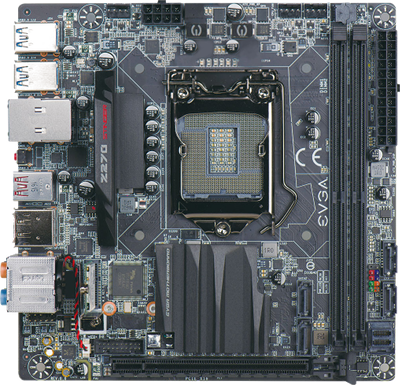

EVGA Z270 Stinger motherboard

Part Number: 111-KS-E272-KR

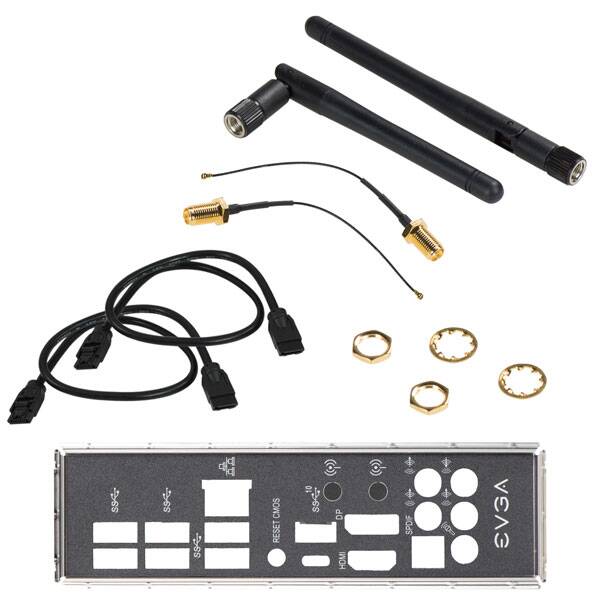

You could be forgiven for thinking the EVGA Z270 Stinger is a full-size motherboard, given the features crammed into its mini-ITX frame. You wouldn’t be forgiven, however, if you judged its performance based on its size. Featuring a next-gen Intel® Z270 Express Chipset with DDR4 3600MHz+ memory support and a 10-layer PCB, this motherboard is built to erase the line between a HTPC and heavy-duty gaming. With four native SATA 6G ports, M.2, U.2 and is Intel® Optane™ Memory Ready, you won’t be left wanting for storage or speed options. Along with USB 3.1 Type-A, USB 3.1 Type-C, 8 native USB 3.0, and included Dual-band WiFi + Bluetooth for versatility, you won’t be stung by regret.

Specifications

• Intel Z270 Express Chipset

Storage Support

• 4 Native SATA 6Gb/s
• 1 U.2 Port 32Gb/s

M.2 Support

• 1 Key M (80mm)
• 1 Key E (32mm)

USB Support

• 6 USB 3.0
• 2 USB 3.0 (Header)
• 2 USB 2.0 (Header)
• 1 USB 3.1 Type C
• 1 USB 3.1 Type A

• Memory Support – 2 DIMM Dual-Channel DDR4 3600MHz+ (Up to 32GB)
• Form Factor – mITX
• Ethernet – Wireless 802.11AC Dual Band + Intel i219 Gigabit NIC
• Audio – 8 Channel HD + Optical
• PCB – 10 Layers
• Display Output – HDMI + DisplayPort

Key Features

• Highly-Efficient 6 Phase VRM
• Onboard Clear CMOS
• EVGA E-LEET X Tuning Utility
• M.2 NVMe PCI-E SSD Support
• U.2 NVMe SSD Support
• Intel Optane Memory Ready
• Switchable DC / PWM Fan Control
• 150% Increase in CPU Gold Content
