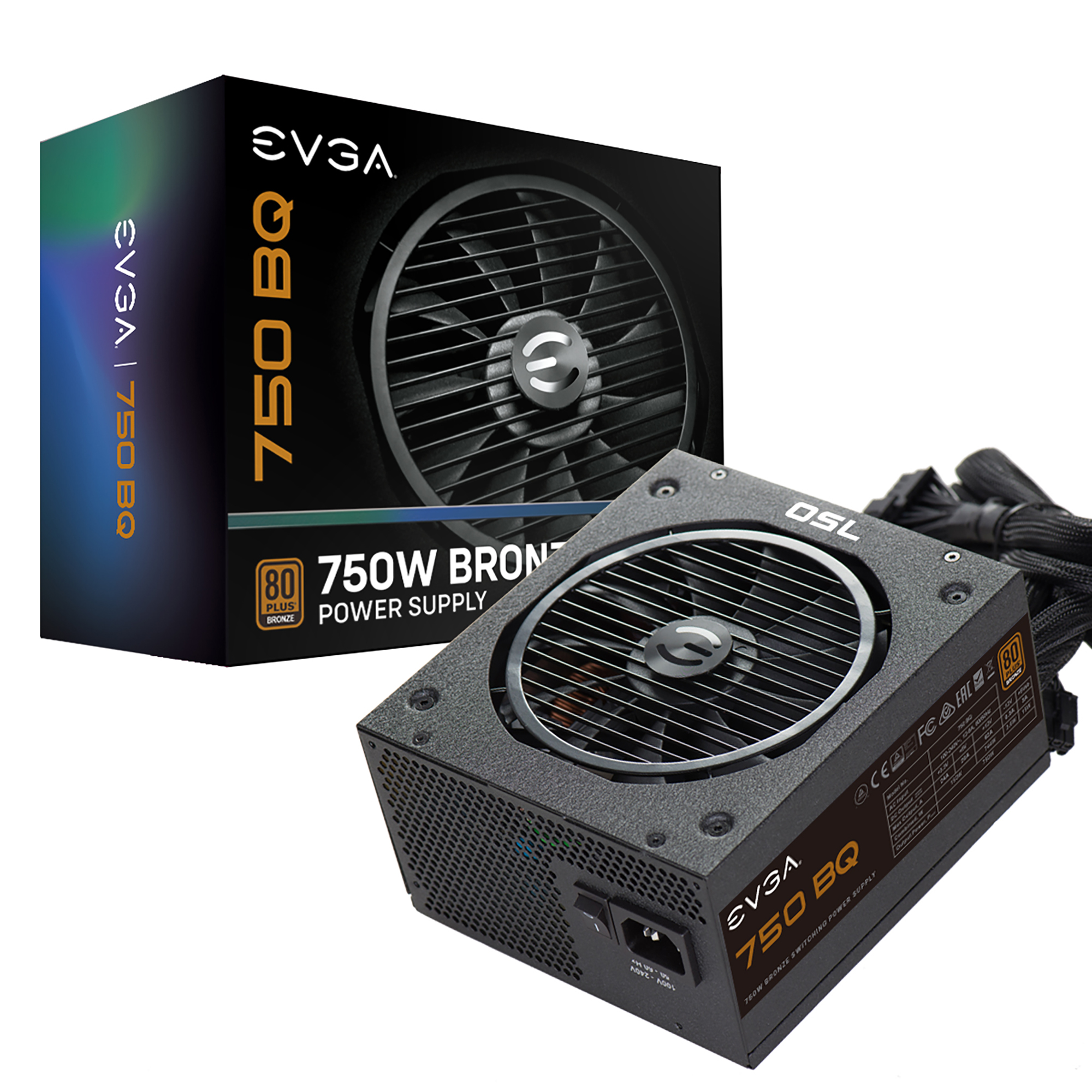

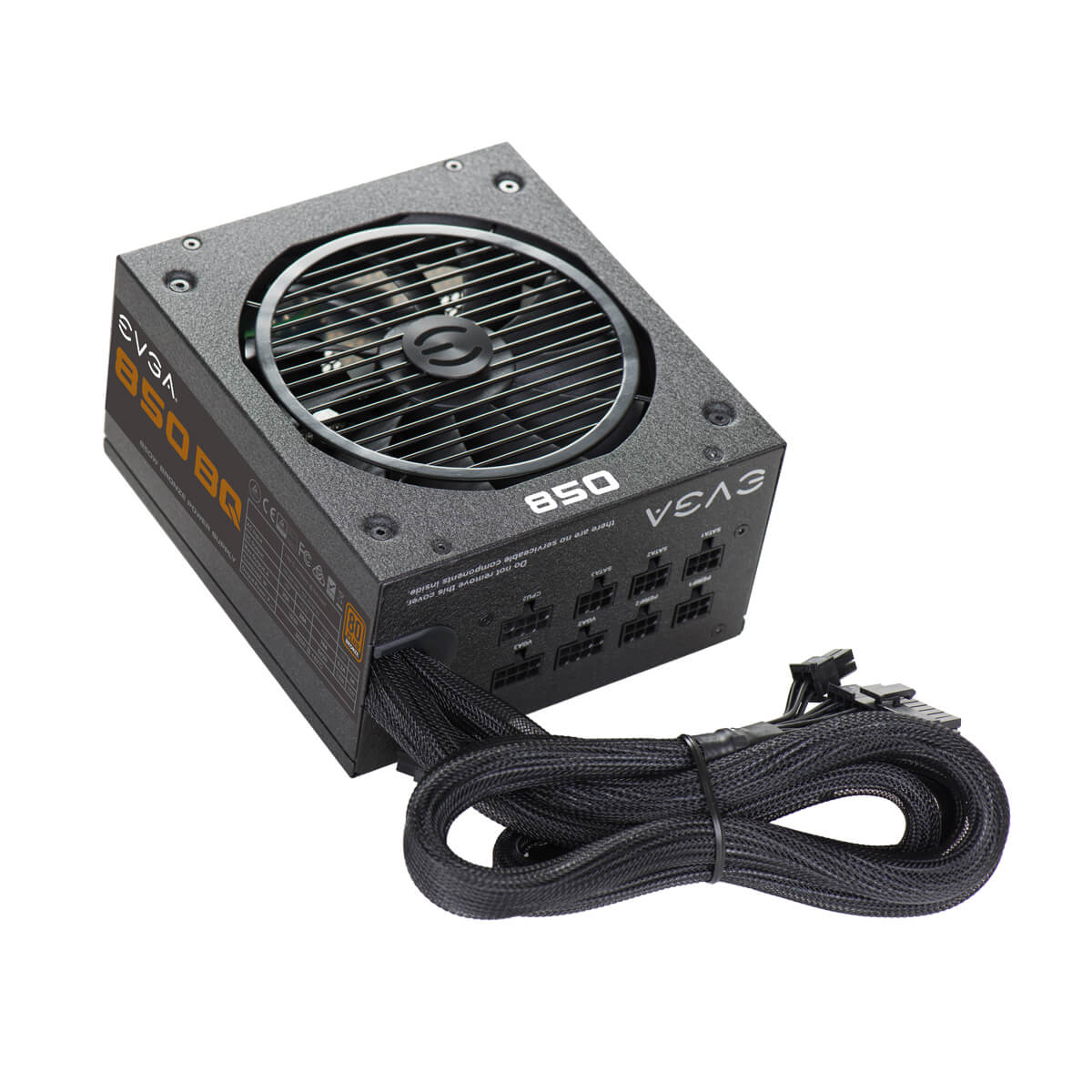

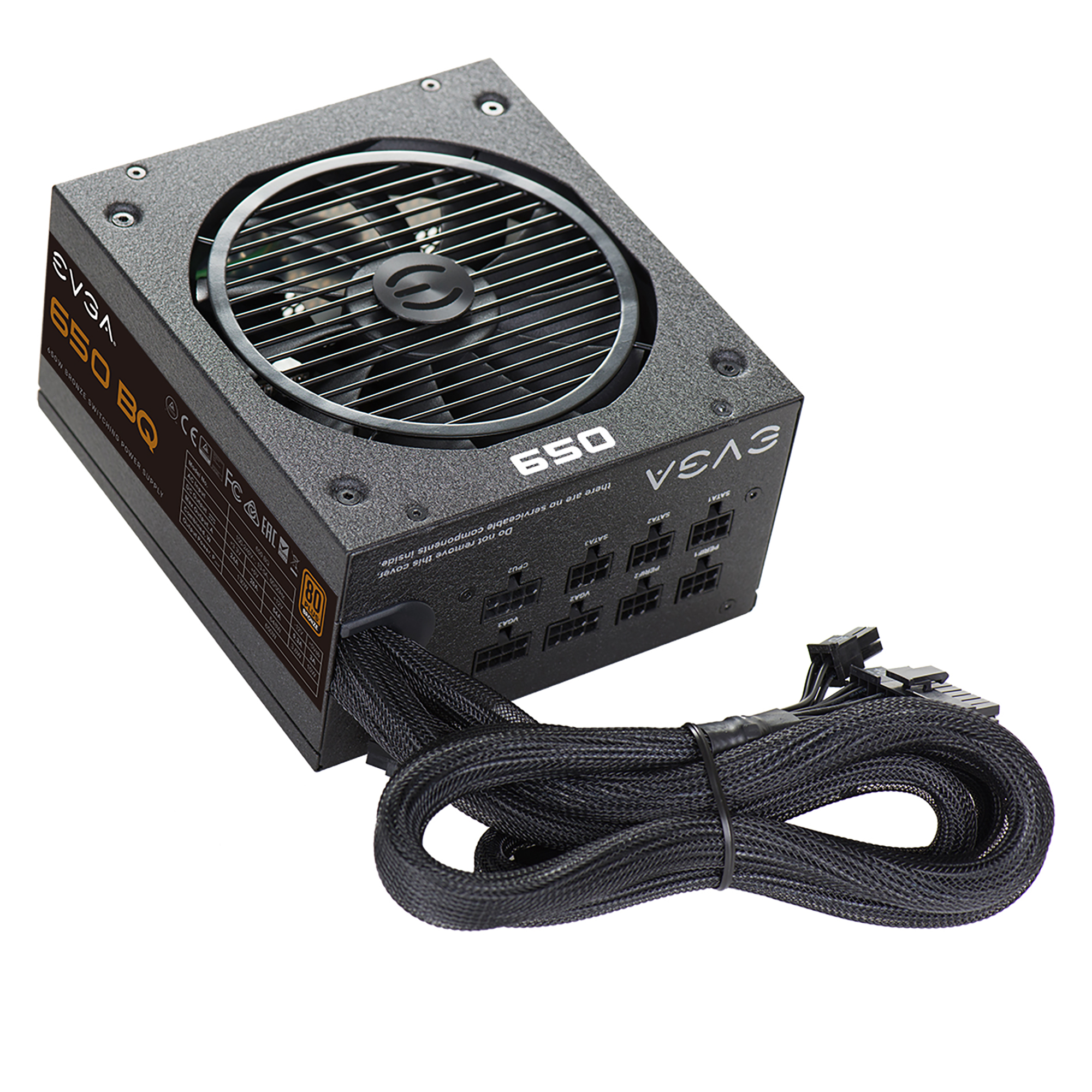

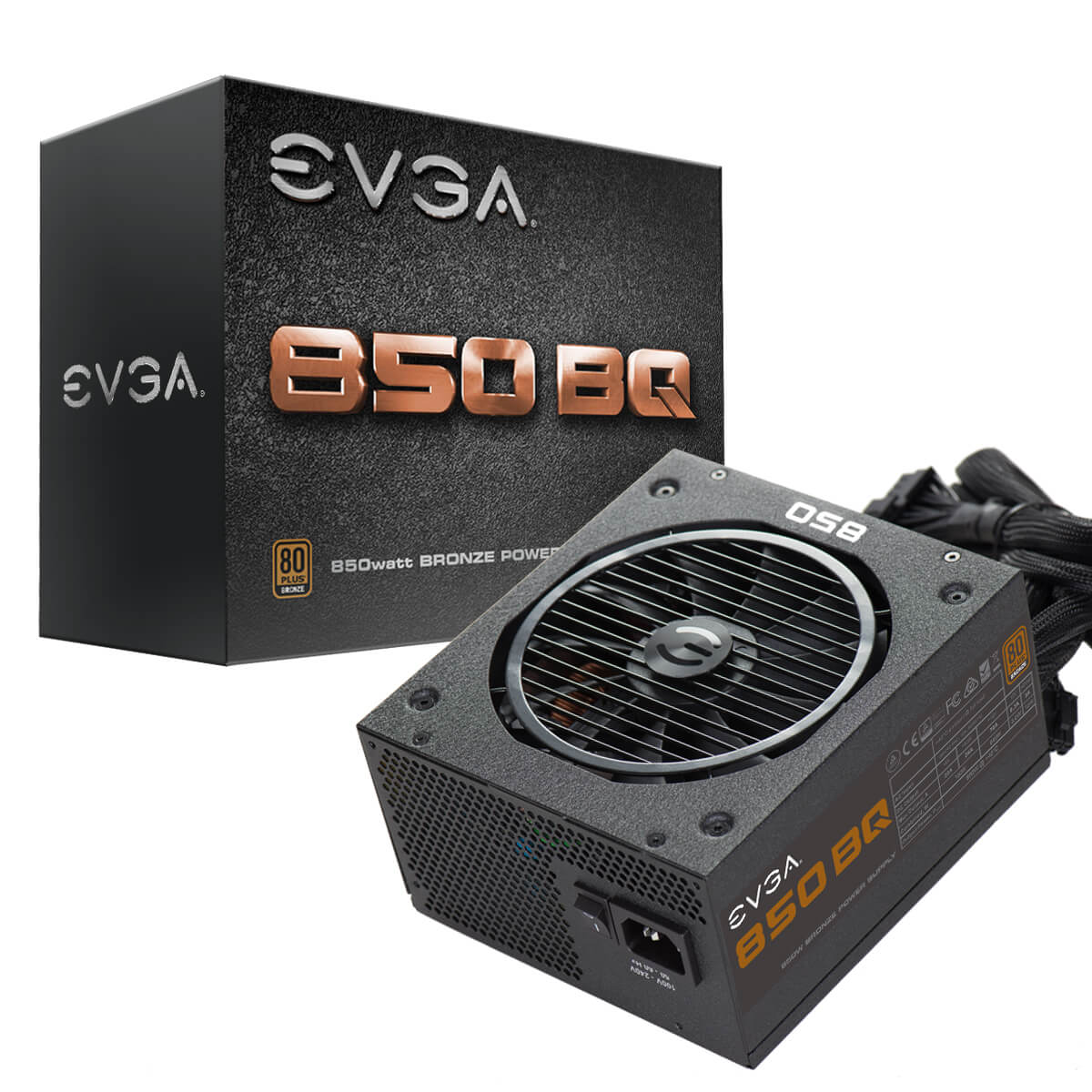

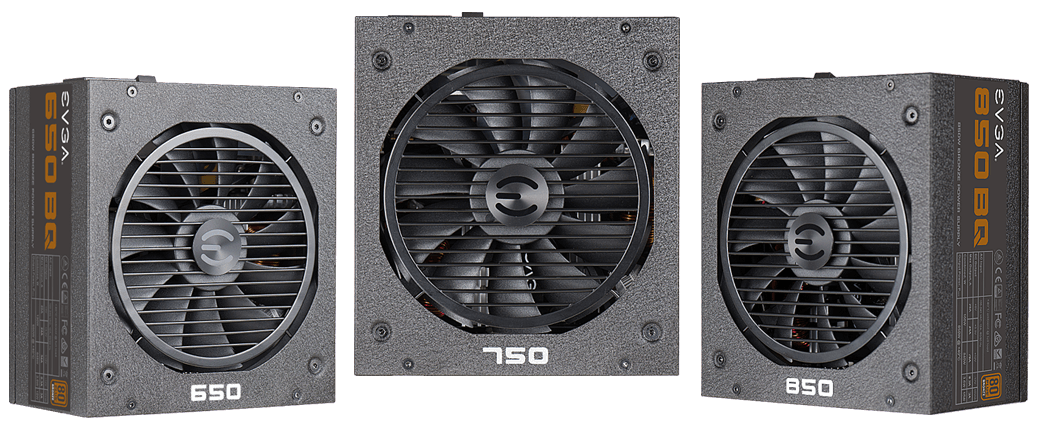

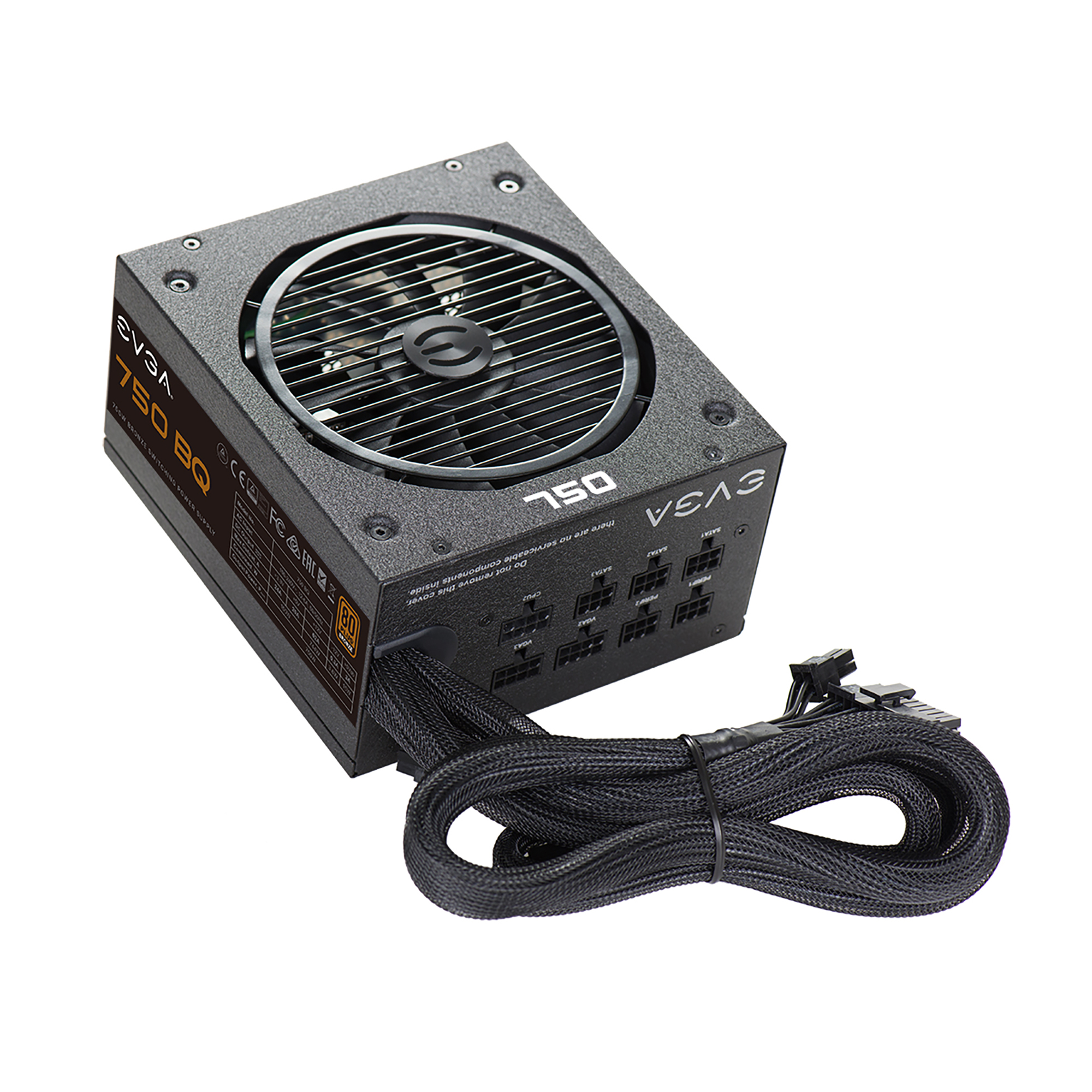

EVGA 850, 750 and 650 BQ Power Supplies
Introducing the next generation in value; the EVGA BQ series. These power supplies take some of the best features from EVGA's award winning power supply lineup, like a 140mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.
Excellent Performance
85% efficiency or higher under typical loads and high quality Japanese brand capacitors ensure long-term reliability.

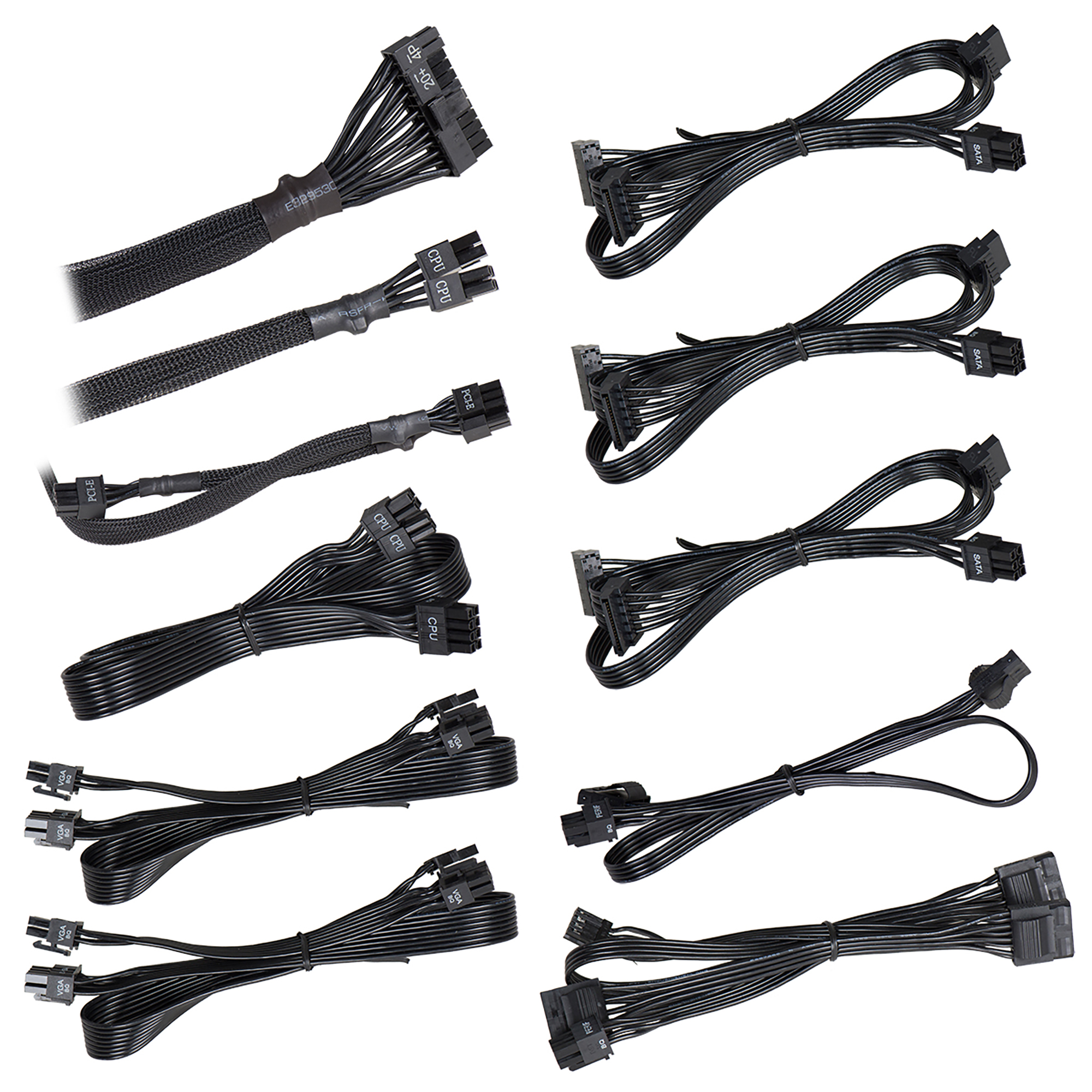

Modular Design

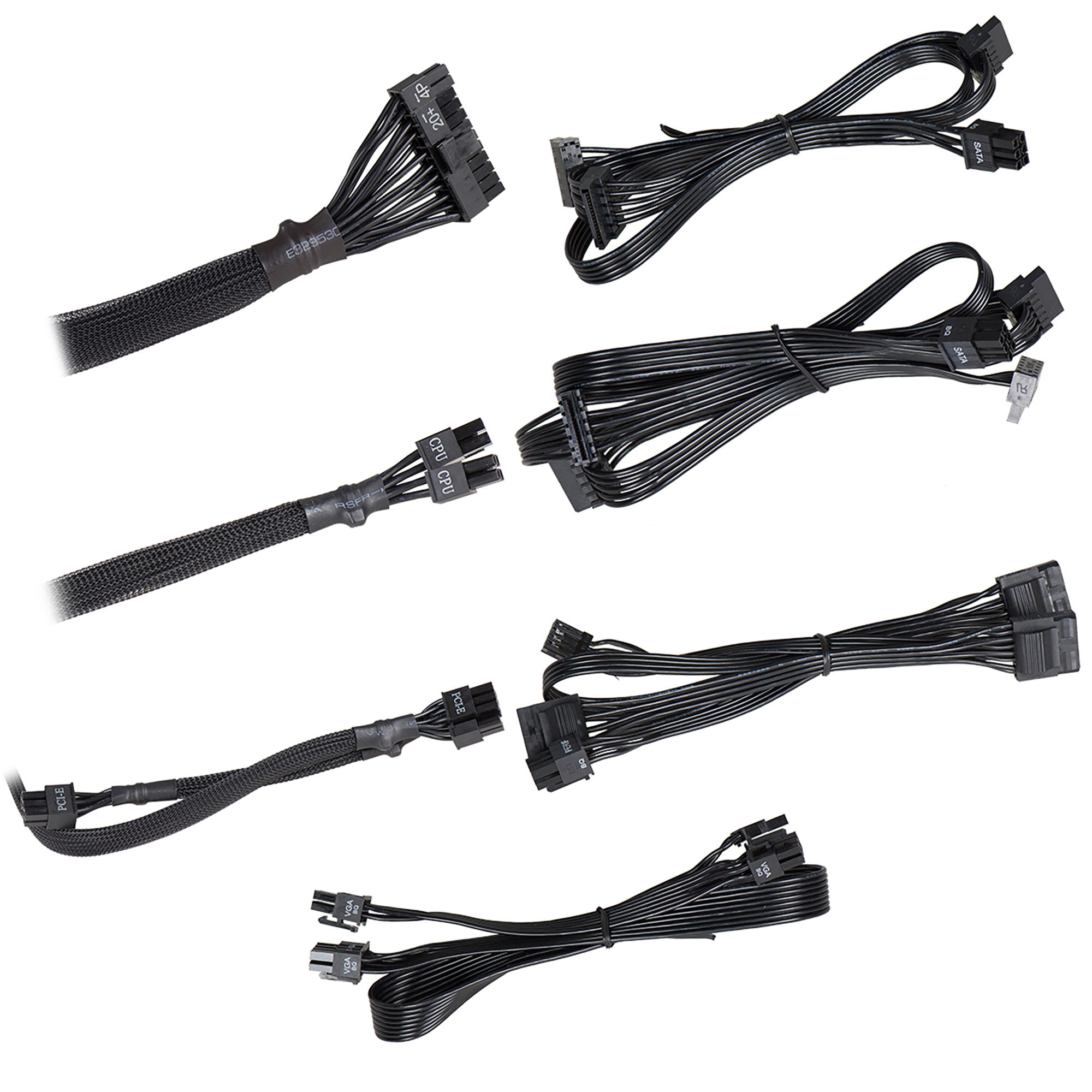

Semi-modular design allows you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.
Features
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

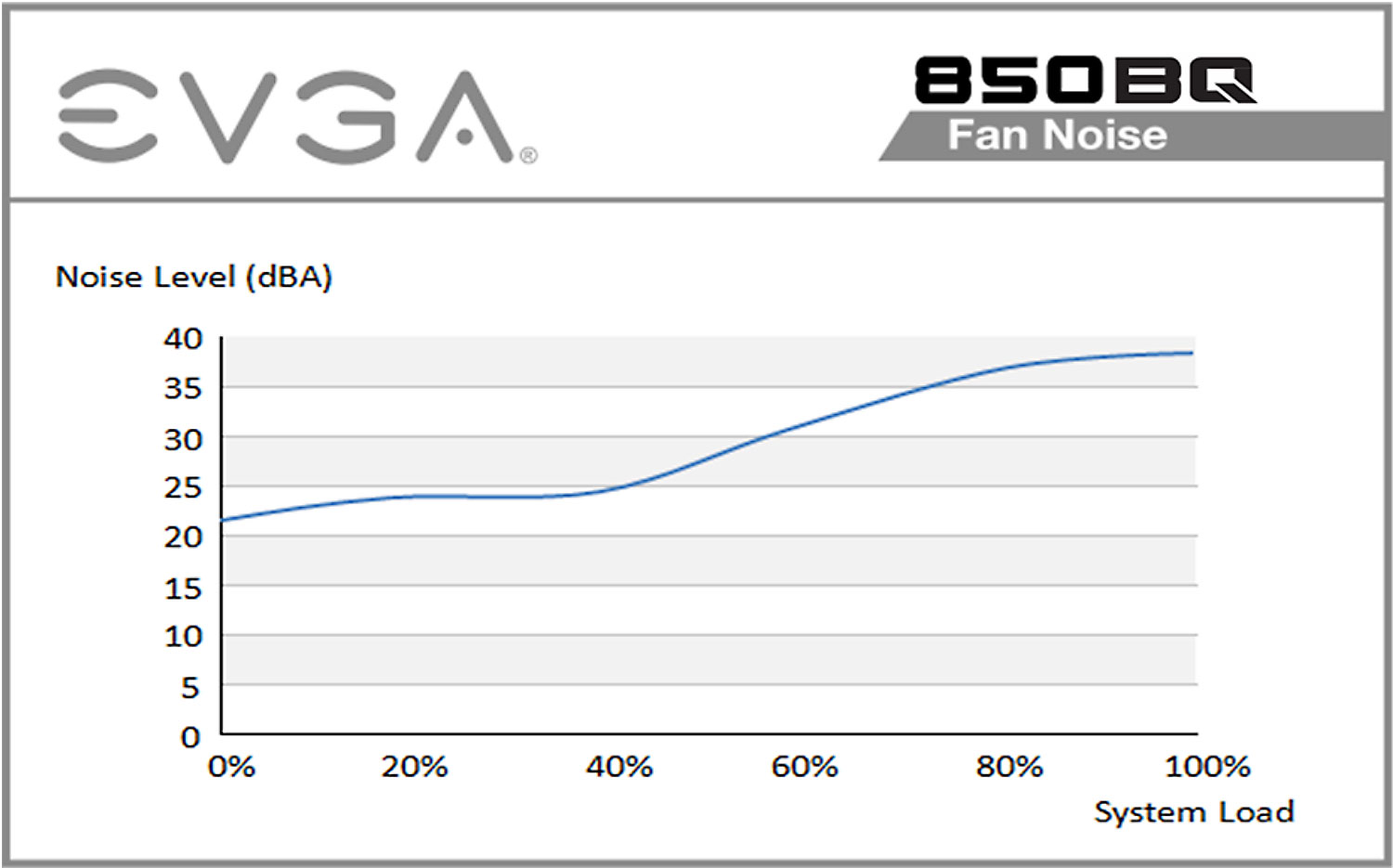

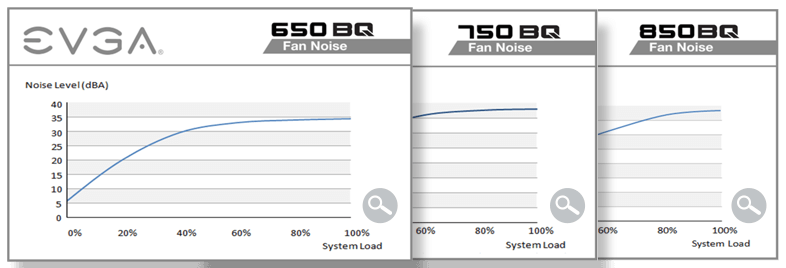

- Quiet and Intelligent Auto Fan for near-silent operation
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)

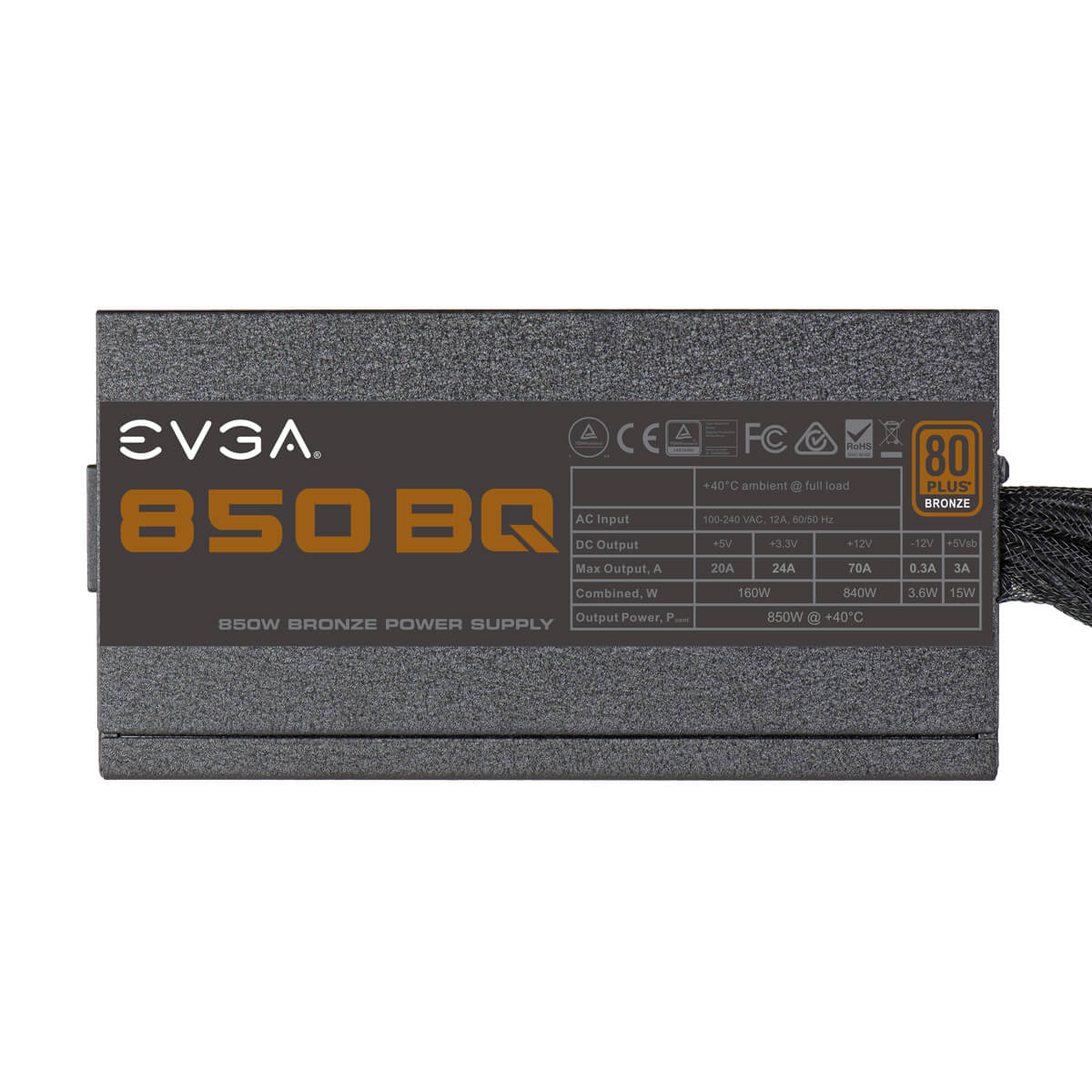

| AC Input | 100-240 VAC, 12A, 60/50 Hz | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 24A | 70A | 0.3A | 3A |
| Combined | 160W | 840W | 3.6W | 15W | |
| Output Power | 850W | ||||
Features
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)

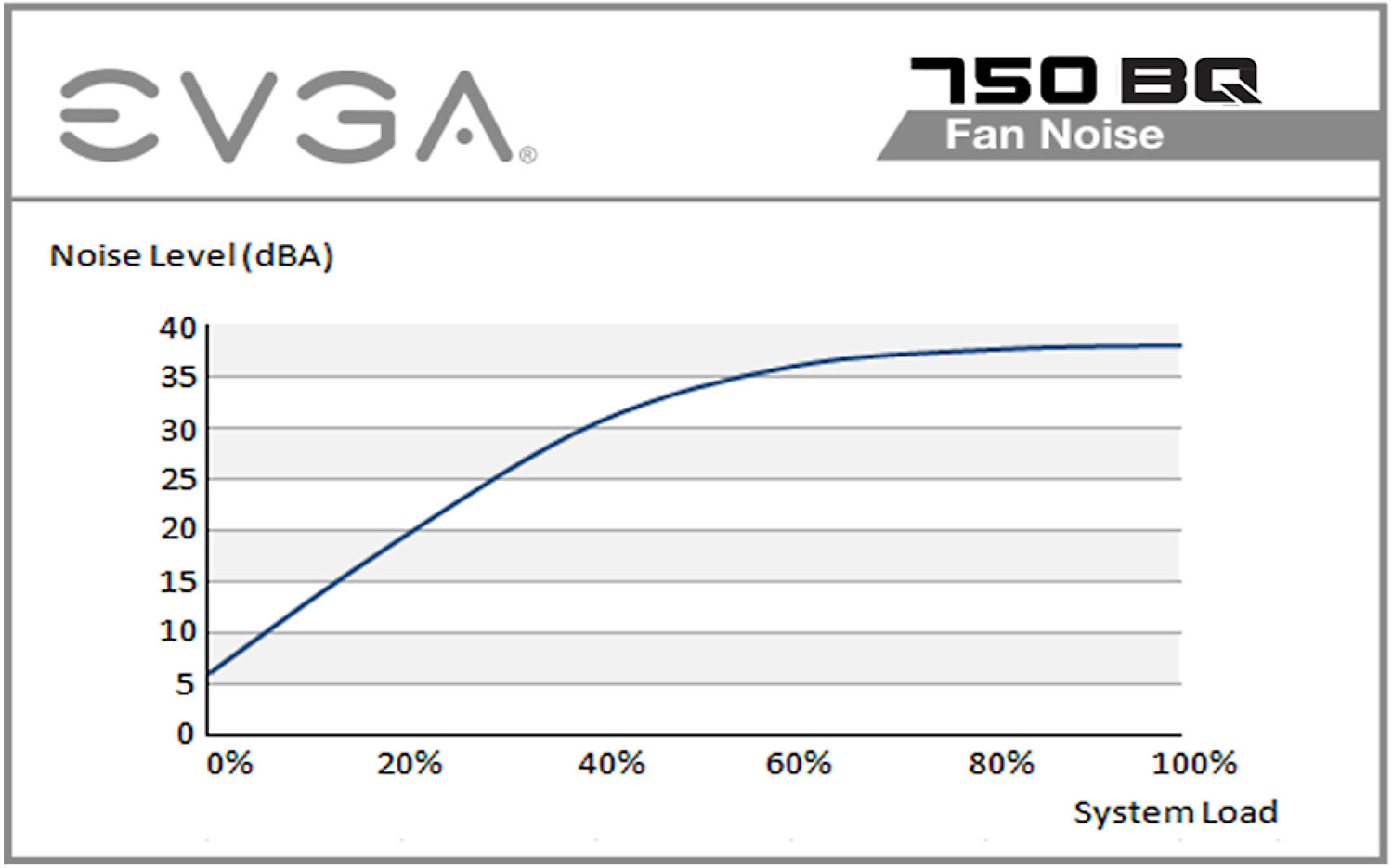

- Quiet and Intelligent Auto Fan for near-silent operation
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)

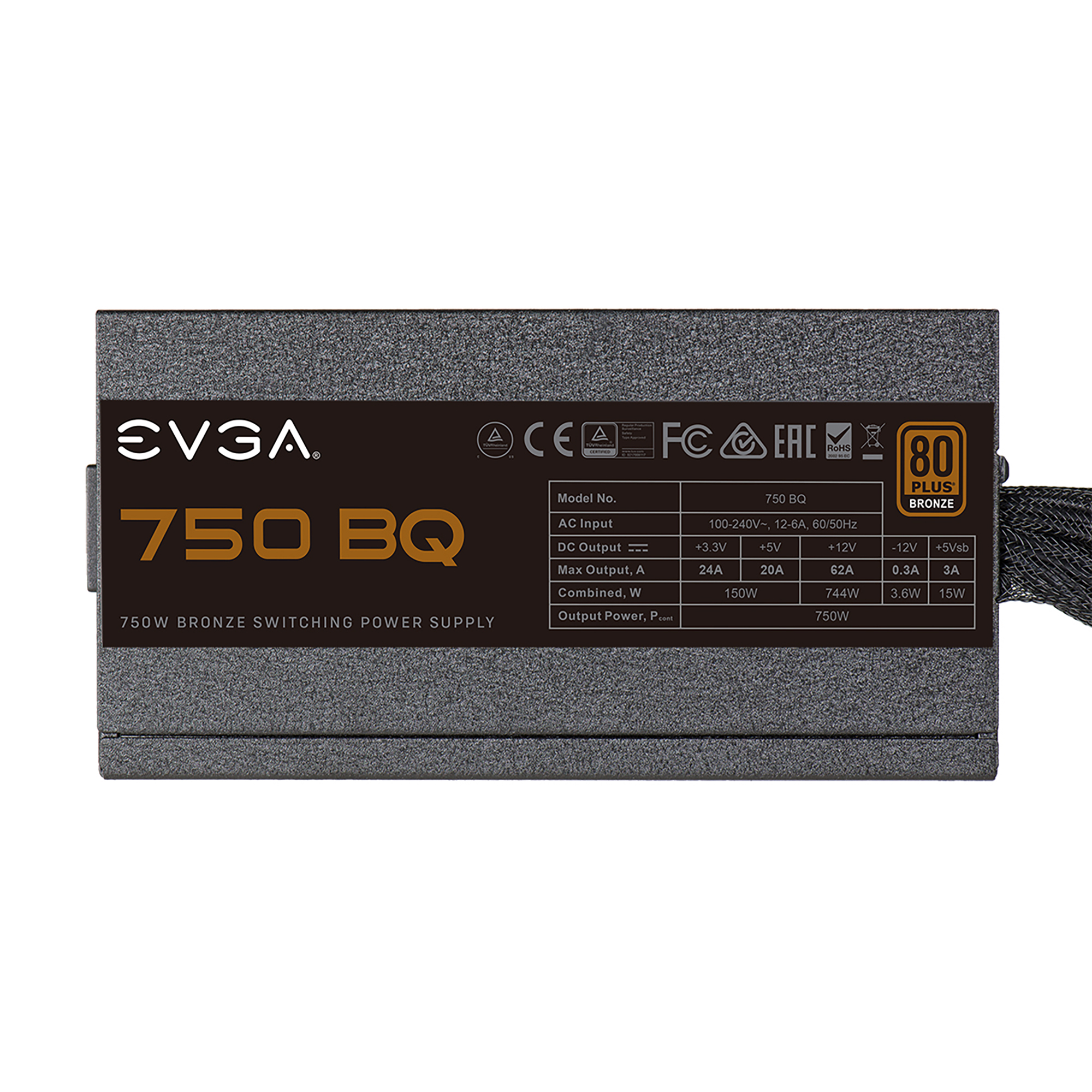

| AC Input | 100-240 VAC, 10A, 60/50 Hz | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 24A | 62A | 0.3A | 3A |
| Combined | 150W | 744W | 3.6W | 15W | |
| Output Power | 750W | ||||
Features
- 5 Year Warranty and unparalleled EVGA Customer Support
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- Quiet and Intelligent Auto Fan for near-silent operation
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
| AC Input | 100-240 VAC, 10A, 60/50 Hz | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 24A | 54A | 0.3A | 3A |
| Combined | 130W | 648W | 3.6W | 15W | |
| Output Power | 650W | ||||

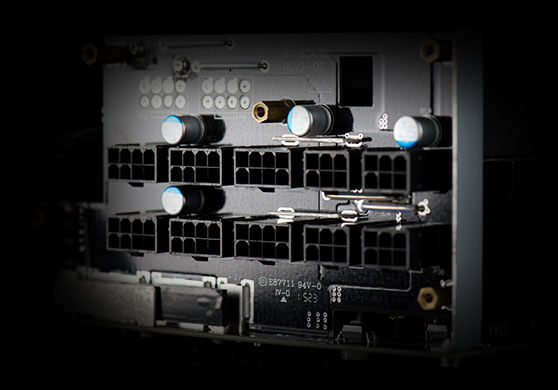

Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

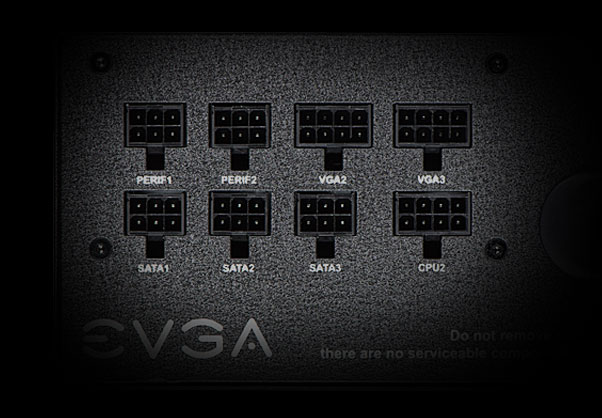

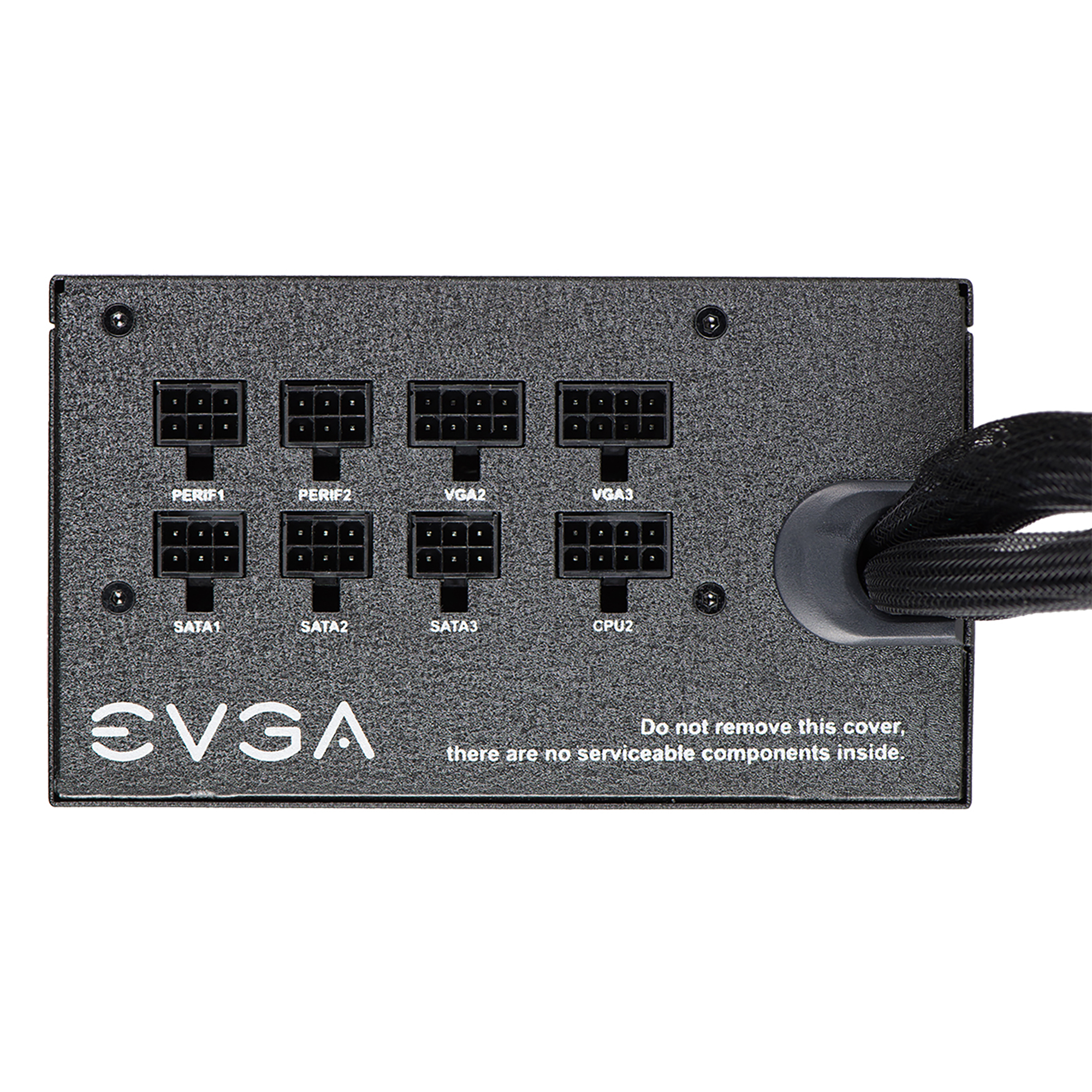

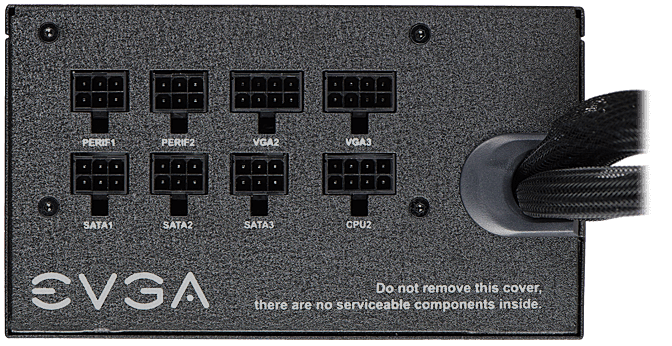

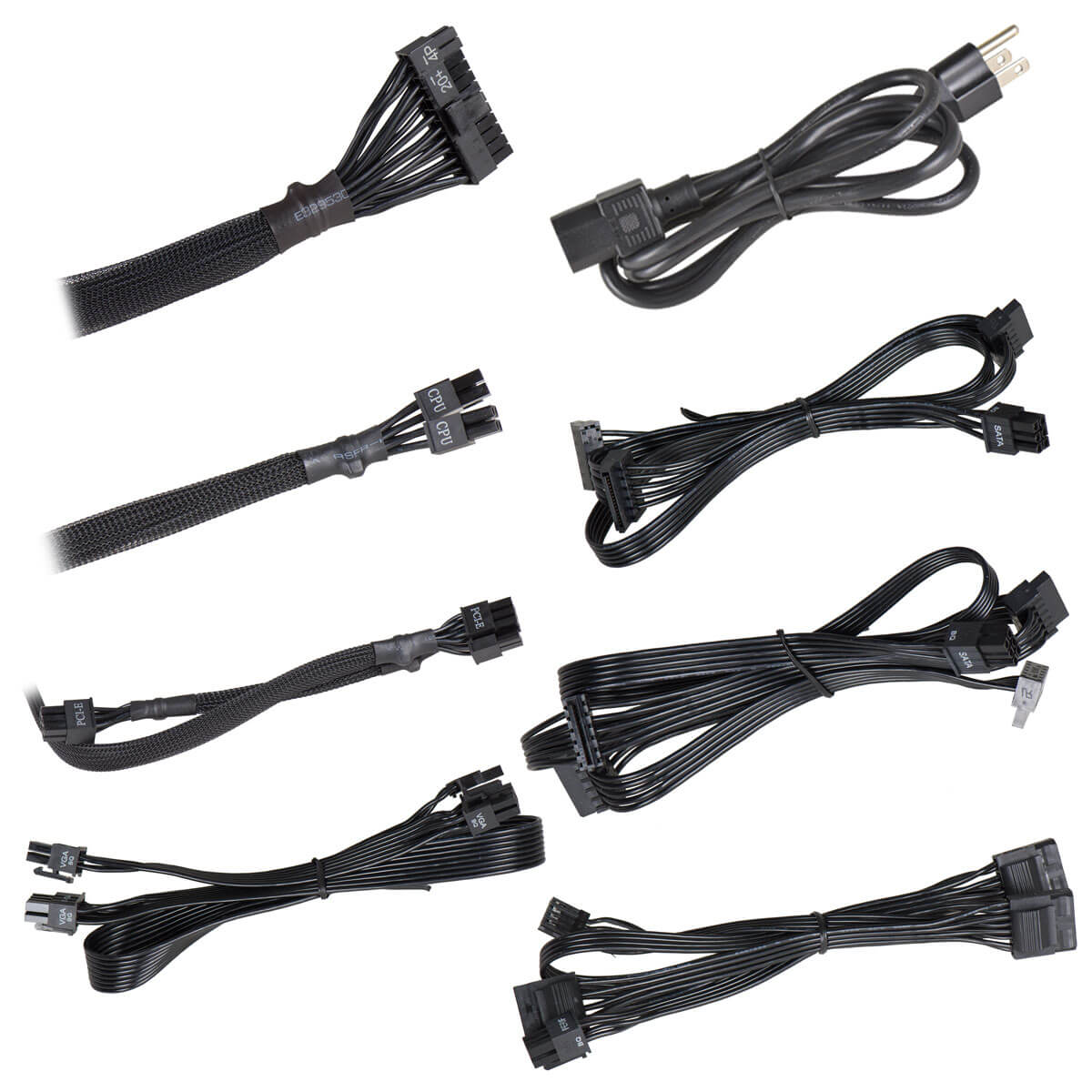

Modular
Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.

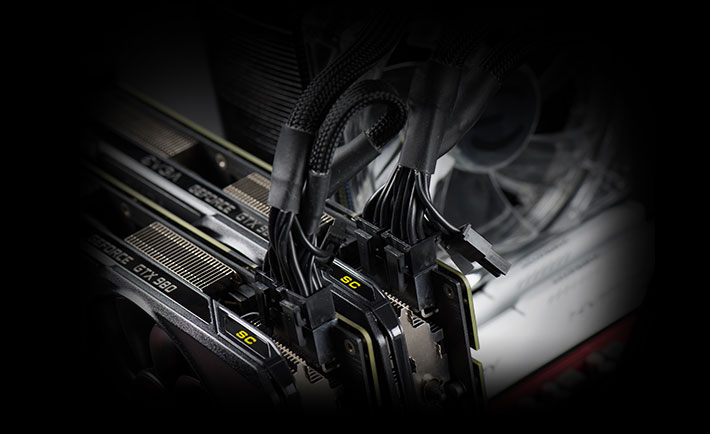

NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The EVGA BQ gives you the power you need to drive these demanding systems and achieve the best overclocks.

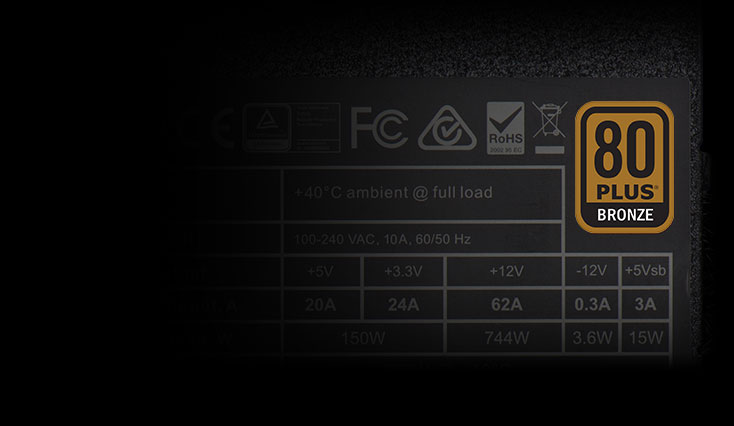

80 Plus Bronze Rated Efficiency
80 Plus Bronze certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical loads these power supplies are 85% efficient or higher.
