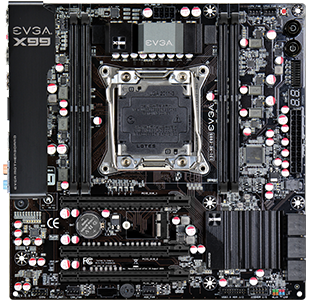

Micro
Academy

Engineered for the Enthusiast

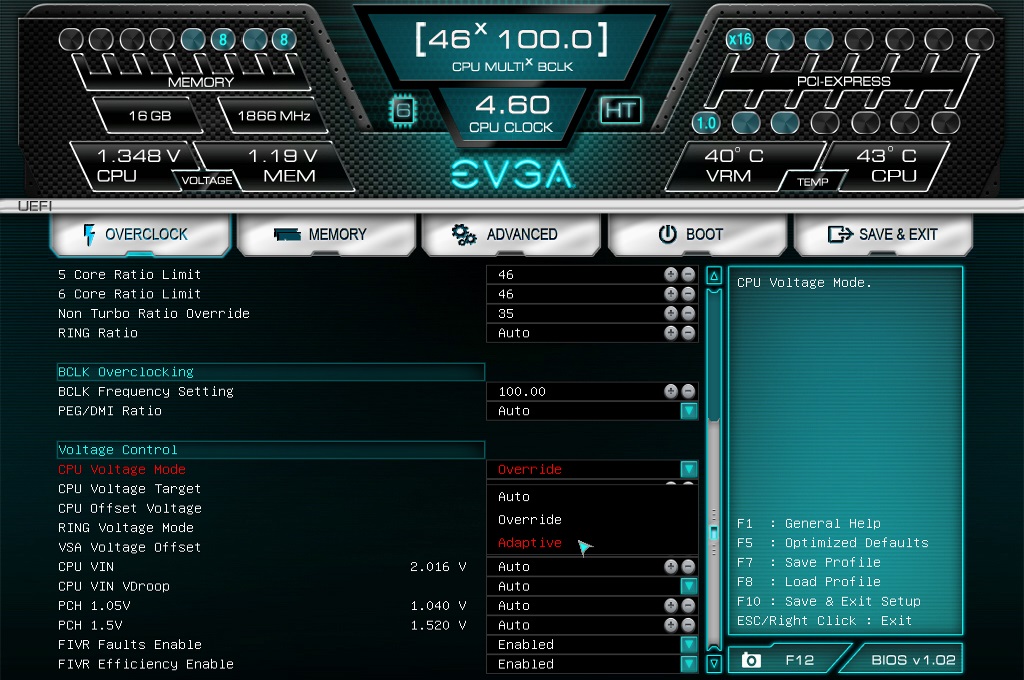

The EVGA X99 lineup has arrived. EVGA has rebuilt its motherboard lineup for the next generation Intel® platform, offering a stunning set of features and overclocking support. These motherboards also feature EVGA's new GUI BIOS that focuses on the best overclocking support, functionality, and are straight and to the point, the way a modern BIOS should be.

X99 Platform

Intel® X99 Platform Unlocks Incredible Performance

Intel® X99 Chipset

Supports up to 16 CPU threads (8-core)
First desktop platform to support DDR4 memory
Up to 40 PCI-E 3.0 lanes
Native SATA 6.0Gb/s & USB 3.0
Up to 20MB CPU Cache on 8 Core CPU

Intel® Core™ i7-5960X vs. Intel® Core™ i7 4960X

Game Physics and AI up to 14% FASTER (3DMark Fire Strike Physics Extreme)
4K Video Editing up to 20% FASTER (Adobe Premiere Pro CC)
3D Rendering up to 32% FASTER (CINEBENCH 15 X)

Intel® Core™ i7-5960X vs. Intel® Core™ i7 4790K

Multithreaded Performance up to 79% FASTER (SPECint*_rate_base2006)
4k to 1080p Transcoding up to 69% FASTER (Handbrake)

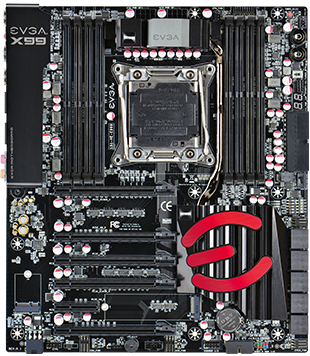

EVGA X99 Classified Motherboard

Part Number: 151-HE-E999-KR

The EVGA X99 Classified was engineered from the ground up to be the best overclocking motherboard on the planet. It all starts with power. Dual 8 PIN CPU power inputs provide up to 600W of dedicated power for the CPU, along with a highly efficient 10-phase Digital VRM providing the cleanest power to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content. A total of 8 DIMM slots support up to 128GB of DDR4 memory, and a 4 layer memory T-routing design allows for extreme memory speeds such as 3200MHz+* (OC). The PCI-E layout is optimized for improved lane distribution and better performance, and with native support for NVIDIA 4-Way SLI, this is the ultimate platform for the enthusiast.

Auto-Notify

View Spec Sheet

View Video

Specifications

Chipset – Intel® X99 Express
SLI – Up to 4-Way SLI
SATA – 10 Native SATA 6.0Gb/s Ports
USB – 6 Native USB 3.0 / 8 USB 2.0
Memory – 8 DIMM Quad-Channel DDR4 3200MHz+* (OC) (Up to 128GB)
Capacitors – 100% Solid State
Form Factor – EATX
Ethernet – 2x Intel® Gigabit NIC
Audio – Creative Sound Core3D Quad-Core Audio Processor
M.2 Socket Slot E and Slot M
PCB – 8 Layers

Features

Highly Efficient 10-phase Digital VRM
Onboard Power, Reset and Clear CMOS
PCI-E Disable Switches
EVGA E-LEET X Tuning Utility
Triple BIOS Support
Onboard CPU Temp Monitor
150% Increased Gold Content
EZ Voltage Read Points
8+8 PIN CPU Power Input – Dedicated 600W

External I/O

6x USB 2.0
4x USB 3.0
2x Gigabyte LAN
Creative Sound Core3D Quad-Core Audio Processor

Internal I/O

1x USB 2.0 Header (2 Ports)
1x USB 3.0 Header (2 Ports)
10x SATA3/6G Ports

Gallery

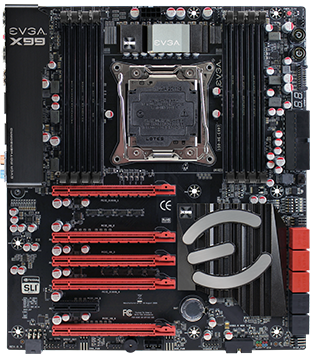

EVGA X99 FTW Motherboard

Part Number: 150-HE-E997-KR

The EVGA X99 FTW was engineered from the ground up to win. A highly efficient 8-phase Digital VRM providing the cleanest power to the CPU possible, fed through a CPU socket that has 1.5X the amount of gold content. A total of 8 DIMM slots support up to 128GB of DDR4 memory, and a 4 layer memory T-routing design allows for extreme memory speeds such as 3200MHz+* (OC). The PCI-E layout is optimized for improved lane distribution and better performance, and with native support for NVIDIA 4-Way SLI, this is the ultimate platform for the performance user.
