SuperNOVA 1200 P2 Power Supply
Platinum Performance
Introducing the EVGA SuperNOVA 1200 P2 power supply. This power supply raises the bar with 1200W of continuous power delivery and 92% efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1200 P2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
Features
- 80 PLUS Platinum high efficiency power supply certified – 50% load (92% Efficiency)
- Superior vertical double layer main transformer increases power output
- 100% highest quality Japanese Nippon Chemi-Con solid state capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Quiet and Intelligent Auto Fan for near-silent operation
- High Amperage Single-Rail Design for maximum power and efficiency
- Over Power/Under Power/Over Voltage/Short Circuit/Over Current protection built in
- EVGA's unparalleled Customer Support
- Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
- An outstanding 10 Year Warranty
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)

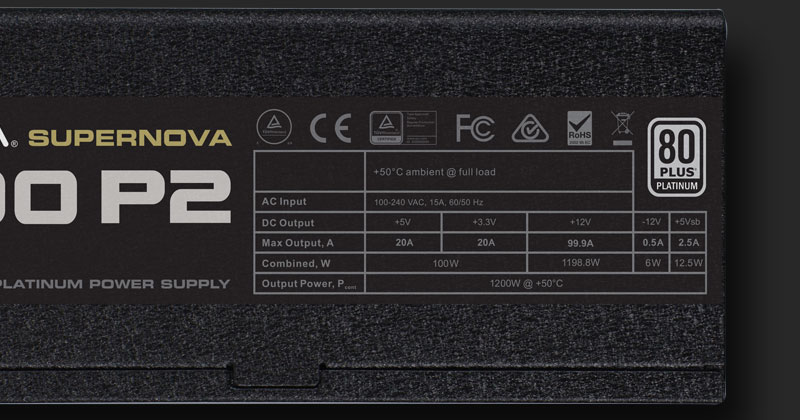

| AC Input | 100 - 240 VAC, 15A, 50 - 60 Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 20A | 99.9A | 0.5A | 2.5A |
| Combined | 100W | 1198.8W | 6W | 12.5W | |
| Output Power | 1200W @ +50C | ||||
EVGA SuperNOVA 1200 P2 Academy
The EVGA SuperNOVA 1200 P2 is the latest addition to the award-winning EVGA Power Supply line up. Bringing with it, a fully modular interface, Japanese capacitors, high quality near silent dual ball bearing fan and 1200 watts of continuous power. It also features a single, powerful +12 volt rail to maximize stability and compatibility. The EVGA SuperNOVA 1200 P2 also has NVIDIA SLI and 80 Plus Platinum Rating certification. You can also feel secure knowing that EVGA power supplies have a host of power protections to keep your hardware safe! Learn more below:
Platinum Rated Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 92% efficient or higher.

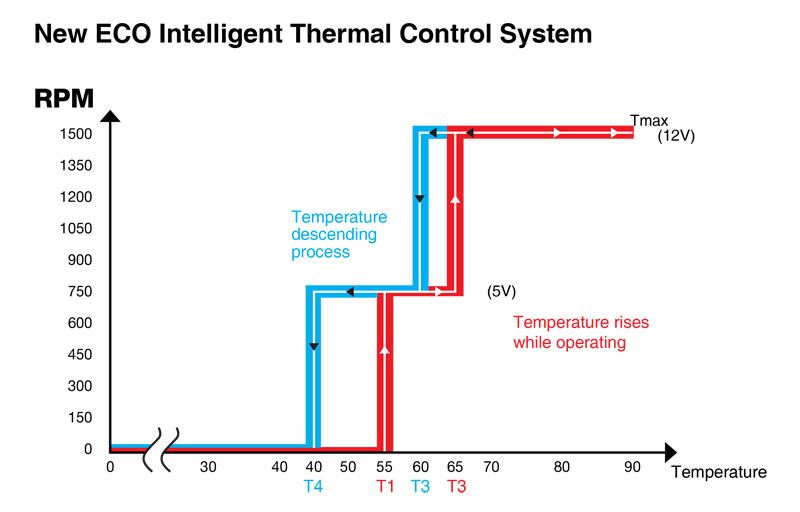

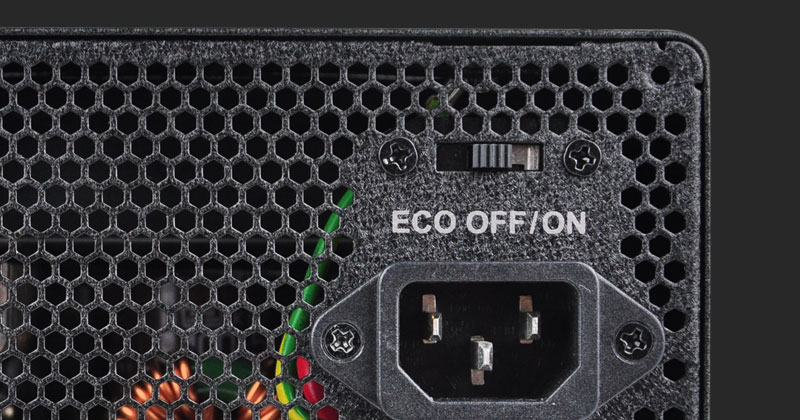

Dual Thermal Control System
The EVGA ECO Thermal Control System provides silent operation at low loads, improved efficiency and longer life span of the fan. Reduce ambient noise and energy costs for your total operation with the EVGA Thermal Control System.
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 1200 P2 provides up to 99.9A on a single rail!

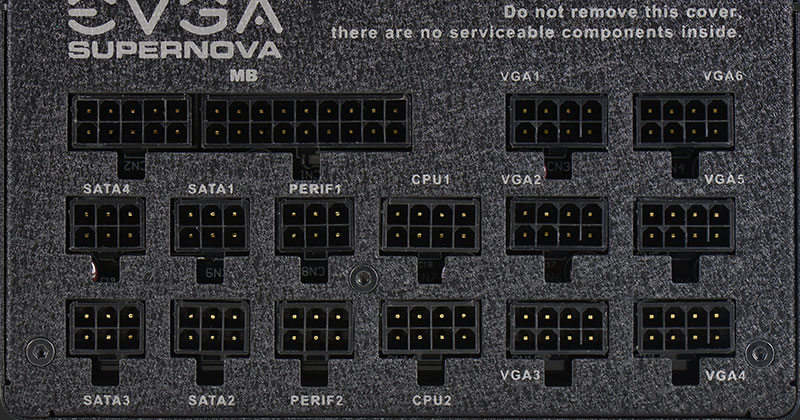

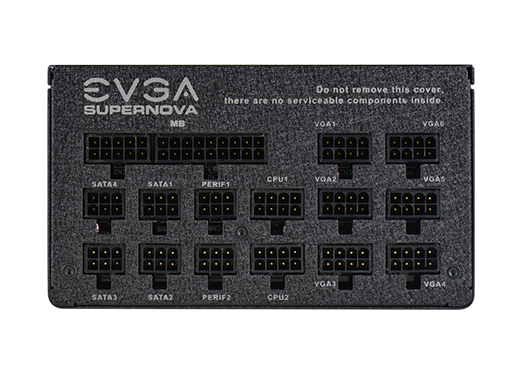

Fully Modular
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
NVIDIA SLI Certification
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1200 P2 gives you the power you need to drive these demanding systems and achieve the best overclocks.

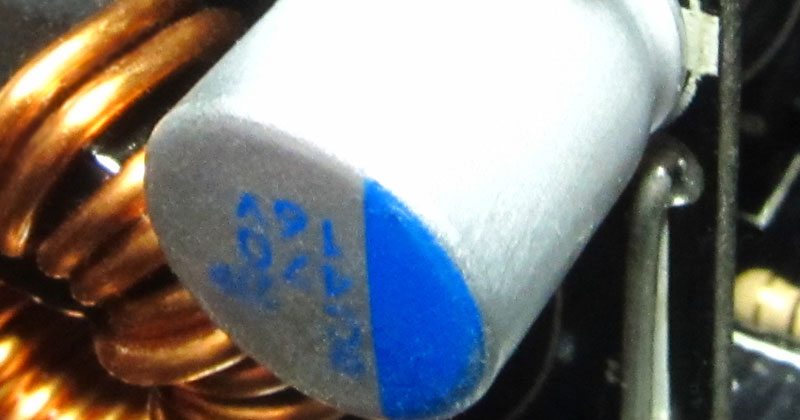

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

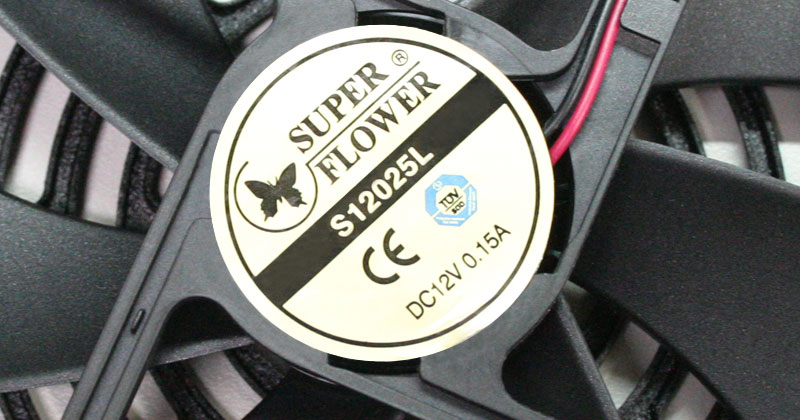

Double Ball Bearing Fan
A high-quality dual-ball bearing fan gives the SuperNOVA 1200 P2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

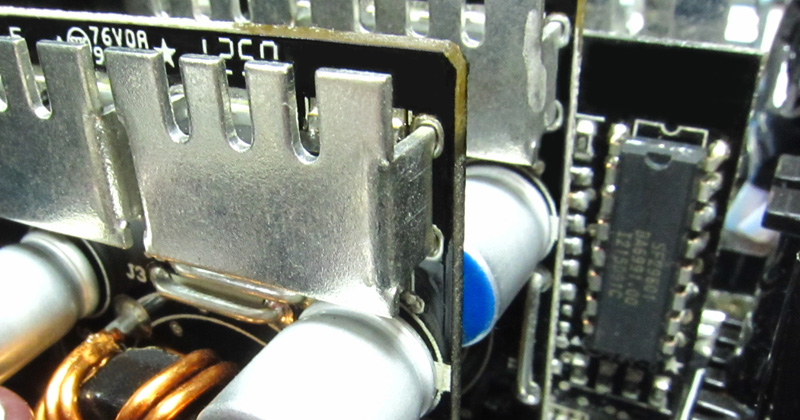

LLC Resonant Circuit Layout
Full DC to DC, LLC resonant circuit design improves efficiency.
