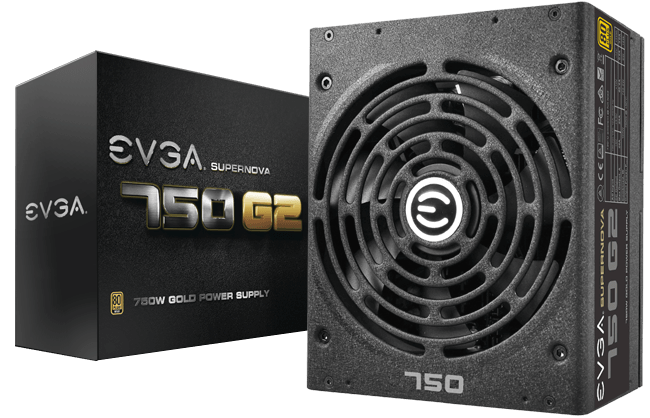

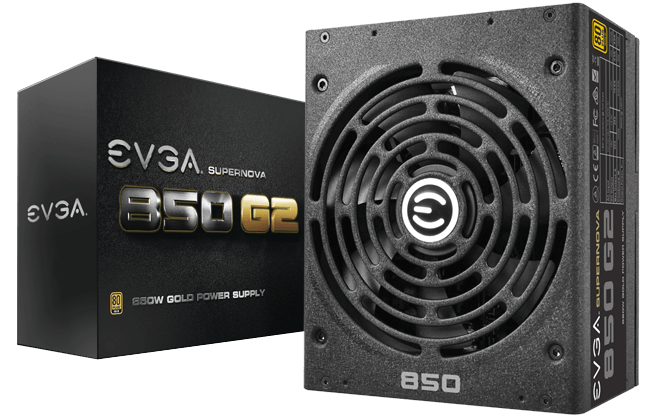

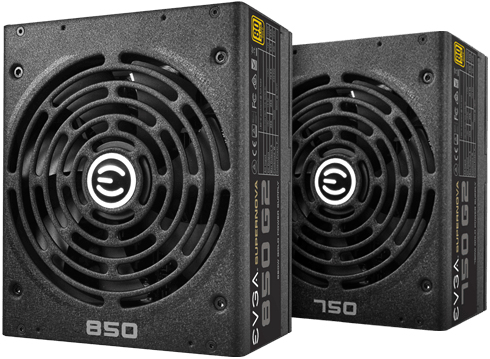

EVGA SuperNOVA 850/750 G2 Power Supplies
Next Generation in Power
Unleash the next generation in power with the EVGA SuperNOVA 850/750 G2 Power Supplies. Based on the award winning G2 series Power Supplies from EVGA, these PSU’s feature 80 PLUS Gold rated efficiency, and clean, continuous power to every component. The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. Backed by a 10 year warranty and Japanese capacitor design, the EVGA SuperNOVA 850/750 G2 is not only the right choice for your system today, it is also the best choice for your system tomorrow.
Features
- 80 PLUS Gold certified, with up to 90% efficiency under typical loads
- Superior vertical double layer main transformer increases power output
- ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45C)
- Highest quality Japanese Nippon Chemi-Con solid state capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Quiet and Intelligent Auto Fan for near-silent operation
- High Amperage Single-Rail Design for maximum power and efficiency
- Over Power/Under Power/Over Voltage/Short Circuit protection built in
- EVGA's unparalleled Customer Support
- An outstanding 10 Year Warranty
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)

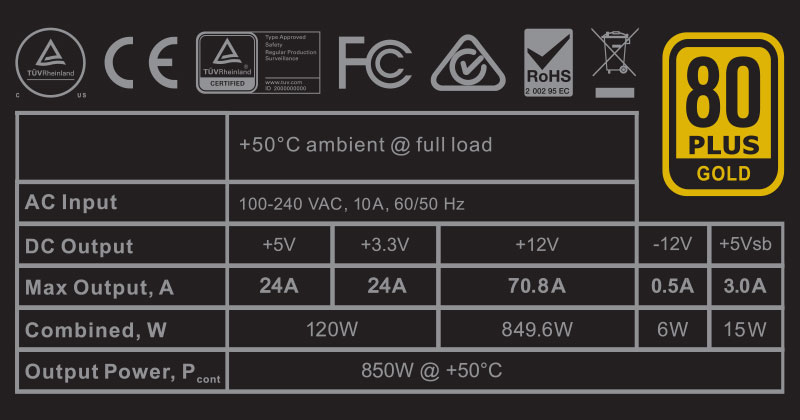

| AC Input | 100 - 240 VAC, 10A, 50 - 60 Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 24A | 24A | 70.8A | 0.5A | 3.0A |
| 849.6W | |||||
| Combined | 120W | 849.6W | 6W | 15W | |
| Output Power | 850W @ +50C | ||||
Features
- 80 PLUS Gold certified, with up to 90% efficiency under typical loads
- Superior vertical double layer main transformer increases power output
- ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45C)
- Highest quality Japanese Nippon Chemi-Con solid state capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Quiet and Intelligent Auto Fan for near-silent operation
- High Amperage Single-Rail Design for maximum power and efficiency
- Over Power/Under Power/Over Voltage/Short Circuit protection built in
- EVGA's unparalleled Customer Support
- An outstanding 10 Year Warranty
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
| AC Input | 100 - 240 VAC, 10A, 50 - 60 Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| MAX Output | 24A | 24A | 62.4A | 0.5A | 3.0A |
| 748.8W | |||||
| Combined | 120W | 748.8W | 6W | 15W | |
| Output Power | 750W @ +50C | ||||
EVGA SuperNOVA 850/750 G2 Academy
Unleash the next generation in power with the EVGA SuperNOVA 850/750 G2 Power Supplies. Based on the award winning G2 series Power Supplies from EVGA, these PSU’s feature 80 PLUS Gold rated efficiency, and clean, continuous power to every component. The new ECO Thermal Control Fan System offers fan modes to provide zero fan noise during low load operations. This provides improved efficiency for longer operation, less power consumption, reduced energy costs and minimal heat dissipation. Backed by a 10 year warranty and Japanese capacitor design, the EVGA SuperNOVA 850/750 G2 is not only the right choice for your system today, it is also the best choice for your system tomorrow.

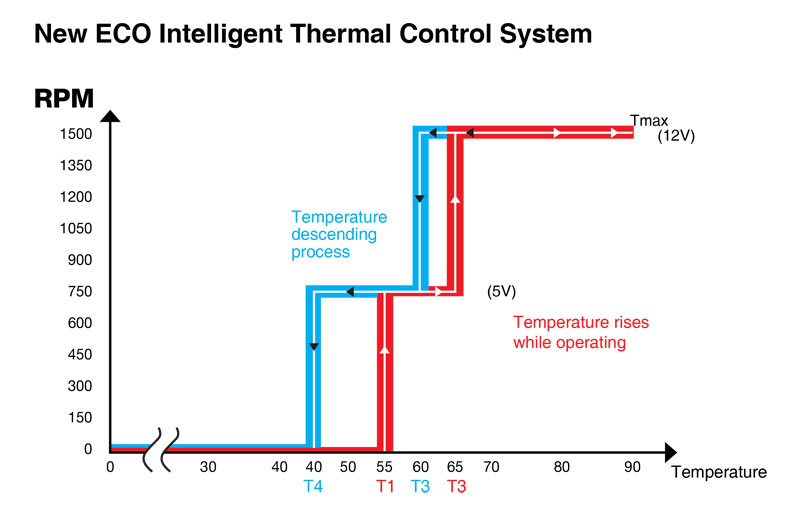

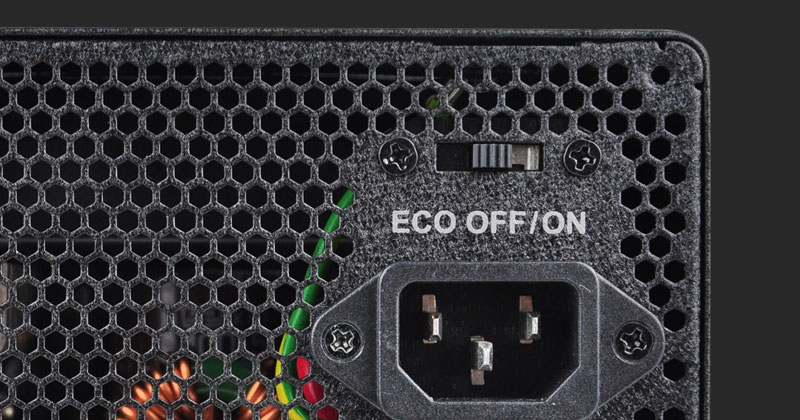

Dual Thermal Control System
The EVGA ECO Thermal Control System provides silent operation at low loads, improved efficiency and longer life span of the fan. Reduce ambient noise and energy costs for your total operation with the EVGA Thermal Control System.
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 850 G2 provides up to 70.8A on a single rail!

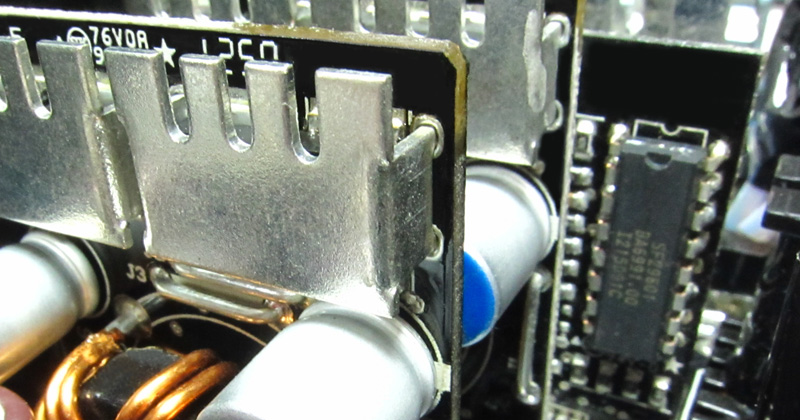

LLC Resonant Circuit Layout
Full DC to DC, LLC resonant circuit design improves efficiency.

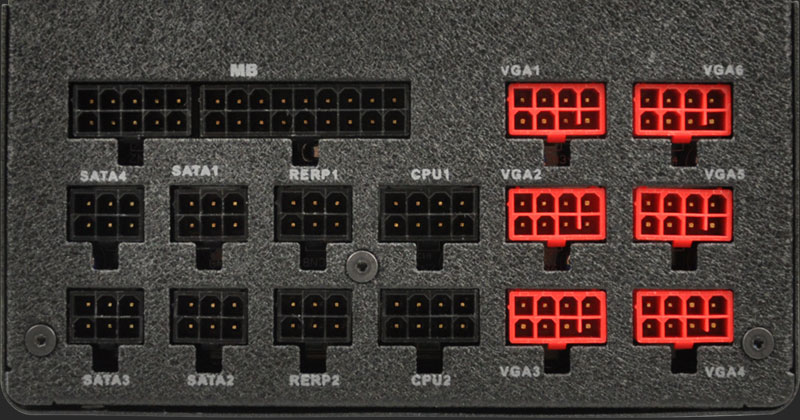

Fully Modular
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 850/750 G2 gives you the power you need to drive these demanding systems and achieve the best overclocks.

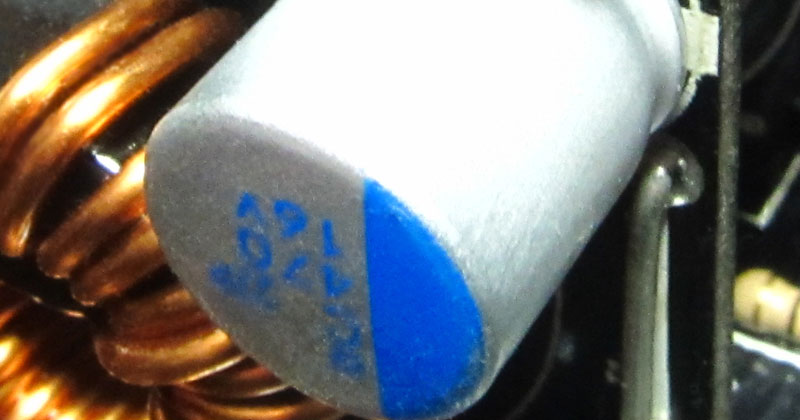

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

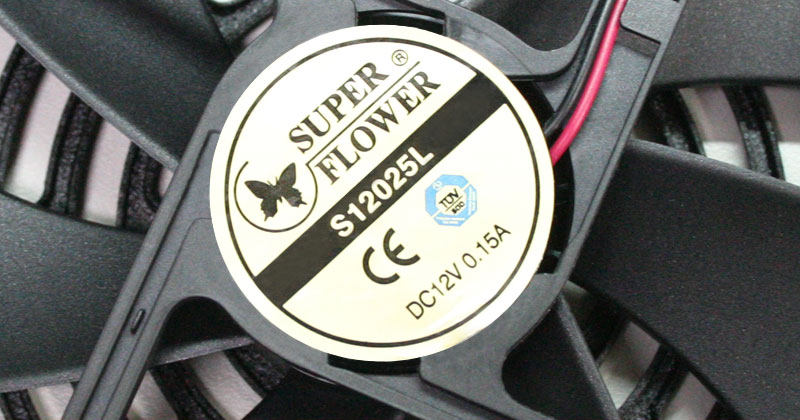

Double Ball Bearing Fan
A high-quality dual-ball bearing fan gives the SuperNOVA 850/750 G2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.
Gold Rated Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 90% efficient or higher.
