Engineered to Overclock
The ultimate GeForce GTX 780 Ti has arrived. Introducing the EVGA GeForce GTX 780 Ti Classified K|NGP|N Edition. This card is the final answer in the search for the greatest overclocking graphics card on the planet.
This card does not hold back, with up to 450W of dedicated GPU power, enhanced PLL circuitry, improved GPU power plane, 10CM fans, included backplate, preinstalled dedicated PWM baseplate, voltage regulation enhancements and more. As you can see, there is a reason why this card is named after the world’s Top Overclocker.
Extreme overclockers Vince “K|NGP|N” Lucido and Illya “TiN” Tsemenko demand the best when it comes to performance and overclocking, so they set out to co-design this product along with EVGA, and geared it for the ultimate overclocker.
“In order to break world records these days you need some serious hardware,” said Vince “K|NGP|N” Lucido. “This card was engineered to serve one purpose… be the world’s best overclocking graphics card. Expect GPU clockspeeds at over 1.85GHz with extreme cooling.”
“With the EVGA GeForce GTX 780 Ti Classified K|NGP|N Edition graphics card, we focused on the basic demands that are needed when doing extreme overclocking,” said Illya “TiN” Tsemenko. "Capable hardware design and heavy power delivery capacity is key for performance dominance and the ultimate gaming experience. So too is a unique power convertor able to provide over 450W of clean voltage for every kind of overclocking!"
Find out in a few weeks how to get this GPU through EVGA’s exclusive Build to Order program!
EVGA GeForce GTX 780 Ti Classified K|NGP|N Edition
- Coming Soon
- K|NGP|N Overclocking Guide
- World Record Performance
- 3DMark Firestrike Single Card World Record - Screenshot - Score Link

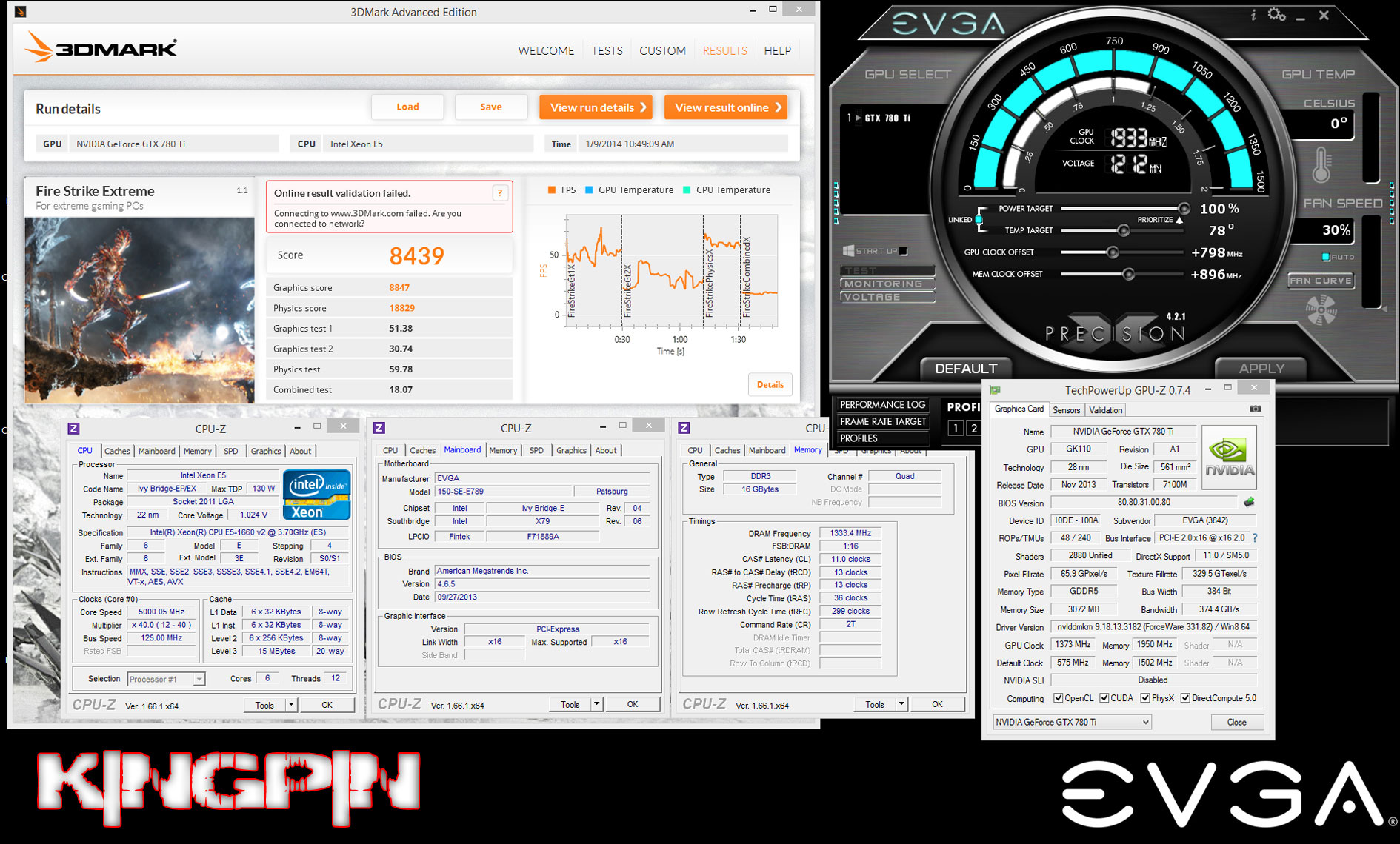

- 3DMark Firestrike Extreme Single Card World Record - Screenshot - Score Link
Specs
Core
- CUDA Cores: 2880
- Base Clock: 1072 MHz
- Boost Clock: 1137 MHz
- Bus: PCIe 3.0
- 2-way, 3-way, 4-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 7000 MHz
- Memory Speed: 0.28 ns
- Memory Bandwidth: 336 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- NVIDIA 3D Vision Ready
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 11.2 API (feature level 11_0) with Direct Compute 5.0 support
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.4 Support
- OpenCL Support
- NVIDIA SHIELD Ready
- NVIDIA G-Sync Ready
EVGA GeForce GTX 780 Ti Classified K|NGP|N Edition Academy
The ultimate GeForce GTX 780 Ti has arrived. Introducing the EVGA GeForce GTX 780 Ti Classified K|NGP|N Edition. This card is the final answer in the search for the greatest overclocking graphics card on the planet.
This card does not hold back, with up to 450W of dedicated GPU power, enhanced PLL circuitry, improved GPU power plane, 10CM fans, included backplate, preinstalled dedicated PWM baseplate, voltage regulation enhancements and more. As you can see, there is a reason why this card is named after the world’s Top Overclocker.
Extreme overclockers Vince “K|NGP|N” Lucido and Illya “TiN” Tsemenko demand the best when it comes to performance and overclocking, so they set out to co-design this product along with EVGA, and geared it for the ultimate overclocker.

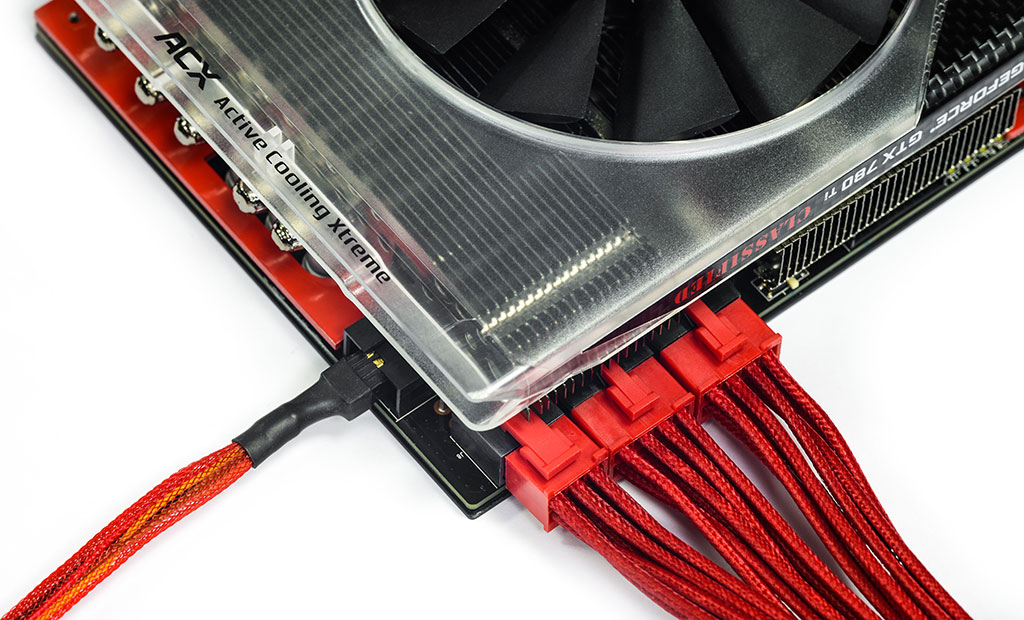

Up to 450W of Dedicated GPU Power
Dual 8pin + 6pin power inputs provides up to 450W of clean power.

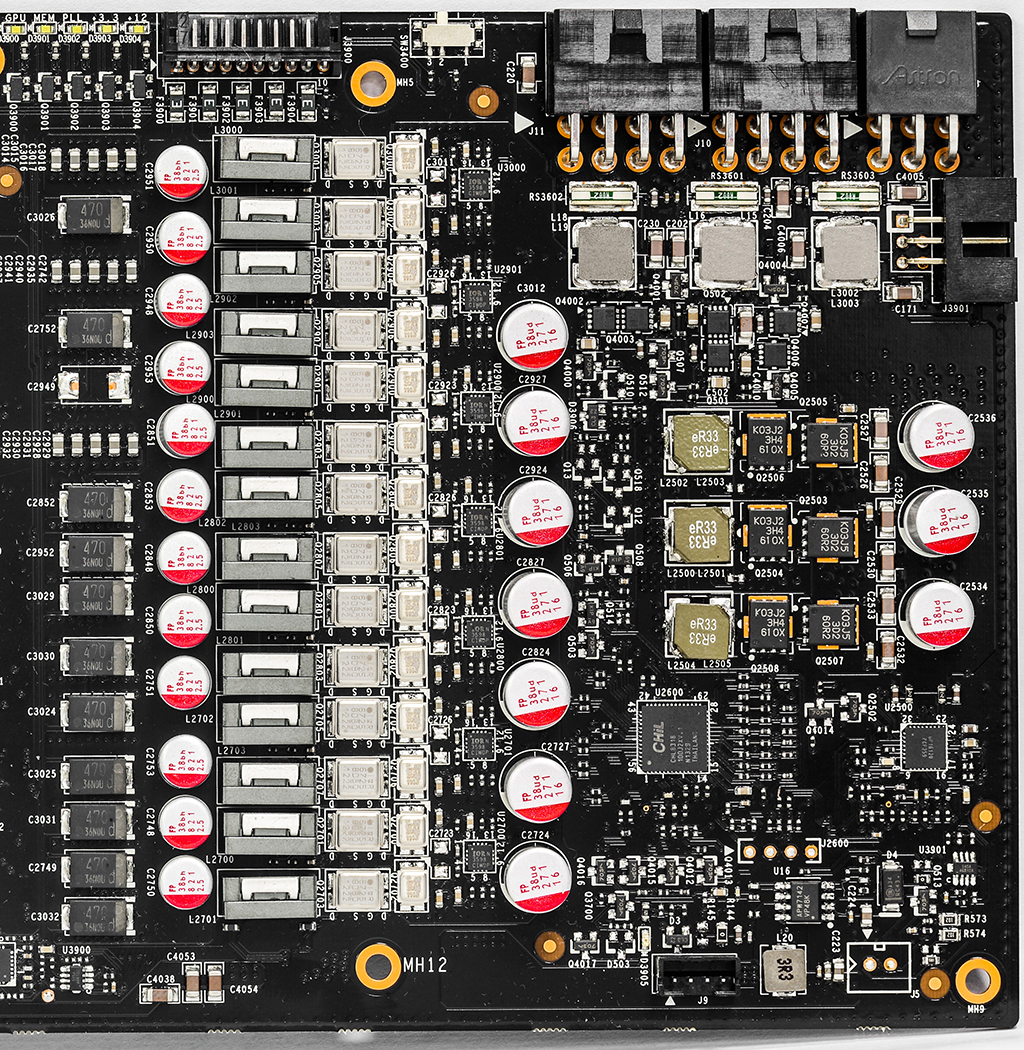

14+3 Phase Power Design
14 dedicated power phases for the GPU, and an additional 3 power phases for the memory.
EVGA ACX Cooling with 10CM Fans
K|NGP|N inspired cooling design featuring dual 10CM fans.

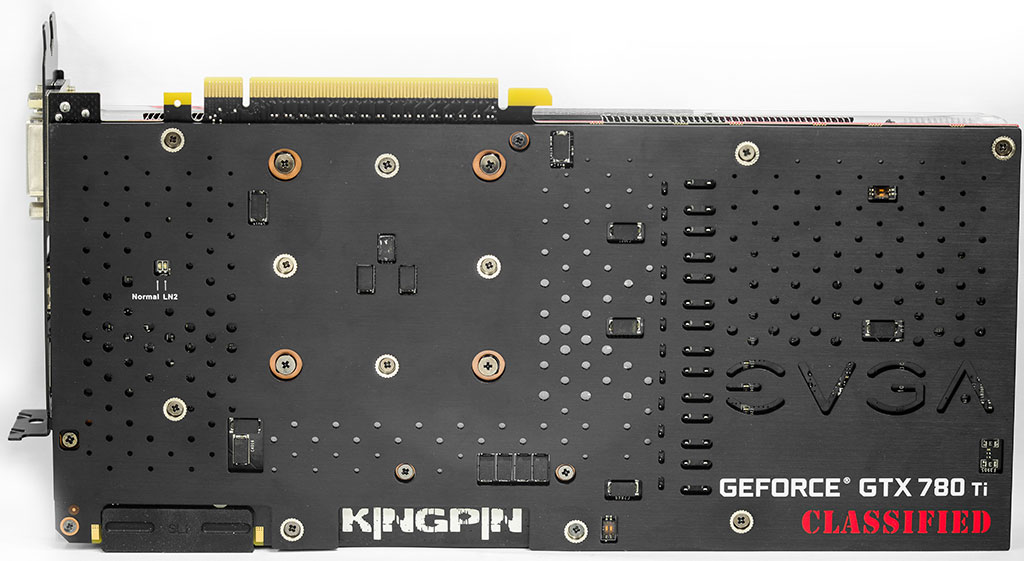

Bundled Backplate
Custom EVGA backplate included.
Separate PWM Baseplate
When going with extreme cooling on the GPU, it is still optimal to cool the PWMs. This separate baseplate allows you to keep the critical power section cool.

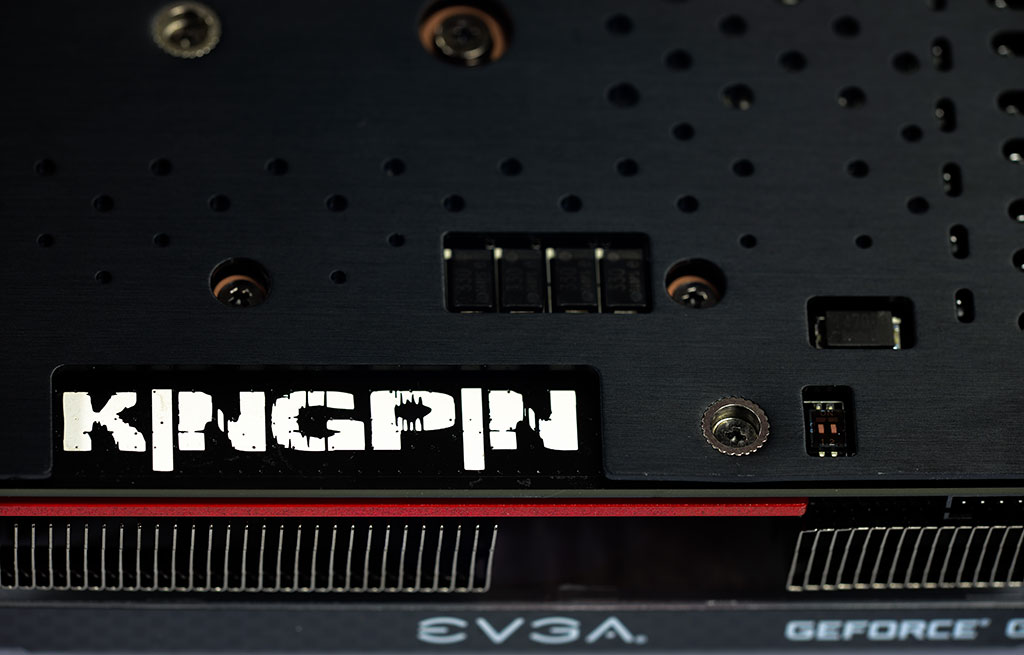

Enhanced PLL Circuitry
Optimized for extreme cooling.

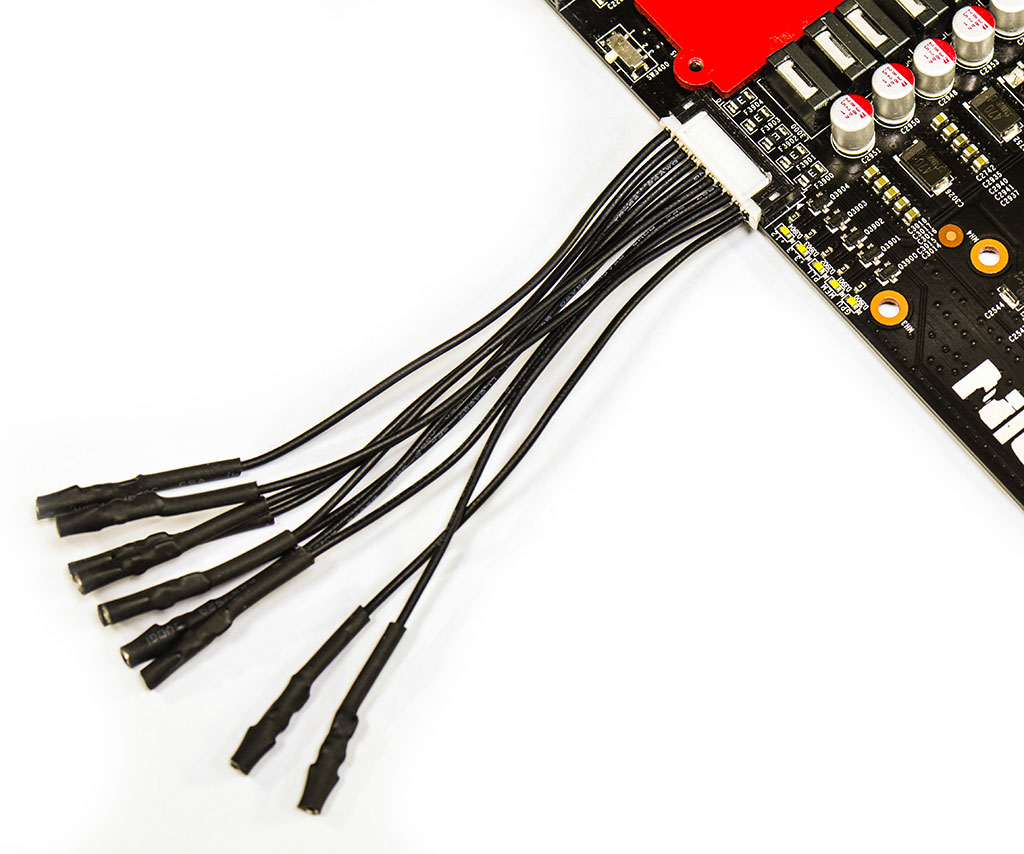

Probelt with Bundled DMM Adapter and Status LEDs
Easy and precise monitoring of voltage health using external DMM. Onboard voltage status LED’s provide realtime voltage status for every critical rail.
Pitch Black High Flow I/O Bracket
Improved airflow with great aesthetics.

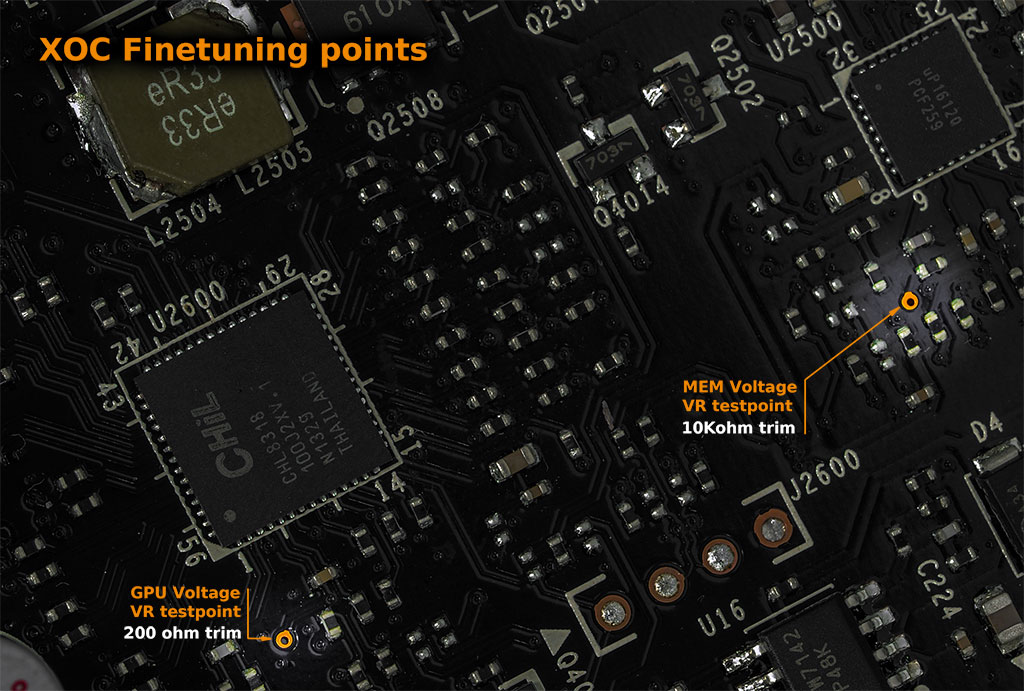

XOC Voltage Modification Points
Allows for extreme voltage tuning.
EVGA GeForce GTX 780 Ti Software
The EVGA award winning software has been further improved in the latest versions. EVGA Precision X 4 brings a major revamp to the software with a new GUI, new voltage controls, pixel clock control and much more. Check out what all the buzz is about by downloading the latest software from EVGA... for FREE! EVGA also has made available a special K|NGP|N Precision Skin, download it here http://www.evga.com/precision/#Skins

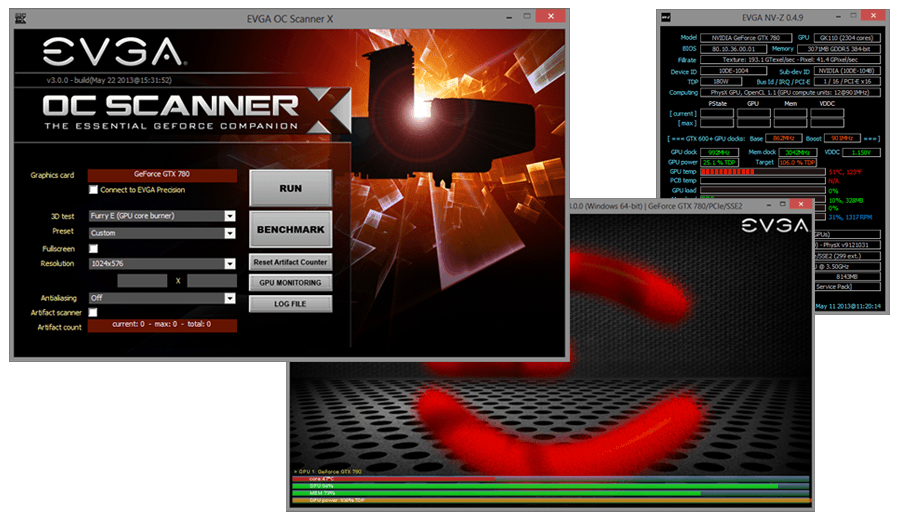

EVGA OC Scanner X is a free stress test utility, allowing you to test various aspects of your card. This application even has a built in artifact detector that will notify you if any faults are found!
EVGA Precision X – Redesigned to harness the power of GPU Boost 2.0, EVGA Precision X sets another baseline for what overclocking software should be. Learn more and download it below!
Key Features
- GPU and Memory Frequency/Clock Offset
- Temperature Target Control
- Pixel Clock Overclocking
- Robust monitoring allowing ingame, system tray and/or Logitech LCD monitoring
- In game screenshot hotkey, supports BMP, PNG and JPG formats
EVGA OC Scanner X – Featuring a brand new look and layout, this popular application has been updated to show all of the GeForce GTX 780 Ti vitals. Learn more and download it here.
Key Features
- Built-in stress tester to find and report artifacts
- Benchmark function to quickly test your performance
- CPU Burn In Module
- Built-in log functionality
