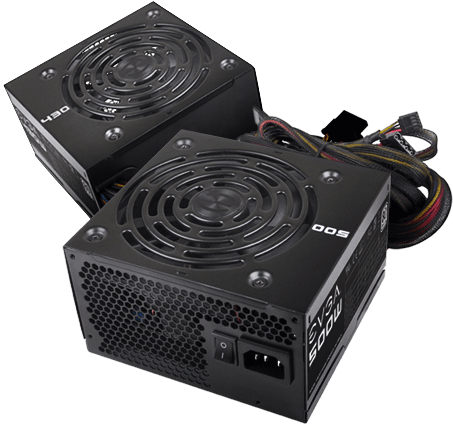

Unbeatable Value
When building on a budget, the EVGA 500W/430W is a great choice at a super low cost. Supporting up to 40A on a single +12V rail, these PSUs provide more options without having to reduce your component requirements. Save space with the compact design, well-placed power switch and fully sleeved cables. These units offer the connections and protections needed for basic system builds. With a standard 3 year warranty and ultra quiet fan design, these will be a great asset for your next build on a budget.
Features
- Exceptional 3 year warranty and unparalleled EVGA customer support
- 80 PLUS certified, with up to 80% efficiency under typical loads
- High Amperage Single-Rail design for maximum power and efficiency
- Quiet and Intelligent Auto Fan for near-silent operation
- Heavy-duty Power Protections provide peace of mind during operation
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)

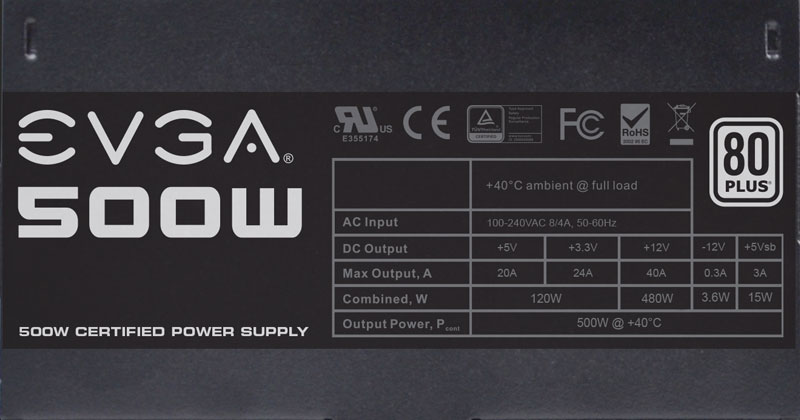

| AC Input | 100-240 VAC | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 24A | 40A | 0.3A | 3A |
| Combined | 120W | 480W | 3.6W | 15W | |
| Output Power | 500W @ +40°C | ||||
Features
- Exceptional 3 year warranty and unparalleled EVGA customer support
- 80 PLUS certified, with up to 80% efficiency under typical loads
- High Amperage Single-Rail design for maximum power and efficiency
- Quiet and Intelligent Auto Fan for near-silent operation
- Heavy-duty Power Protections provide peace of mind during operation
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OCP (Over Current Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OTP (Over Temperature Protection)
| AC Input | 100-240 VAC | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 15A | 24A | 34A | 0.3A | 3A |
| Combined | 120W | 408W | 3.6W | 15W | |
| Output Power | 430W @ +40°C | ||||
EVGA 500W/430W Academy
When building on a budget, the EVGA 500W/430W is a great choice at a super low cost. Supporting up to 40A on a single +12V rail, these PSUs provide more options without having to reduce your component requirements. Save space with the compact design, well-placed power switch and fully sleeved cables. These units offer the connections and protections needed for basic system builds. With a standard 3 year warranty and ultra quiet fan design, these will be a great asset for your next build on a budget.
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
80 Plus Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 80% efficient or higher.
Continuous Power
The EVGA 500W and 430W PSU’s are rated in continuous power, rather than peak. This ensures the longevity and stability at the officially rated wattage, rather than rating off of an unsustainable peak wattage.
