(Motherboard and graphics card are not included)
Case
Built for the Enthusiast
Now you are able to build a mini ITX system with enthusiast performance! The EVGA Hadron mini ITX case was designed to not make any compromises. At a mere 305mm height and 169mm width, the EVGA Hadron case is extremely small, but capable of holding today’s latest hardware.
With an included 500W Gold rated power supply, support for a full sized graphics card, sleek looks and enthusiast features, the EVGA Hadron mini ITX case packs a serious punch.
Features
- Integrated 500W Gold Rated Power Supply w/ 40A on +12V Rail
- Supports most full size enthusiast graphics cards! (Up to 267mm, double slot)
- 2 x USB 3.0 Ports
- Supports all mini ITX form factor motherboards
- 12in/305mm height and 6.6in/169mm width - One of the smallest cases available for the enthusiast!
- 2 x 2.5/3.5in Drive Bays supports two hard drives
- Click here to learn about CPU cooler compatibility
- Dimensions
- Width: 6.6in – 169mm
- Height: 12in – 305mm
- Depth: 12.1in – 308mm
Power Supply Specs
| AC Input | 100-240 VAC~, 8-4A, 60-50 Hz | ||||
| Rail | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 20A | 40A | 0.5A | 3.5A |
| 130W | 480W | 6W | 17.5W | ||
| Total | 500W @ +50°C | ||||
Features
- Integrated 500W Gold Rated Power Supply w/ 40A on +12V Rail
- Supports most full size enthusiast graphics cards! (Up to 267mm, double slot)
- 2 x USB 3.0 Ports
- Supports all mini ITX form factor motherboards
- 13.8in/350mm height and 6.6in/169mm width - One of the smallest cases available for the enthusiast!
- 2 x 2.5/3.5in Drive Bays supports two hard drives
- Supports slim slot load optical drive (not included)
- Accommodates various types of watercooling
- Click here to learn about CPU cooler compatibility
- Dimensions
- Width: 6.6in – 169mm
- Height: 13.8in – 350mm
- Depth: 12.1in – 308mm
Power Supply Specs
| AC Input | 100-240 VAC~, 8-4A, 60-50 Hz | ||||
| Rail | +5V | +3.3V | +12V | -12V | +5Vsb |
| MAX Output | 20A | 20A | 40A | 0.5A | 3.5A |
| 130W | 480W | 6W | 17.5W | ||
| Total | 500W @ +50°C | ||||
EVGA Hadron Optional Accessories
Why sacrifice appearance and size when choosing a performance rig? The EVGA Hadron mini ITX case was designed to not make any compromises. At a mere 169mm width and 305mm height, the EVGA Hadron case is extremely small, but capable of holding today’s latest hardware.
The EVGA Hadron Case includes an EVGA 500W PSU, but for those looking for some more accessories to kit out your new Hadron rig, this is the place!

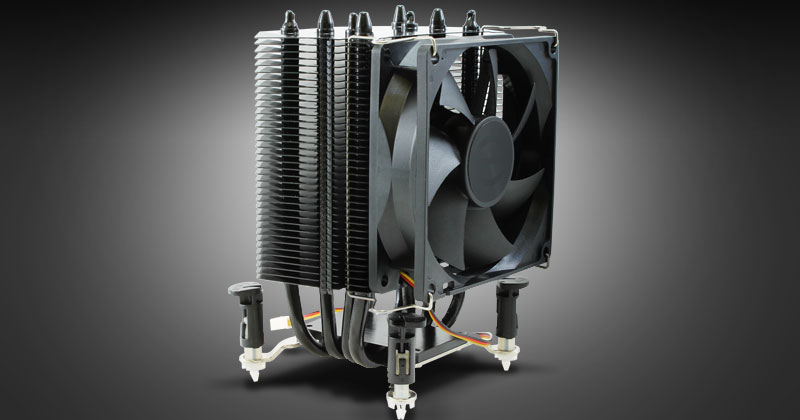

Coming Soon EVGA mini ITX ACX CPU Cooler
The EVGA Hadron Case can fit most cooling fans for the CPU, but the EVGA mini ITX ACX CPU Cooler is specifically designed to meet the size requirements of the case, and adequately cool the CPU!

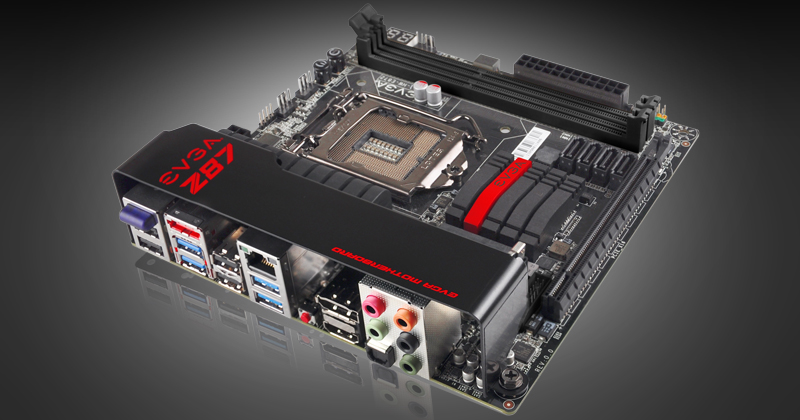

Auto-Notify A Perfect FIT for the EVGA Hadron Case – The EVGA Z87 Stinger Motherboard
This platform offers a return to greatness with a completely redesigned GUI BIOS interface, reimagined power VRM that focuses on efficiency, and loaded with features like Creative Sound Core3D quad-core audio processor, Intel Gigabit LAN, native SATA 6G/USB 3.0 and more. Did we also mention that this motherboard is designed for the overclocker?

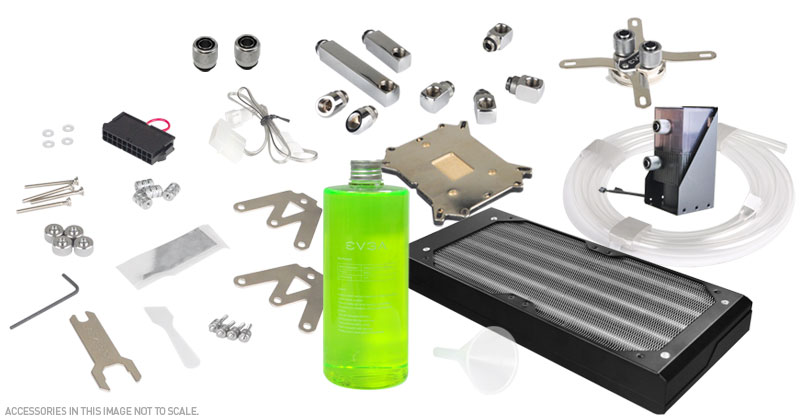

Auto-Notify EVGA Watercooling Kit for Hadron Hydro
Includes all the necessary components to setup a water loop in your Hadron Hydro Case! Includes Radiator, Pump, CPU Waterblock, Fittings, Tubing and Coolant!
EVGA Hadron Academy
Why sacrifice appearance and size when choosing a performance rig? The EVGA Hadron mini ITX case was designed to not make any compromises. At a mere 169mm width and 305mm height, the EVGA Hadron case is extremely small, but capable of holding today’s latest hardware.
With an included 500W Gold rated power supply, support for a full sized graphics card, sleek looks and enthusiast features, the EVGA Hadron mini ITX case packs a serious punch.

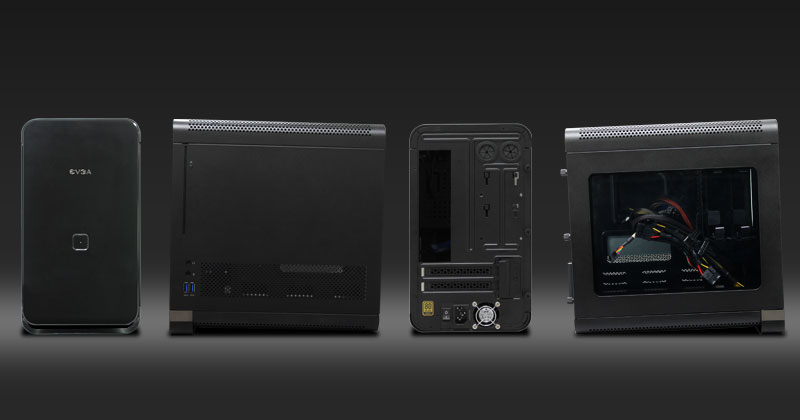

Sleek look, extremely compact size!
At only 12in/305mm height, and 6.6in/169mm width, the EVGA Hadron is one of the smallest cases available for the enthusiast!
mini ITX Form Factor
Supports all mini ITX form factor motherboards.

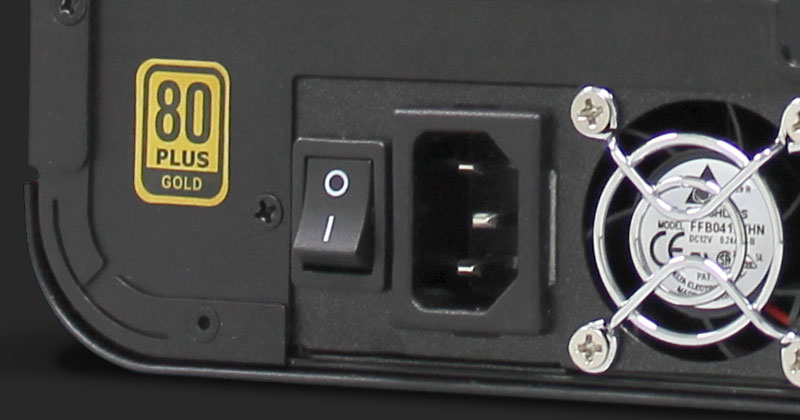

Integrated 500W Gold Rated Power Supply w/ 40A on +12V Rail
Enthusiast power supply capable of powering today’s fastest graphics cards.

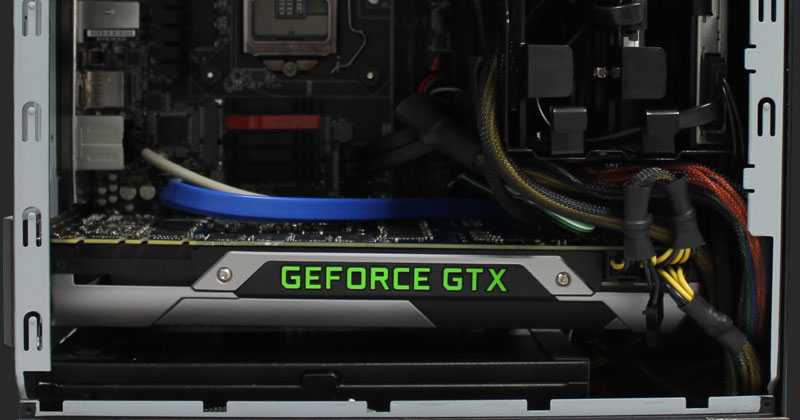

Supports most full size enthusiast graphics cards! (Up to 267mm, double slot)
Top to bottom support for today’s latest graphics cards.

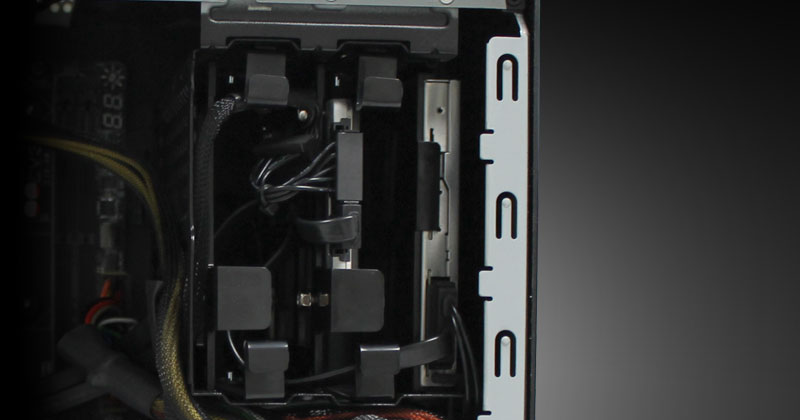

2 x 2.5/3.5in Drive Bays
Supports up to two hard drives. Whether you use them for a RAID 0, or storage, the choice is yours! Can support either full size 3.5in drives or smaller 2.5in.

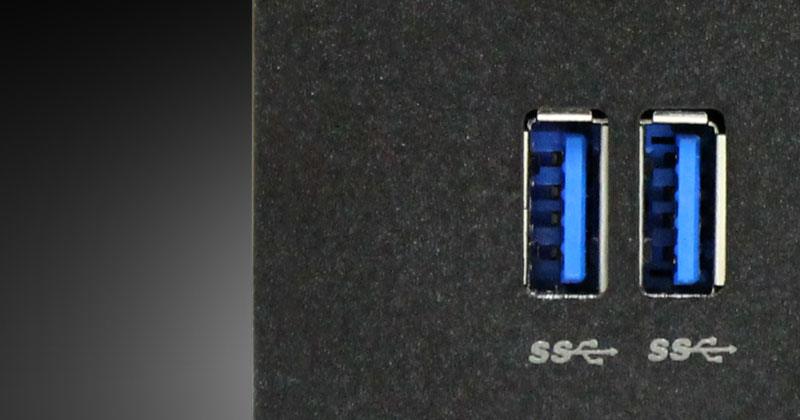

2 x USB 3.0 Ports
Supporting up to 2 devices of the latest USB 3.0 Superspeed protocol.

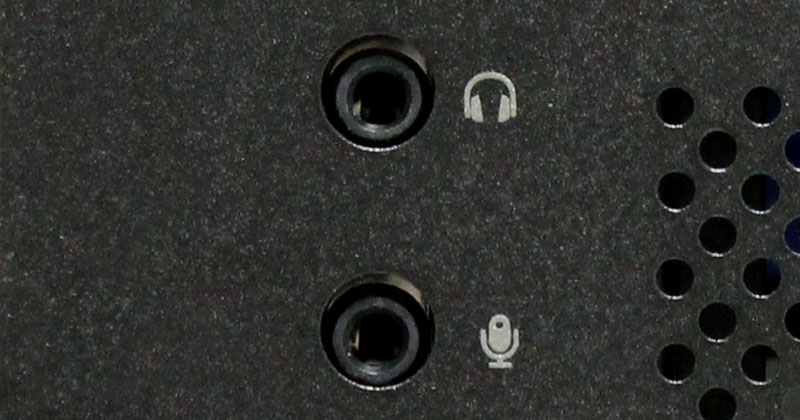

HD Audio In/Out
Integrated HD Audio out/headphone and Audio In/mic.

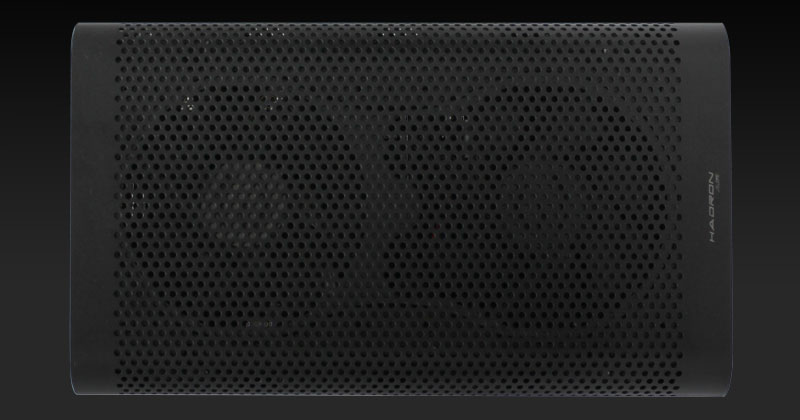

2 x 120mm Exhaust Fans
Included large fans have the capability to move air, and operate silently!
3 Year Warranty
Award winning EVGA Support backed by a full 3 Year Warranty!
