EVGA - Articles - EVGA 500W Bronze Power Supply

Best Value

With price and performance in mind, the EVGA 500B is the best value power supply for your next build on a budget. With 80 Plus Bronze standard, over 80% efficiency under typical loads, the EVGA 500B is a great choice. Combining 500W of continuous power and Single +12V High AMP rail design, gain maximum power and efficiency while staying protected with a series of over volt/over current protections all bundled into one!

500W Bronze

100-B1-0500-KR

Academy

Features

Exceptional 3 year warranty and unparalleled EVGA customer support
80 PLUS Bronze certified, with up to 85% efficiency ender typical loads

High Amperage Single-Rail design for maximum power and efficiency
Quiet and Intelligent Auto Fan for near-silent operation

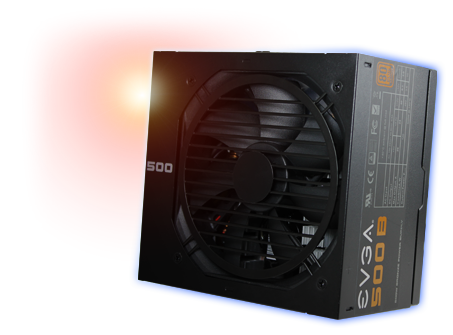

EVGA 500W Bronze Power Supply

360°

Specs

Heavy-duty protections, including:

OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
OCP (Over Current Protection)
OPP (Over Power Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)

AC Input	100-240 VAC~, 15A, 50-60 Hz
DC Output	+5V	+3.3V	+12V	-12V	+5Vsb
MAX Output	20A	24A	40A	0.3A	3A
Combined	120W		480W	3.6W	15W
Output Power	500W @ +50°C

EVGA 500W Bronze Academy

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA 500B provides up to 40A on a single rail!

Bronze Rated Efficiency

80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 80% efficient or higher.

Continuous Power

The EVGA 500B supports continuous power, the steady power a PSU can output continuously, rather than the amount delivered as its short-lived peak.
