EVGA Z87 Motherboards – Exceed the Best

Welcome to a new class of high performance motherboards that boast 4th Generation Intel® Core™ Processor compatibility. These platforms offer a return to greatness with a completely redesigned GUI BIOS interface, reimagined power VRM that focuses on efficiency, and loaded with features like up to 4-Way SLI, Creative Sound Core3D quad-core audio processor, Intel Gigabit LAN, native SATA 6G/USB 3.0 and more.

Did we also mention that this motherboard is designed for the overclocker? Built from the ground up to give you all the essentials you need for overclocking, with a GUI BIOS that is focused on functionality, brand new software interface for overclocking in the O.S., ultra high quality components, and robust PCI-E 3.0 and memory trace layout.

With these features and more, it is clear that the EVGA Z87 motherboards are not engineered to just be the best, they are engineered to exceed the best.

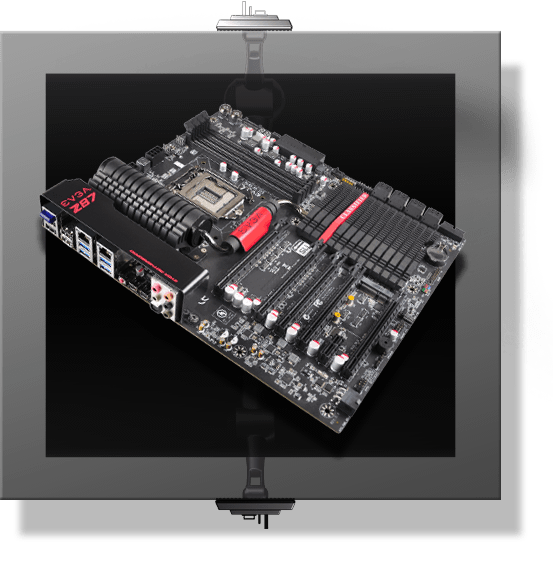

EVGA Z87 Classified Motherboard 152-HW-E878-KR

Chipset – Intel Z87
SLI – 4-Way
SATA – 8 SATA 6G
USB – 6 USB 3.0 / 6 USB 2.0
Memory Support – 4 DIMM Dual-Channel DDR3 2666MHz+ (up to 32GB)
Capacitors – POSCAP/Solid State
Form Factor – EATX
Ethernet – 2x Intel Gigabit NIC
Audio - Creative Sound Core3D Quad-Core Audio Processor
PCB - 8 Layers

Features

8 Phase PWM
Onboard Power, Reset and Clear CMOS
PCI-E Disable Switches
E-LEET X Tuning Utility
Triple BIOS Support
Onboard CPU Temp Monitor
300% More Gold Content
POSCAP Capacitors
EZ Voltage Read Points
8+8 PIN CPU Power
Onboard Bluetooth
LucidLogix Virtu MVP 2.0 Support
mSATA/mPCI-e Slot

External I/O

4x Rear Panel USB 3.0 Ports
4x Rear Panel USB 2.0 Ports
Creative Sound Core3D Quad-Core Audio Processor
2x Mini-DisplayPort
2x Intel Gigabit Ethernet
1x Bluetooth 2.1

Internal I/O

2x USB 3.0 Headers
2x USB 2.0 Headers
8x SATA 6G Ports

EVGA Z87 FTW Motherboard 141-HW-E877-KR

Chipset – Intel Z87
SLI – 2-Way + PhysX
SATA – 8 SATA 6G
USB – 6 USB 3.0 / 6 USB 2.0
Memory Support – 4 DIMM Dual-Channel DDR3 2666MHz+ (up to 32GB)
Capacitors – POSCAP/Solid State
Form Factor – ATX
Ethernet – Intel Gigabit NIC
Audio - 8 Channel High Definition Audio
PCB - 6 Layers

Features

6 Phase PWM
Onboard Power, Reset and Clear CMOS
PCI-E Disable Switches
E-LEET X Tuning Utility
Dual BIOS Support
Onboard CPU Temp Monitor
300% More Gold Content
POSCAP Capacitors
EZ Voltage Read Points
PCI-E Disable Jumpers
Onboard Bluetooth
LucidLogix Virtu MVP 2.0 Support

External I/O

4x Rear Panel USB 3.0 Ports
4x Rear Panel USB 2.0 Ports
8x Channel Audio + Optical
Intel Gigabit Ethernet
2x E-SATA Ports
1x Bluetooth 2.1
1x DisplayPort
1x HDMI

Internal I/O

2x USB 3.0 Headers
2x USB 2.0 Headers
8x SATA 6G Ports

EVGA Z87 Stinger Motherboard 111-HW-E872-KR

Chipset – Intel Z87
SATA – 4 SATA 6G
USB – 6 USB 3.0 / 4 USB 2.0
Memory Support – 2 DIMM Dual-Channel DDR3 2666MHz+ (up to 16GB)
Capacitors – POSCAP/Solid State
Form Factor – mITX
Ethernet – 1x Intel Gigabit NIC
Audio - Creative Sound Core3D Quad-Core Audio Processor
PCB - 10 Layers

Features

6 Phase PWM
Onboard Power, Reset and Clear CMOS
E-LEET X Tuning Utility
Onboard CPU Temp Monitor
300% More Gold Content
POSCAP Capacitors
Onboard Bluetooth
LucidLogix Virtu MVP 2.0 Support
mSATA/mPCI-e Slot

External I/O

4x Rear Panel USB 3.0 Ports
4x Rear Panel USB 2.0 Ports
Creative Sound Core3D Quad-Core Audio Processor
1x HDMI
1x Intel Gigabit Ethernet
1x E-SATA Ports
1x Bluetooth 2.1
1x DisplayPort
1x HDMI

Internal I/O

2x USB 3.0 Headers
4x SATA 6G Ports

EVGA Z87 New GUI BIOS

Nobody understands the enthusiast more than EVGA. The brand new GUI BIOS from EVGA is focused on functionality so you can get in, and get out. No splash screens to click through, no enormous menus to scroll through, no steep learning curve. The way a modern BIOS should be. Learn more about the new EVGA GUI BIOS here.

Familiar
A modern BIOS should use a mouse as a complement, not a requirement. The new EVGA GUI BIOS can be navigated with a mouse, or keyboard.
Useful HUD
All important information is right at the top of the BIOS, and able to be viewed at all times. Vital temperatures, CPU frequency, memory information and more.
BIOS Screen Capture
Makes it easy to share BIOS images, or take a screenshot and save it for later reference!
Proper Widescreen Aspect
Widescreens monitors have been a standard for years, why not your BIOS? The EVGA GUI BIOS is set to the proper aspect ratio for your Widescreen monitor. No more stretched out images.
Designed for the Enthusiast
Most importantly, it has all the important options that enthusiasts and overclockers crave.

EVGA Z87 Academy

Exceptional Layout (Z87 Classified)
A right angled 24pin power connector, right angled fan headers and a right angled USB 3.0 header give you improved airflow, and optimized cable management. Optimal PCI-E layout gives you perfect airflow no matter what graphics configuration you are running, and an angled 6pin aux PCI-E power connector keeps the motherboard clear of any cables that may block airflow. Also looks awesome!
10 Layer PCB (Z87 Stinger)
More PCB layers dramatically improve overclocking, and cooling across the PCB. Absolutely no compromises were made here.
Onboard Features
Onboard power, reset, clear CMOS and Debug LED that shows CPU temperature and diagnostics! Also PCI-E disable jumpers make troubleshooting a breeze.
Up to 4-Way SLI Support (Z87 Classified)
Full support for the ultimate graphics card configuration. All while done in EATX form factor.
Lucid Virtu MVP 2.0 Support
Lucid Virtu MVP support allows GPU Virtualization to utilize both integrated GPU and discreet.
Native USB 3.0/SATA 6G Support
Native on select USB 3.0 and SATA 6G ports, no 3rd party controller required. Improved performance, compatibility, reliability and more!
mSATA/mPCI-E Slot (Z87 Classified, Z87 Stinger)
This slot can support either a mSATA device for additional storage, or an mPCI-E slot for any device such as onboard Wi-Fi!
Reimagined VRM
Best industry available integrated power stages support much faster regulation.
Reengineered for Overclocking
EVGA and Overclocking go hand in hand. This board was built from the ground up to support overclocking. Absolutely no compromises were made here.
Creative Sound Core 3D Audio
Next generation quad core Sound and Voice processor for accelerating advanced audio and voice processing technologies.
Intel Gigabit LAN
Intel network controllers are well known for reliability, stability and performance. That is why we only use Intel Network controllers on the EVGA Z87 lineup.

EVGA Z87 Software

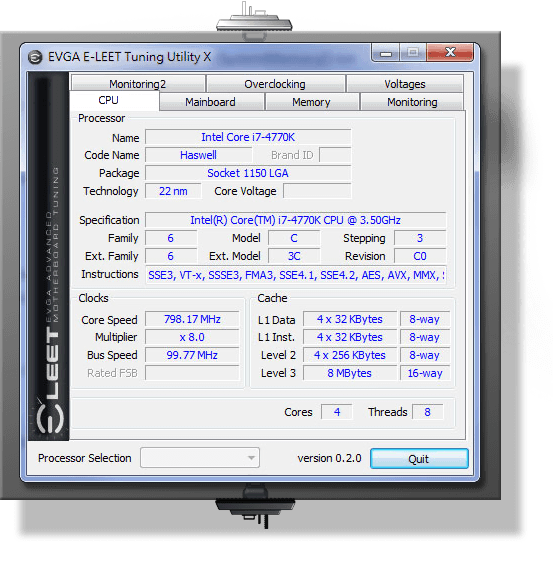

EVGA E-LEET Tuning Utility
EVGA’s popular tuning utility has been completely rewritten for the next generation of EVGA platforms. This utility allows you to easily set your motherboard BClock, system voltages, memory timings and CPU multiplier from within the Windows operating system.
