Pure Performance
The EVGA GeForce GTX 780 marks an evolution in gaming performance – an insanely fast, smooth, and whisper-quiet experience, every time.
EVGA is also introducing a brand new cooling design; the redefining EVGA ACX Cooler. With a 40% increase in heatsink volume, the EVGA ACX is more efficient at dissipating heat, allowing for 15% lower GPU temperatures. A reinforcement baseplate maintains a straight PCB, and helps lower mosfet temperatures by 7% and memory by 15%.
Even the fan blades are of the highest quality; with a 700% increase in strength, and 25% lower weight when compared to competitors. This makes the fans 20% more efficient by requiring lower power levels. EVGA is also using double ball bearing fans which offer a 12 year lifespan, 4X longer when compared to competitors!
Learning Center
Products featuring ACX Cooling
Products featuring Blower Cooling
Specs
Core
- CUDA Cores: 2304
- Base Clock: 863 MHz
- Boost Clock: 902 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- EVGA ACX Cooler
- 6+2 Power Phases
EVGA GeForce GTX 780 Superclocked w/ EVGA ACX Cooler
- Coming Soon
- View Spec Sheet[GPU]
- View Video
Specs
Core
- CUDA Cores: 2304
- Base Clock: 967 MHz
- Boost Clock: 1020 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- EVGA ACX Cooler
- 6+2 Power Phases
Specs
Core
- CUDA Cores: 2304
- Base Clock: 980 MHz
- Boost Clock: 1033 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- EVGA ACX Cooler
- 8+2 Power Phases
- Dual BIOS
- + Power Target
Specs
Core
- CUDA Cores: 2304
- Base Clock: 993 MHz
- Boost Clock: 1046 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- EVGA ACX Cooler
- 14+3 Power Phases
- ++ Power Target
- Dual BIOS
- Dual 8pin Power Input
Specs
Core
- CUDA Cores: 2304
- Base Clock: 863 MHz
- Boost Clock: 902 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- 6+2 Power Phases
Specs
Core
- CUDA Cores: 2304
- Base Clock: 941 MHz
- Boost Clock: 993 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- 6+2 Power Phases
Specs
Core
- CUDA Cores: 2304
- Base Clock: 863 MHz
- Boost Clock: 902 MHz
- Bus: PCIe 3.0
- 2-way, 3-way SLI Ready
Memory
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 384 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 288.38 GB/s
Key Features
- NVIDIA TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 12 API (feature level 11_0)
- NVIDIA 3D Vision Ready
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.3 Support
- OpenCL Support
- 6+2 Power Phases

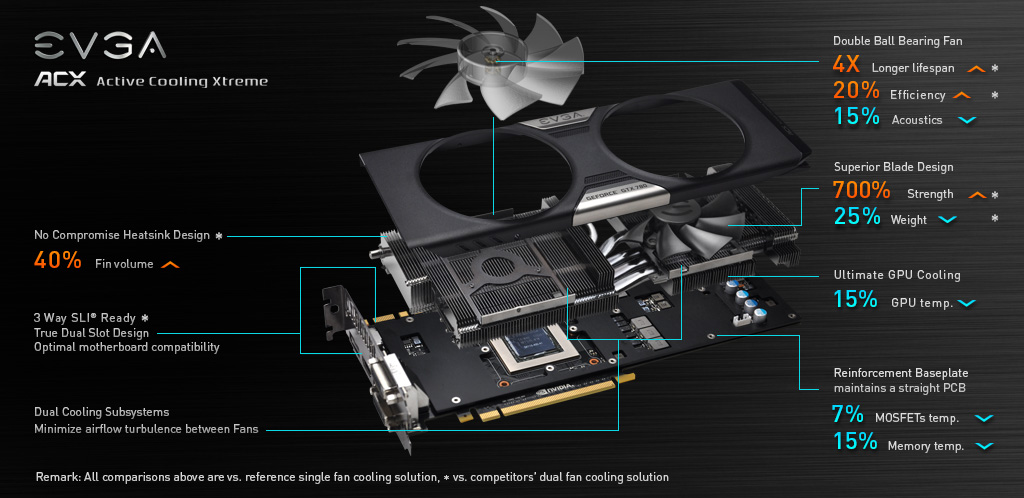

EVGA GeForce GTX 780 ACX Cooling
The new double ball bearing ACX cooler from EVGA redefines traditional enthusiast coolers. Starting with a 40% increase in heatsink volume, the EVGA ACX is more efficient at dissipating heat, allowing for 15% lower GPU temperatures. A reinforcement baseplate maintains a straight PCB, and helps lower mosfet temperatures by 7% and memory temperatures by 15%.
EVGA also spent time to ensure that even the fan blades were of the highest quality; with a 700% increase in strength, and 25% lower weight when compared to competitors dual fan designs. This makes the fans 20% more efficient by requiring lower power levels. Of course, EVGA is also using double ball bearing fans which offer a 12 year lifespan, this is 4X longer when compared to competitors!
Do not settle for the low quality materials found in competitors cooling solutions on your high end product, EVGA offers the best!
Ultimate GPU Cooling
15% average lower GPU and Memory temperatures give you the low temperatures needed for extreme overclocks, and with GPU Boost 2.0, it ensures your card maintains the maximum boost clock possible.

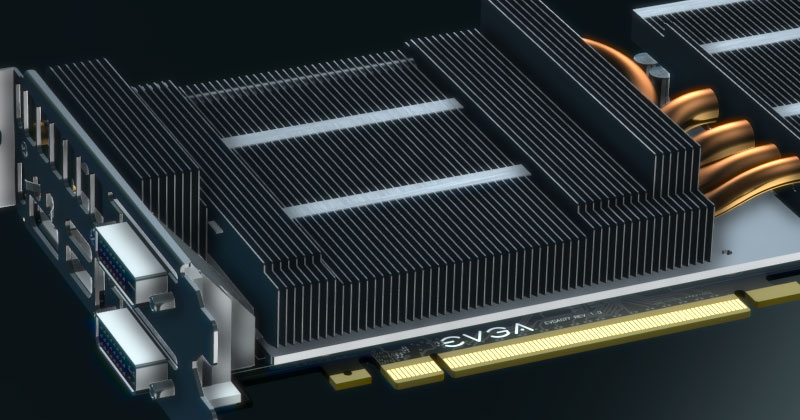

No Compromise Heatsink Design
An increase of 40% in heatsink fin volume distributes heat evenly and efficiently.

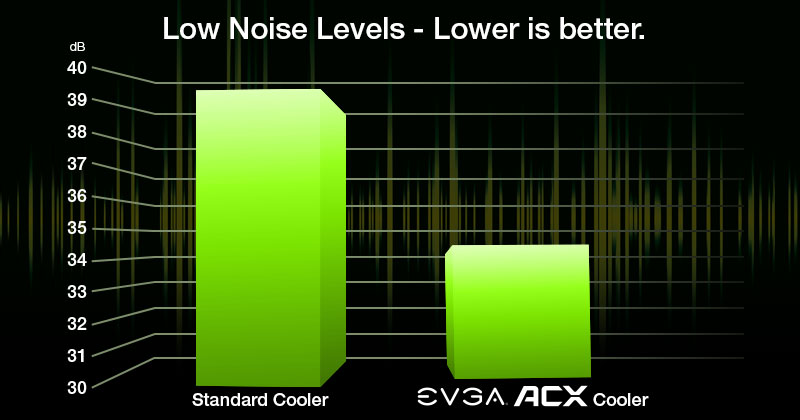

Low Noise Levels
The dual fan design dramatically increases airflow, meaning the fans only need to spin at a much lower RPM, reducing noise levels significantly. In fact it is 15% quieter on average!
Double Ball Bearing Design
The EVGA ACX cooler features a double ball bearing design, meaning the fans have an average lifespan of 12 Years! This is 4X longer than the competitors sleeve bearing fans.

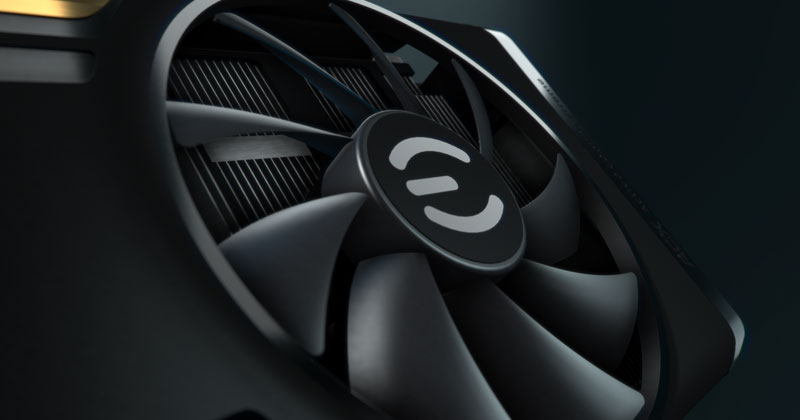

Superior Blade Design
EVGA even went as far as crafting each individual fan blade with the utmost in quality. The fan blades on the EVGA ACX Cooler are 700% stronger and weigh 25% less than standard versions. This makes the fans 20% more efficient by requiring lower power levels.

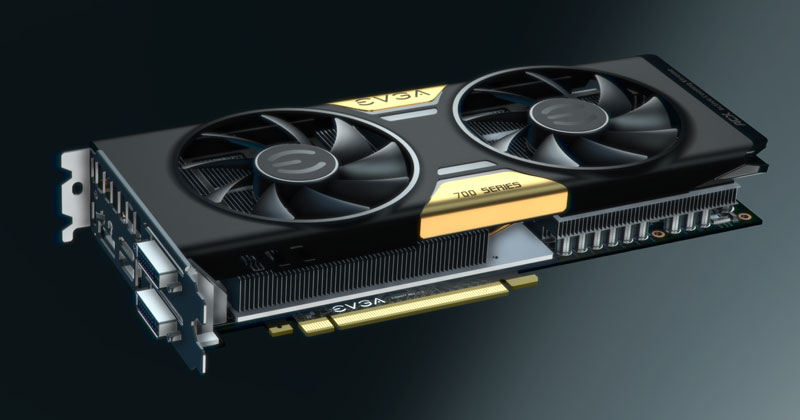

Dual Slot Design
No need to worry about bulky heatsink designs that cover unnecessary PCI-E lanes, the EVGA ACX cooler is a dual slot design, the optimal size for all forms of NVIDIA SLI.

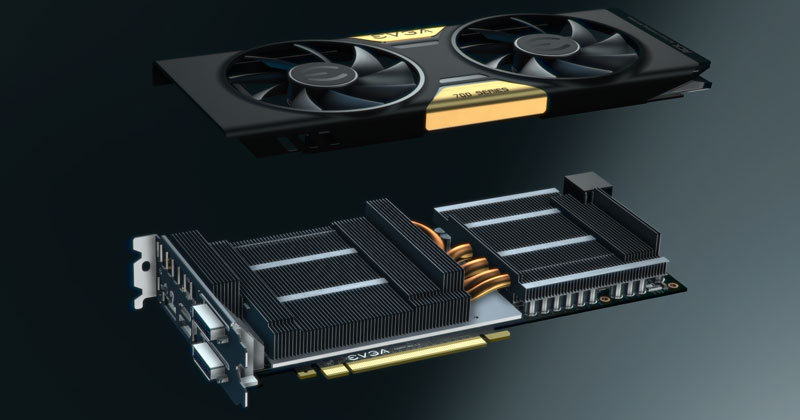

Dual Cooling Subsystems
Minimizing air turbulence between fans, this makes sure that the airflow is distributed evenly, and reduces noise level.

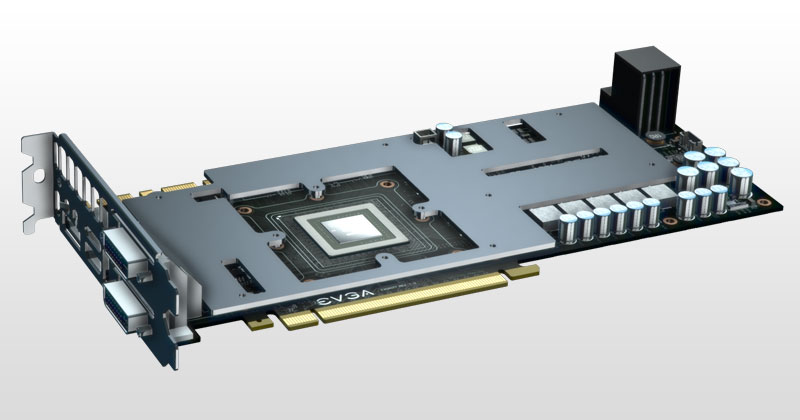

Reinforcement Baseplate
This helps to maintain a straight PCB, and helps lower mosfet temperatures by 7% and memory temperatures by 15%.
EVGA GeForce GTX 780 Academy
The EVGA GeForce GTX 780 is more than just fast and smooth. It’s perfectly tuned to today’s most advanced gaming technologies with features like GeForce Experience™ for one-click driver and settings optimization, plus NVIDIA® PhysX® and TXAA™ for smooth, sharp graphics, and more! Learn about some of the key technologies below:

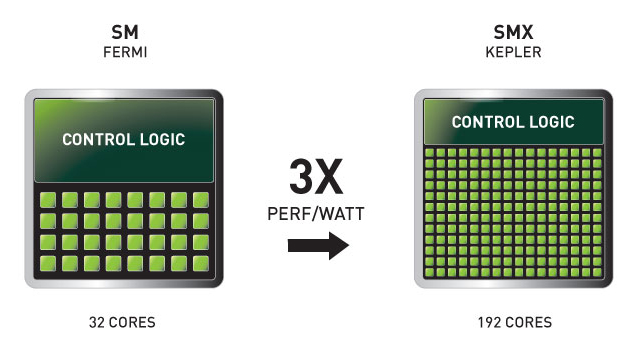

NVIDIA SMX Engine
The new Kepler SMX streaming multiprocessor is twice as efficient as the prior generation and the new geometry engine draws triangles twice as fast. The result is world class performance and the highest image quality in an elegant and power efficient graphics card.

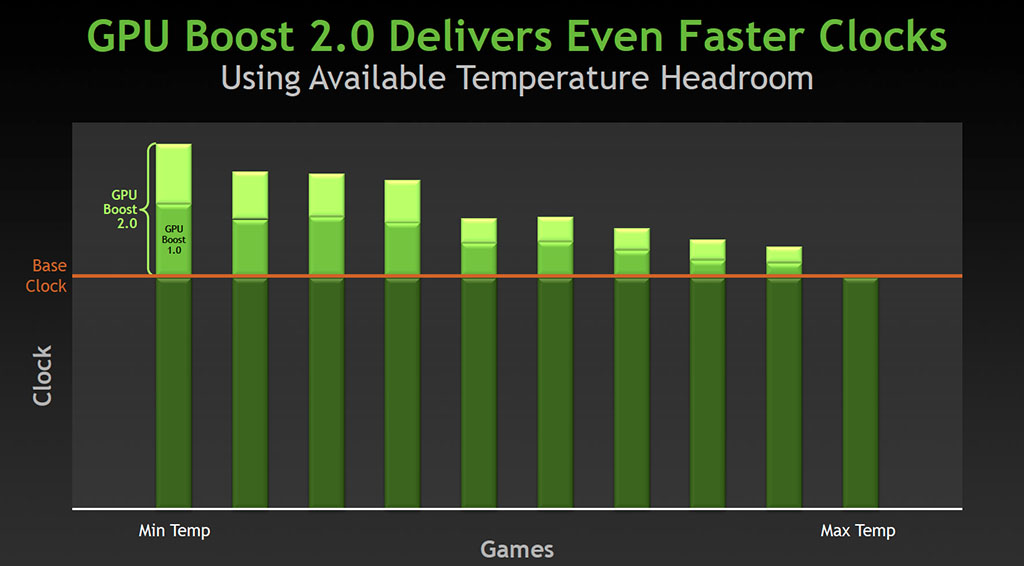

NVIDIA GPU Boost Technology 2.0
Dynamically maximizes clock speeds to push performance to new levels and bring out the best in every game. Boost 2.0 allows complete control over Temperature Target and Power Target, allowing a new way to customized your overclock. Also, with the new EVGA Precision X, you can increase the voltage for maximum overclock!

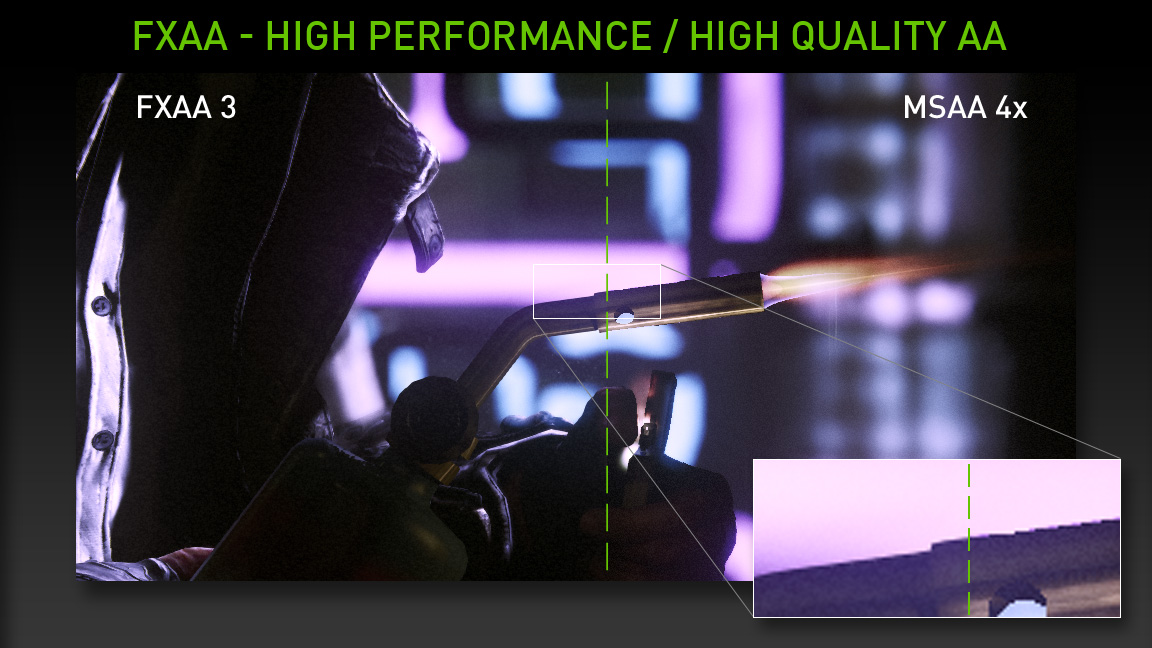

NVIDIA FXAA
Anti-aliasing smoothes out jagged edges but can be demanding on framerates. FXAA is a new antialiasing technology that produces beautiful smooth lines with minimal performance impact. And with Kepler based GPUs, you’ll be able to enable FXAA in hundreds of game titles through the NVIDIA Control Panel.

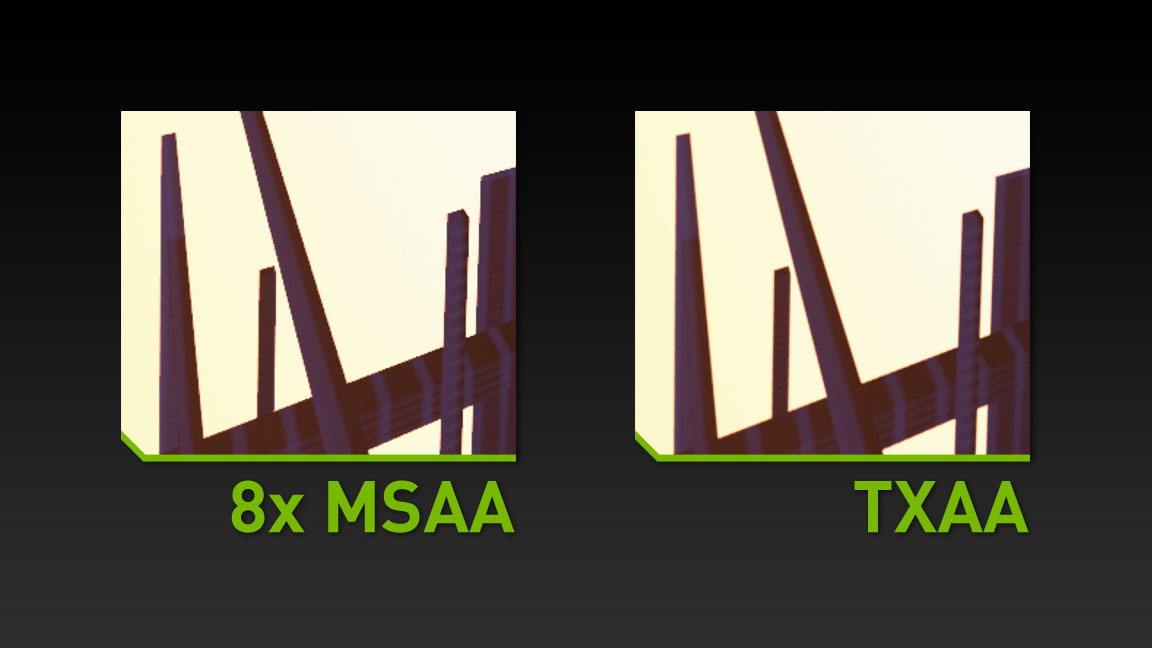

NVIDIA TXAA
An in-game option that combines MSAA, temporal filtering, and post processing for even higher visual fidelity. Get the image quality of 8X MSAA with the performance hit of only 2X MSAA. This means a smoother gaming experience without the loss of FPS normally associated with this level of eye candy.

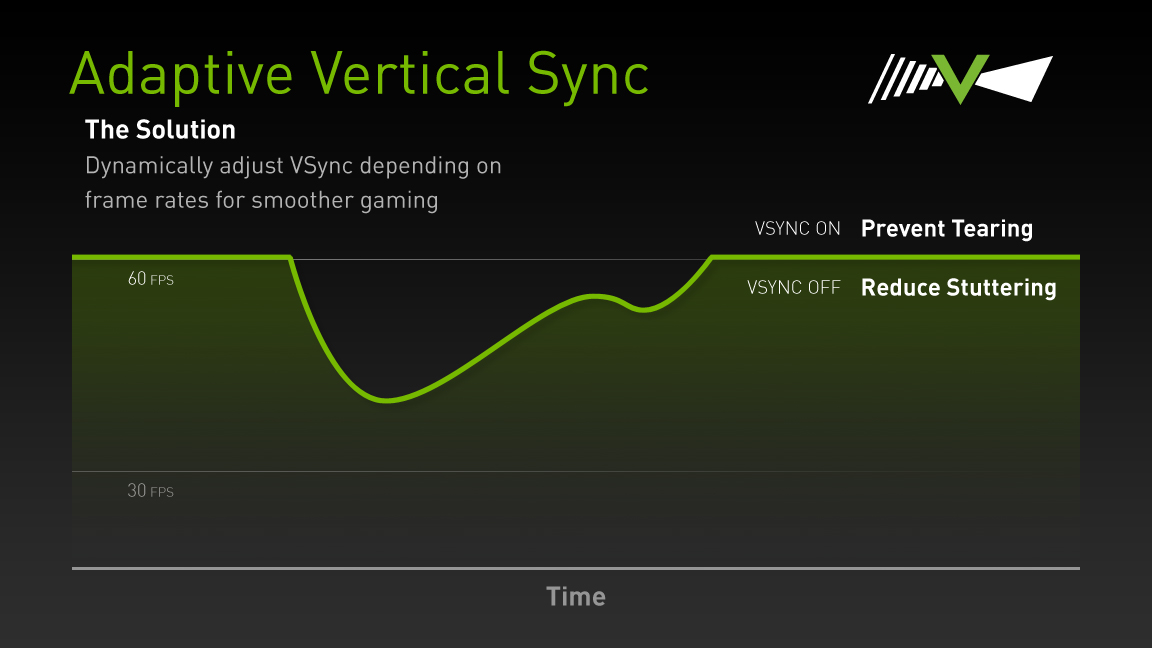

NVIDIA Adaptive Vertical Sync
Nothing is more distracting than framerate stuttering and screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-Sync is enabled to eliminate tearing, at low frame rates, it’s disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming.
Frame Rate Target
Set a target Frame Rate with EVGA Precision X and your card will automatically adjust the power/performance to meet that target. This feature delivers the ultimate in efficient gaming.
NVIDIA 3D Vision Surround
Imagine your gaming real estate across three displays in full HD 3D for a completely immersive gaming experience. With the EVGA GeForce GTX 780, you can use award-winning NVIDIA 3D Vision technology to build the world’s first multi-display 3D gaming experience on your PC. Additionally, the GeForce GTX 780 supports an accessory display for the ultimate gaming experience!

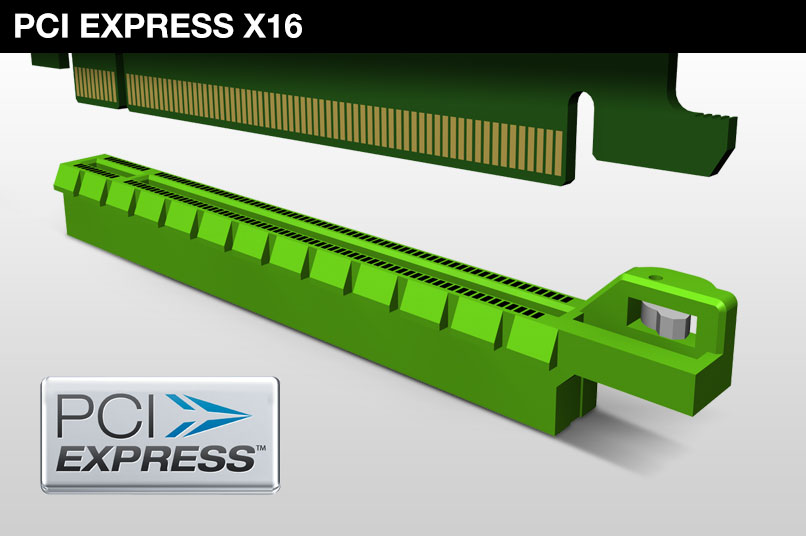

PCI Express 3.0
Offers double the bandwidth of PCI Express 2.0, for the highest data transfer speeds to allow for maximum performance in bandwidth-hungry games and 3D applications. The EVGA GeForce GTX 780 is still backwards compatible with all existing PCI Express motherboards.

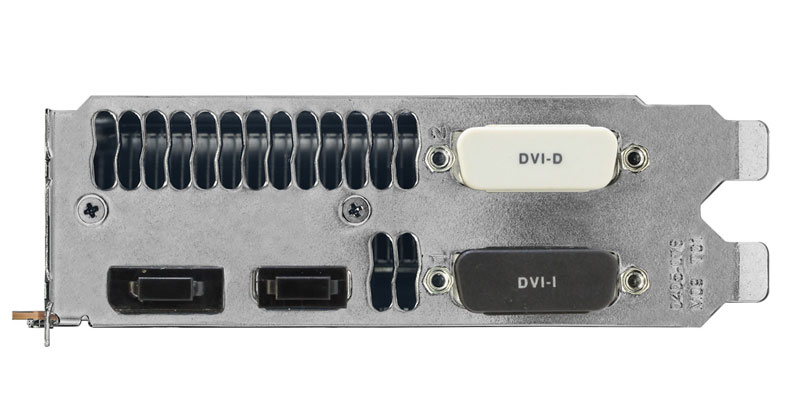

Attention to Quality
EVGA’s attention to quality is worth noting, from performance to appearance, even down to the packaging contents and protection. EVGA cards ship with cover caps over the critical components, eliminating worries about any dust build-up or damage that could occur.
Pixel Clock Control
Use EVGA Precision X to “overclock” your refresh rate. With the latest EVGA Precision X, you can now increase your pixel clock! This allows for increased refresh rates on select monitors, meaning smoother gameplay and reduced screen tearing!

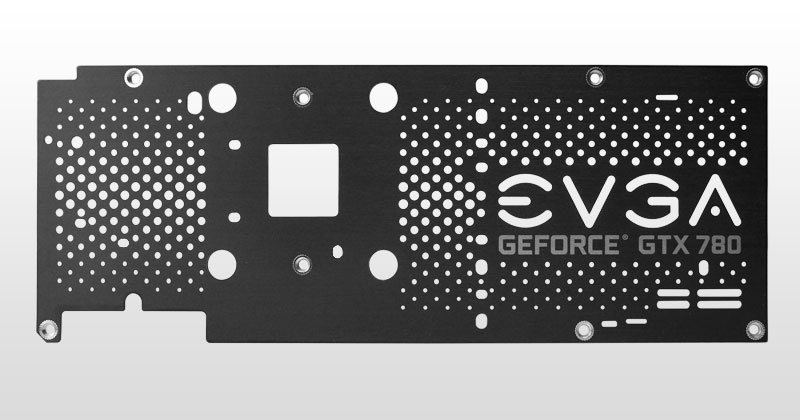

EVGA Backplate (Optional)
Available on some SKU’s, the EVGA GeForce GTX 780 backplate looks great, improves PCB strength and acts as a heatsink for the memory that is located on the backside of the card.
EVGA Warranty
New EVGA warranty that covers the graphics card, not the user. This means the only requirement for warranty coverage is ownership of the card during its warranty period. Learn more here.
EVGA GeForce GTX 780 Software
The EVGA award winning software has been further improved in the latest versions. EVGA Precision X 4 brings a major revamp to the software with a new GUI, new voltage controls, pixel clock control and much more. Check out what all the buzz is about by downloading the latest software from EVGA... for FREE!

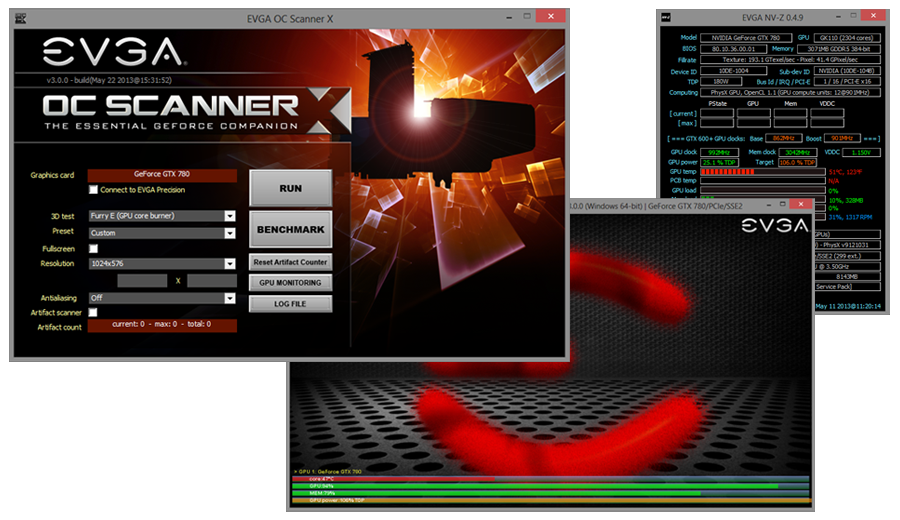

EVGA OC Scanner X is a free stress test utility, allowing you to test various aspects of your card with a variety of tests. This application even has a built in artifact detector that will notify you if any faults are found!
EVGA Precision X – Redesigned to harness the power of GPU Boost 2.0, EVGA Precision X sets another baseline for what overclocking software should be. Learn more and download it below!
Key Features
- GPU and Memory Frequency/Clock Offset
- Temperature Target Control
- Pixel Clock Overclocking
- Robust monitoring allowing ingame, system tray and/or Logitech LCD monitoring
- In game screenshot hotkey, supports BMP, PNG and JPG formats

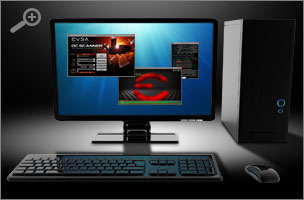

EVGA OC Scanner X – Featuring a brand new look and layout, this popular application has been updated to show all of the GeForce GTX 780 vitals. Learn more and download it here.
Key Features
- Built-in stress tester to find and report artifacts
- Benchmark function to quickly test your performance
- CPU Burn In Module
- Built-in log functionality
