Power Up

The EVGA SuperNOVA 1000 Watt power supplies are now available in both Gold and Platinum rated flavors. These power supplies offer 1000W of continuous power, exceptional efficiency and are fully modular. Not to mention, a first class 10 Year EVGA Warranty. Designed with enthusiast needs in mind the EVGA SuperNOVA 1000 power supplies are the best choice to power this and next generation enthusiast computers. Take your system to the next level and power up with the EVGA SuperNOVA 1000!

Platinum
Gold
Academy


Features

  • 80 PLUS Platinum high efficiency power supply certified – 50% load (92% Efficiency)
  • Superior vertical double layer main transformer
  • Dual Thermal Control System provides custom Fan RPM modes
  • ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
  • Japanese Nippon Chemi-Con solid state capacitors improves long-term reliability
  • High Amperage Single-Rail Design for maximum power and efficiency
  • Over Power/Under Power/Over Voltage/Short Circuit protections built in
  • Fully modular cable design (Improve airflow/cable management)

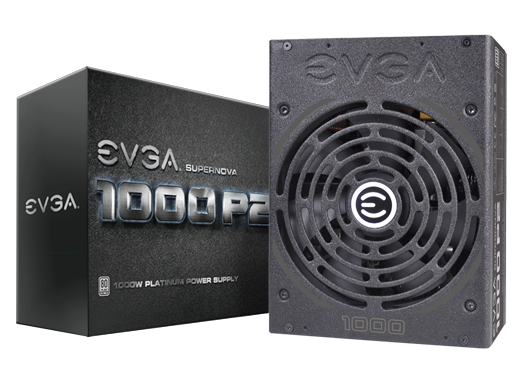

EVGA SuperNOVA 1000 P2

Specs

Heavy-duty protections, including:

  • OVP (Over Voltage Protection)
  • UVP (Under Voltage Protection)
  • OCP (Over Current Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
AC Input 100 - 240 VAC, 15A, 50 - 60 Hz
DC Output +3.3V +5V +12V -12V +5Vsb
MAX Output 20A 20A 83.3A 0.5A 2.5A
83A
Combined 100W 999.6W 6W 12.5W
Output Power 1000W @ +50C


Features

  • 80 PLUS Gold certified, with up to 90% efficiency under typical loads
  • Superior vertical double layer main transformer increases power output
  • Highest quality Japanese Nippon Chemi-Con solid state capacitors ensure long-term reliability
  • Fully Modular to reduce clutter and improve airflow
  • Quiet and Intelligent Auto Fan for near-silent operation
  • High Amperage Single-Rail Design for maximum power and efficiency
  • Over Power/Under Power/Over Voltage/Short Circuit protection built in
  • EVGA's unparalleled Customer Support
  • An outstanding 10 Year Warranty

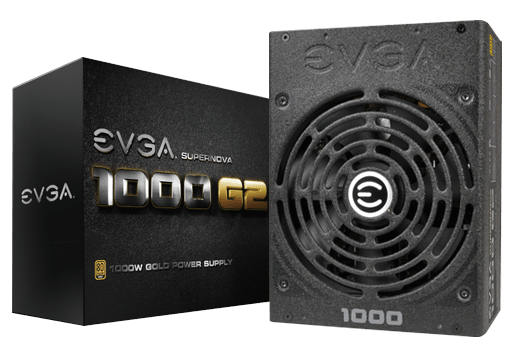

EVGA SuperNOVA 1000 G2

Specs

Heavy-duty protections, including:

  • OVP (Over Voltage Protection)
  • UVP (Under Voltage Protection)
  • OCP (Over Current Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
AC Input 100 - 240 VAC, 15A, 50 - 60 Hz
DC Output +3.3V +5V +12V -12V +5Vsb
MAX Output 24A 24A 83.3A 0.5A 3A
83A
Combined 120W 999.6W 6W 15W
Output Power 1000W @ +50C

EVGA SuperNOVA 1000W Academy

The EVGA SuperNOVA 1000W is the latest addition to the award-winning EVGA Power Supply line up. Bringing with it, a fully modular interface, Japanese capacitors, high quality near silent dual ball bearing fan and 1000 watts of continuous power. It also features a single, powerful +12 volt rail to maximize stability and compatibility. The EVGA SuperNOVA 1000W also has NVIDIA SLI, 80 Plus Gold Rating certification and 80 Plus Platinum Rating certification. You can also feel secure knowing that EVGA power supplies have a host of power protections to keep your hardware safe! Learn more below:

Platinum Rated Efficiency (220-P2-1000-XR)

80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 92% efficient or higher.

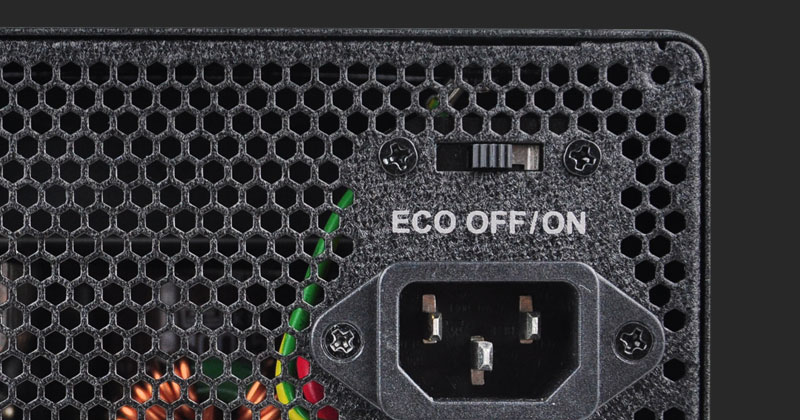

Dual Thermal Control System

The EVGA ECO Thermal Control System provides silent operation at low loads, improved efficiency and longer life span of the fan. Reduce ambient noise and energy costs for your total operation with the EVGA Thermal Control System.

Gold Rated Efficiency (120-G2-1000-XR)

80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 90% efficient or higher.

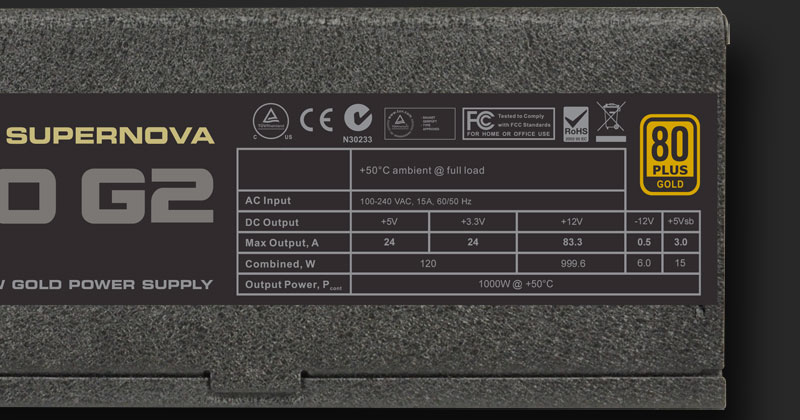

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 1000W provides up to 83.3A on a single rail!

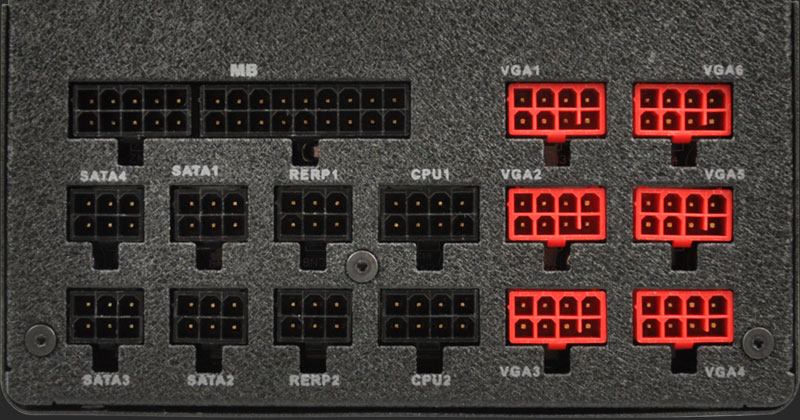

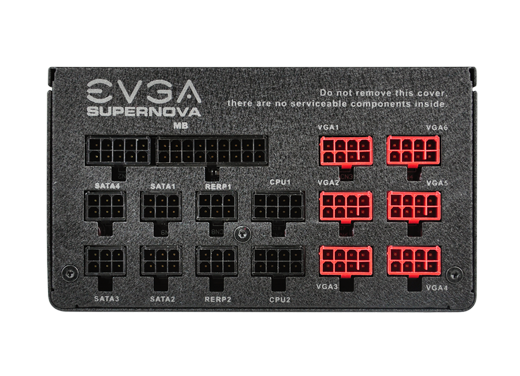

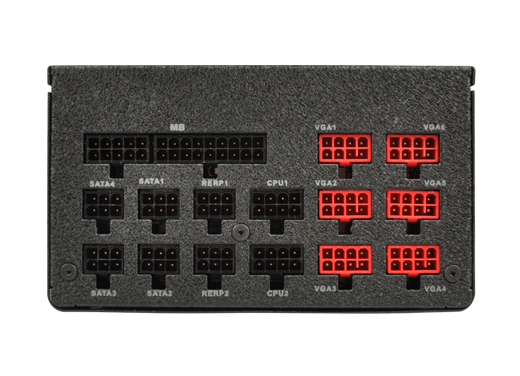

Fully Modular

Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.

NVIDIA SLI Certification

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 1000W gives you the power you need to drive these demanding systems and achieve the best overclocks.

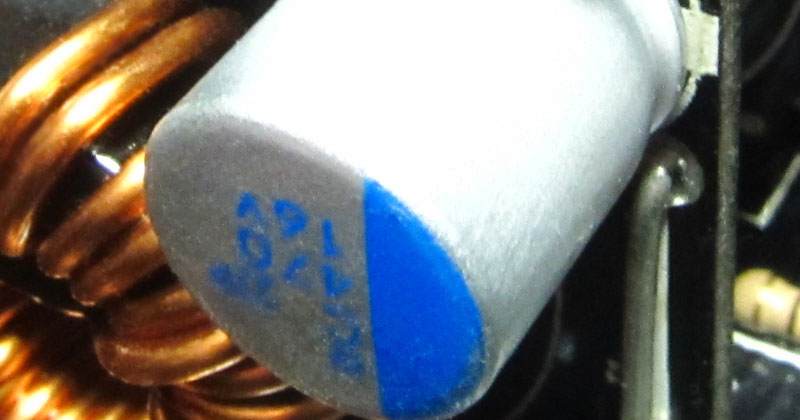

Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.

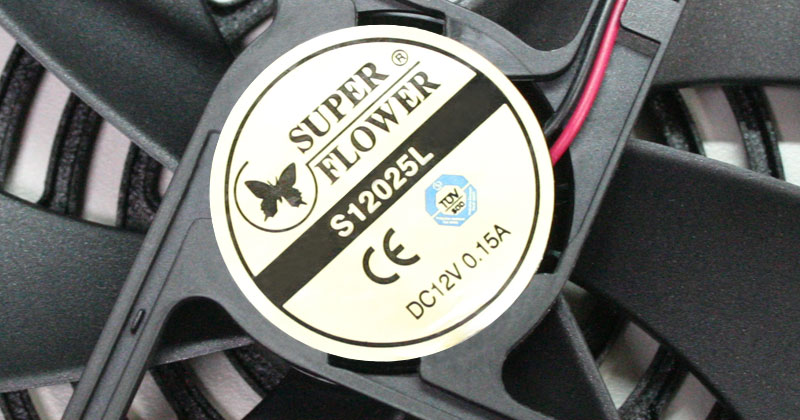

Double Ball Bearing Fan

A high-quality dual-ball bearing fan gives the SuperNOVA 1000W an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

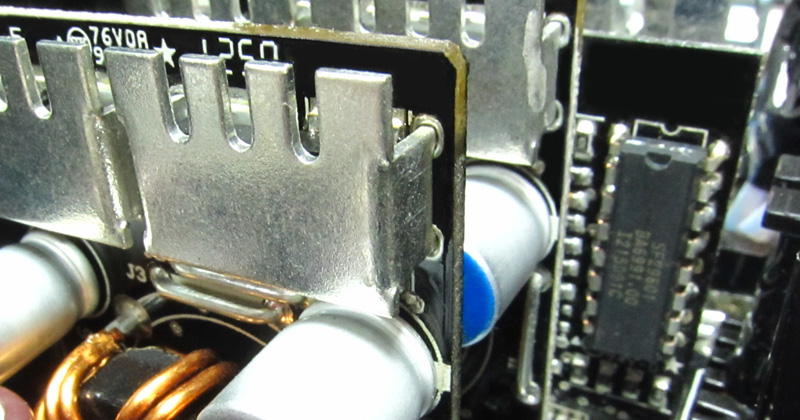

LLC Resonant Circuit Layout

Full DC to DC, LLC resonant circuit design improves efficiency.
