The Gamer's Sweet Spot
Get the weapon of choice for gamers – the EVGA® GeForce® GTX 660. It takes NVIDIA® Kepler™-powered graphics cards to new levels of affordability while retaining class-leading performance and power efficiency, making it a must-have upgrade for today’s hottest games. The EVGA® GeForce® GTX 660 graphics card represents the Kepler™ “sweet spot” for gamers – the ultimate combination of performance, power efficiency, and affordability.
- GTX 660 SC
-
2GB

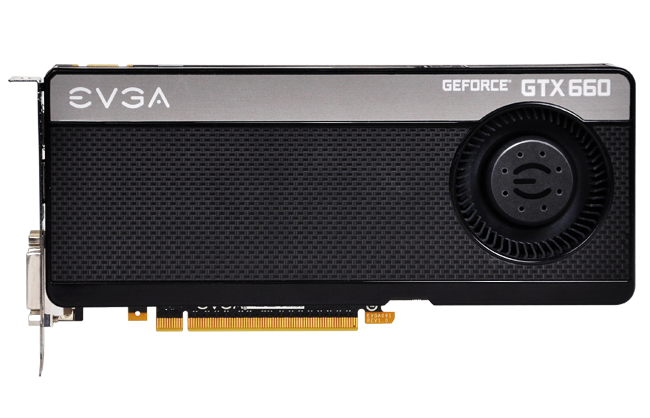

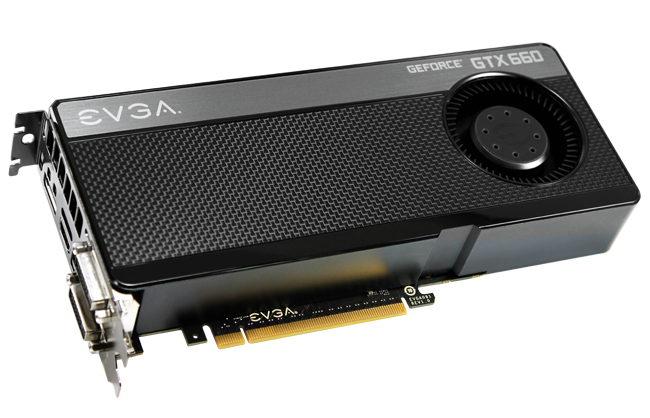

EVGA GeForce GTX 660 SC 2GB
Core Specs
- CUDA Cores: 960
- Base Clock: 1046 MHz
- Boost Clock: 1111 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory Specs
- Memory Detail: 2048 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 144.19 GB/s
Key Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2*
- Microsoft DirectX 11 with Direct Compute 5.0 support
- NVIDIA PhysX Technology
- NVIDIA 3D Vision Ready**
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.2 Support
- OpenCL Support
3GB
EVGA GeForce GTX 660 SC+ 3GB
Core Specs
- CUDA Cores: 960
- Base Clock: 1046 MHz
- Boost Clock: 1111 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory Specs
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 144.19 GB/s
Key Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2*
- Microsoft DirectX 11 with Direct Compute 5.0 support
- NVIDIA PhysX Technology
- NVIDIA 3D Vision Ready**
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.2 Support
- OpenCL Support
- EVGA Backplate
2GB Signature 2
EVGA GeForce GTX 660 SC Signature 2 2GB
Core Specs
- CUDA Cores: 960
- Base Clock: 1046 MHz
- Boost Clock: 1111 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory Specs
- Memory Detail: 2048 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 144.19 GB/s
Key Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2*
- Microsoft DirectX 11 with Direct Compute 5.0 support
- NVIDIA PhysX Technology
- NVIDIA 3D Vision Ready**
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.2 Support
- OpenCL Support
- 15% Improved Cooling on GPU
3GB Signature 2
EVGA GeForce GTX 660 SC Signature 2 3GB
Core Specs
- CUDA Cores: 960
- Base Clock: 1046 MHz
- Boost Clock: 1111 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory Specs
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 144.19 GB/s
Key Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2*
- Microsoft DirectX 11 with Direct Compute 5.0 support
- NVIDIA PhysX Technology
- NVIDIA 3D Vision Ready**
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.2 Support
- OpenCL Support
- 15% Improved Cooling on GPU
- GTX 660 FTW
-
2GB Signature 2
EVGA GeForce GTX 660 FTW Signature 2 2GB
Core Specs
- CUDA Cores: 960
- Base Clock: 1072 MHz
- Boost Clock: 1137 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory Specs
- Memory Detail: 2048 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 144.19 GB/s
Key Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2*
- Microsoft DirectX 11 with Direct Compute 5.0 support
- NVIDIA PhysX Technology
- NVIDIA 3D Vision Ready**
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.2 Support
- OpenCL Support
- 15% Improved Cooling on GPU
3GB Signature 2
EVGA GeForce GTX 660 FTW Signature 2 3GB
Core Specs
- CUDA Cores: 960
- Base Clock: 1072 MHz
- Boost Clock: 1137 MHz
- Bus: PCIe 3.0
- 2-way SLI Ready
Memory Specs
- Memory Detail: 3072 MB GDDR5
- Memory Bit Width: 192 Bit
- Memory Clock: 6008 MHz
- Memory Speed: 0.33 ns
- Memory Bandwidth: 144.19 GB/s
Key Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays; two dual-link DVI connectors, HDMI and Displayport 1.2*
- Microsoft DirectX 11 with Direct Compute 5.0 support
- NVIDIA PhysX Technology
- NVIDIA 3D Vision Ready**
- NVIDIA SLI Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 Support
- OpenGL 4.2 Support
- OpenCL Support
- 15% Improved Cooling on GPU
Academy
EVGA GeForce GTX 660 Academy
Get the weapon of choice for gamers – the EVGA GeForce GTX 660. It adds a new dimension to the NVIDIA Kepler-powered family of graphics cards by delivering the ideal fusion of power, performance, and affordability. Experience faster, smoother, richer gaming with innovative NVIDIA technologies like TXAA antialiasing, Adaptive Vertical Sync, and PhysX.
- NVIDIA SMX Engine
- Brand new processing engine which delivers twice the performance/watt compared to previous generations.

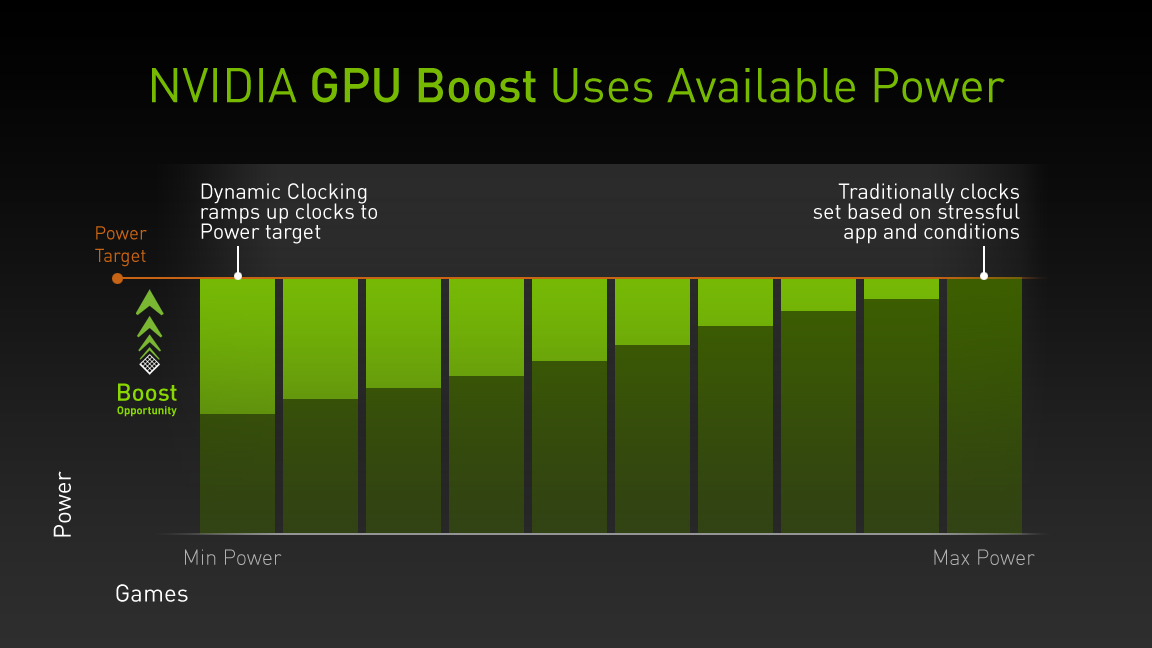

- NVIDIA GPU Boost Technology
Dynamically maximizes clock speeds to push performance to new levels and bring out the best in every game. This technology is based on the temperature and power draw of your card, as well as what application you're running. The card will tailor its clock speeds for maximum performance & longevity. - NVIDIA FXAA

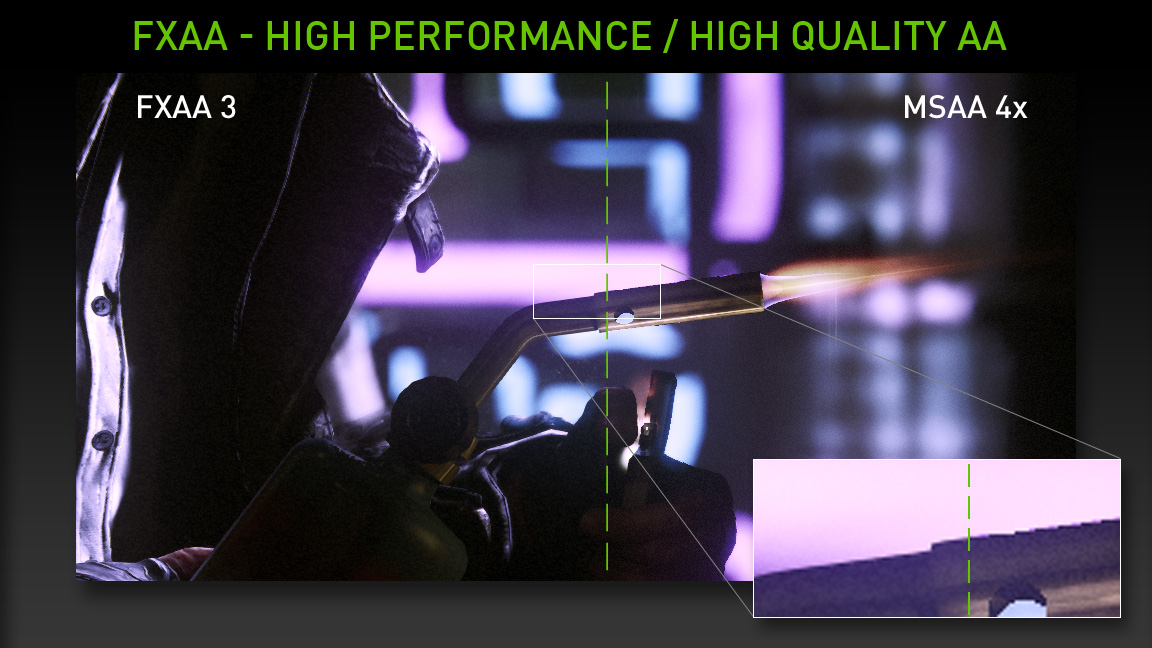

Enables lightning fast anti-aliasing in a huge variety of games with the simple click of a mouse.- NVIDIA TXAA

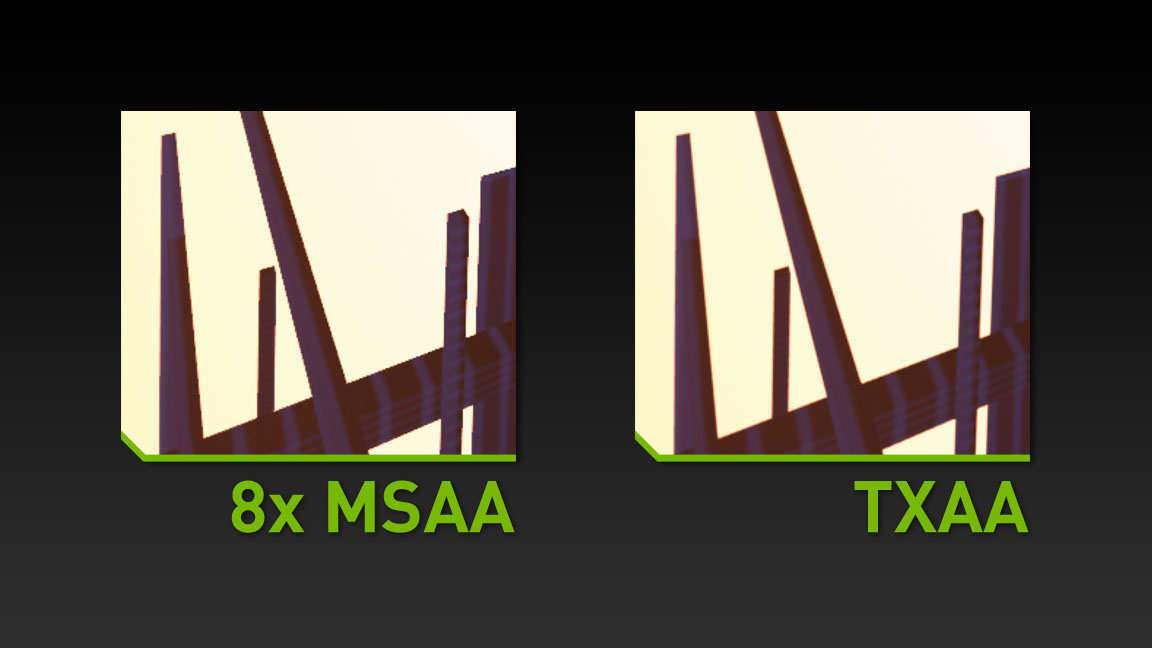

Get the image quality of 8X MSAA with the performance hit of only 2X MSAA. This means a smoother gaming experience without the loss in FPS normally associated with this level of eye candy.- NVIDIA Adaptive Vertical Sync
Adjusts VSync to your monitor's native refresh rate for the smoothest gameplay possible.- Frame Rate Target
Set a target Frame Rate with EVGA Precision X and your card will automatically adjust the power/performance to meet that target. This feature delivers the ultimate in efficient gaming.- NVIDIA 3D Vision Surround
Now supported on a single GPU, with up to three gaming monitors plus one accessory display!- PCI Express 3.0
- Offers double the bandwidth of PCI Express 2.0, for the highest data transfer speeds to allow for maximum performance in bandwidth-hungry games and 3D applications. The GTX 660 is still backwards compatible with all existing PCI Express motherboards.
- Thermal Misconceptions
- Large dual, triple, or even center fan coolers seem to be all the rage these days, but what is really happening inside your PC case? Check out the videos below to get a good sense of what is really going on, and why a graphics card with a rear exhaust is a good idea.
Click a thumbnail to view one of the videos - Attention to Quality
- EVGA's attention to quality is worth noting, from performance to appearance, even down to the package contents and protection. EVGA cards ship with cover caps over the critical components, eliminating worries about any dust build-up or damage that could occur.
- EVGA High Flow Bracket

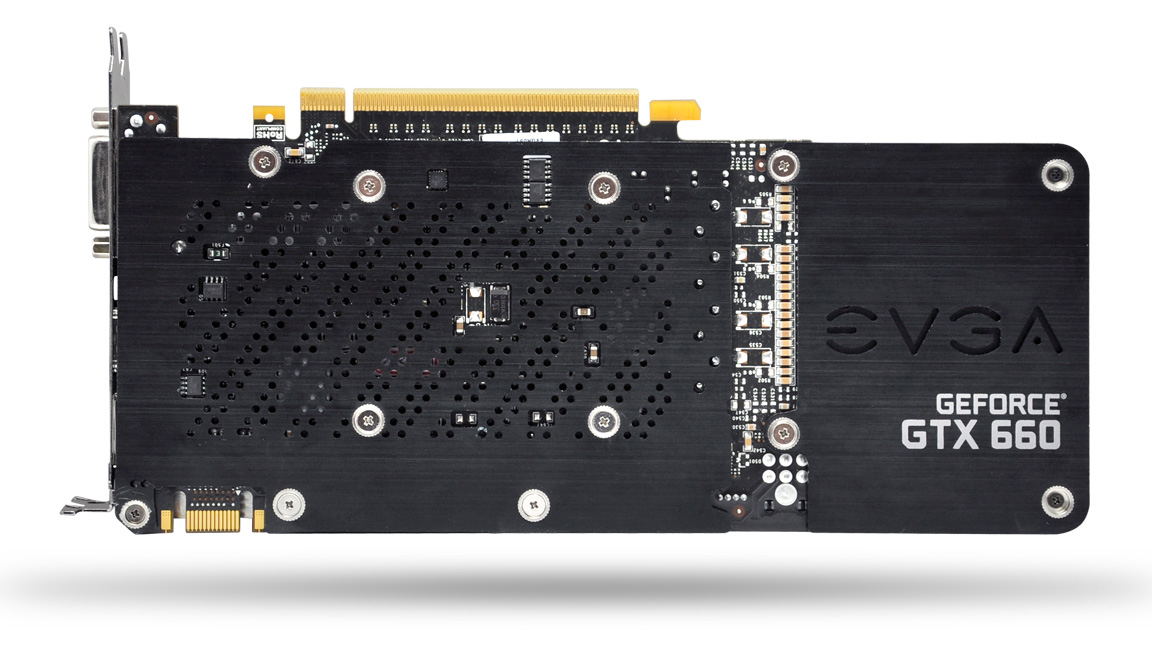

On select EVGA graphics cards, this brand new bracket design lowers operating temperatures by as much as 3 degrees Celsius.- EVGA Backplate
On select EVGA graphics cards, this backplate looks awesome and improves PCB strength.
Software
EVGA GeForce GTX 660 Software

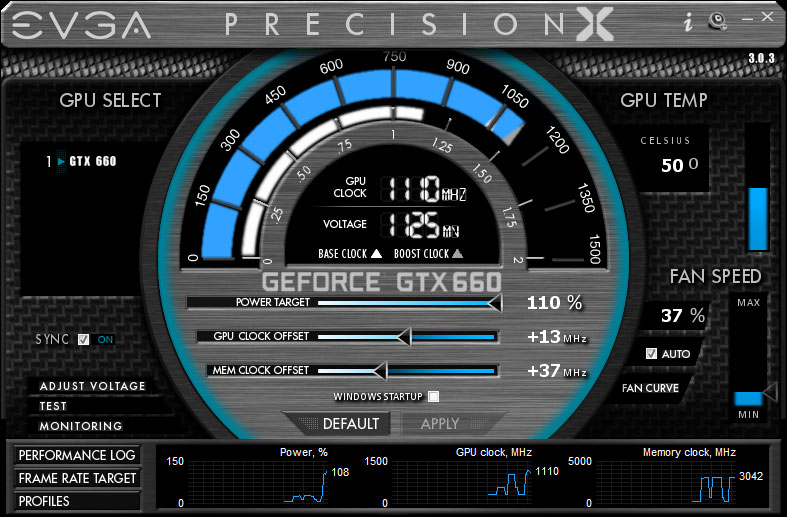

EVGA Precision X – Designed from the ground up to support the brand new technologies inside the EVGA GeForce GTX 660, EVGA Precision X redefines what overclocking software should be. Learn more and download it here.
Download GTX 660 Precision X Skin
EVGA OC Scanner X – Featuring a brand new look and layout, this popular application has been adapted to show all of the GeForce GTX 660’s vitals. Learn more and download it here.
