  • EVGA X58 Classified
    4-Way SLI
  • Full View
  • 4-Way SLI
  • 600 Watts
  • Socket Bling

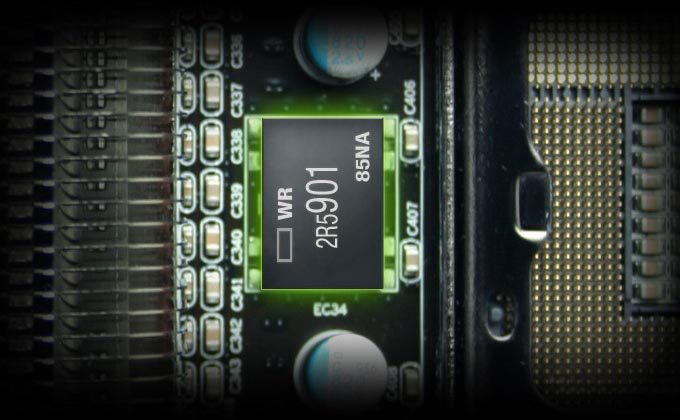

  • Clean Power

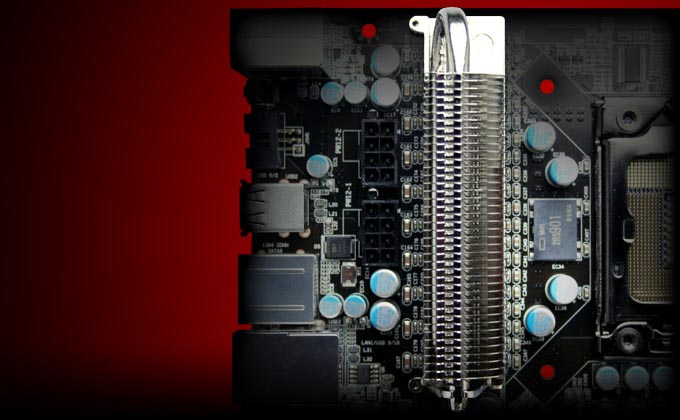

  • 10 Phase PWM
  • 24GB of Memory
  • EVGA GTX285
    Classified
  • Full View
  • Voltage Points

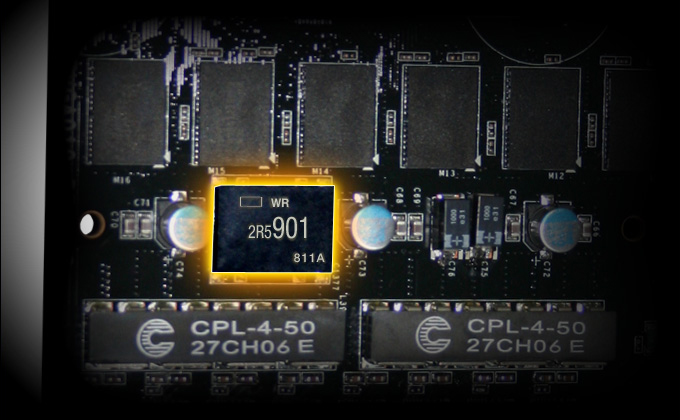

  • Clean Power
  • Extreme Cooling
  • 8 Phase PWM

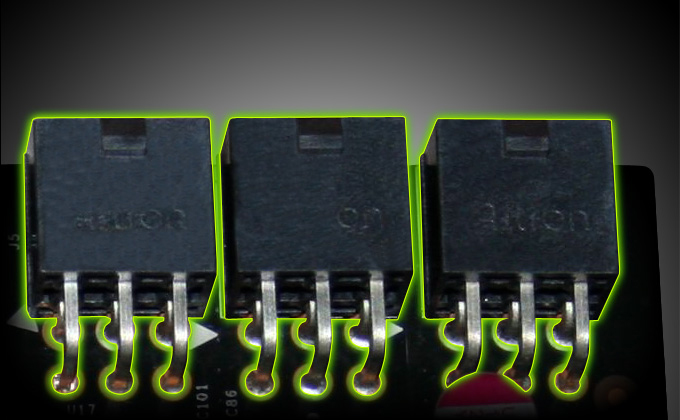

  • Extreme Power

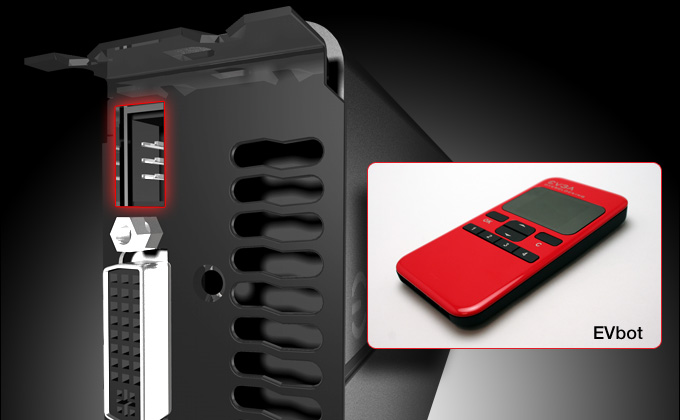

  • EVbot

The New 4-Way SLI Platform Has Arrived!

The ultimate motherboard and the ultimate single-GPU graphics card are here. If you want to break records, this is the platform for you.


EVGA is proud to announce the world’s first 4-way SLI capable setup, the EVGA GTX 285 Classified and X58 Classified 4-Way SLI, but the innovative features do not stop there. Everything on the GTX 285 Classified is designed for the extreme enthusiast, from the 8 Phase Digital PWM to the X-Cool Switch and Dedicated Voltage readpoints! These features and more allow you to do what matters; get the most from your hardware.

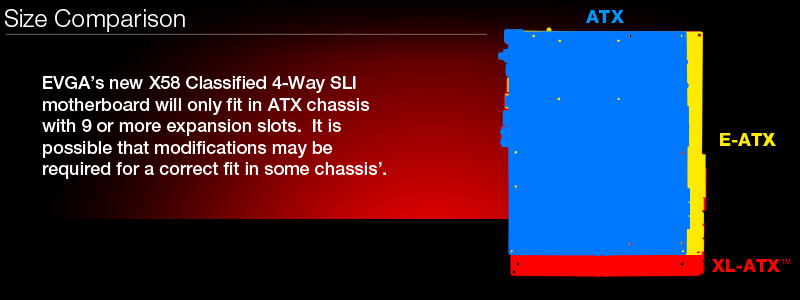

In addition to this innovative graphics card, EVGA is also announcing the EVGA X58 Classified 4-Way SLI Edition, this motherboard has an impressive 7 PCIe Expansion slots allowing you to combine up to 4 EVGA GTX 285 Graphics cards for extreme performance! Important note: a case with 9 or more expansion slots is required, 10 for 4-Way SLI.

So just what kind of performance can you expect to see with 4-Way GTX 285’s? Well just ask extreme overclockers Vince “k|ngp|n” Lucido and Peter “Shamino” Tan. They were able to break not 1, not 2, not even 3 but 4 3DMark World Records with this incredible setup! Motor City Overclocking Event

Now is your chance to be one of the first to own this record breaking hardware! You can pre-order below, products are shipping soon.

Stage one of the global F1 over-clocking competition is complete with first round at 3D mark vantage.

It is a fantastic result to see that the top two teams achieving superior scores here both using EVGA product. Team EVGA with an extreme platform using 4x GTX285 classified and EVGA 4-way Classified, and at a reference level Team AU using 2 x GTX295 and EVGA Classified. This competition result is clearly showing unbeatable performance with EVGA Classified platform setting new standards.



EVGA GTX 285 Classified Graphics Card

  • GeForce GTX 285 GPU
  • 4-Way SLI Support
  • 8 Phase Digital PWM
  • Low ESR/ESL Film Capacitor
  • X-Cool jumper for Extreme OC
  • 3 PCIe 6 pin power connectors
  • Dedicated Voltage Read Points
  • EVGA EVbot support

EVGA X58 SLI Classified 4-Way SLI Motherboard

  • Intel® X58 Express Chipset with the ICH10R Southbridge
  • 7 PCIe Slots for 2-Way, 3-Way, 4-Way SLI or CrossFireX Support
  • 10 Phase Digital PWM with Switching Frequency of 1333KHz
  • Low ESR/ESL Film Capacitor
  • 100% Solid State Capacitors
  • EVGA E-LEET Tuning Utility Software
  • EVGA EVbot Support
  • EVGA ECP V2 (EVGA Control Panel)


For 4-way SLI, EVGA recommends a chassis with 10 expansion slots and a PSU of 1500w and greater.




170-BL-E762-A1
EVGA X58 Classified 4-Way SLI
Part Number 170-BL-E762-A1
CPU Support Intel Socket 1366
Chipset Intel X58
Memory Support Dual or Triple Channel DDR3
SLI Support 4-Way
SATA Header 9
SATA Type 3GB/sec
USB Ports 12
PCIE Slot 7 x PCIe x16/8
Integrated LAN 2 x 10/100/1000
Product Warranty Limited Lifetime upon registration

GeForce is a registered trademark of NVIDIA Corporation in the United States and other countries. Intel, Intel Core and the Intel logo are trademarks of Intel Corporation in the United States and other countries. All brands, products and companies are trademarks or registered trademarks of their respective companies. All rights reserved.

Article viewed: 354525 times since 8/31/2009
