The best just got better!

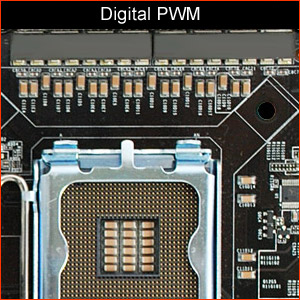

 EVGA took the original overclockers dream; The EVGA 790i SLI FTW; and made it even more extreme with the addition of Digital Power Management (Digital PWM - Pulse Width Modulation), once again improving upon the voltage stability and efficiency. In addition, the EVGA 790i SLI FTW Digital PWM includes solid state capacitors, an 8-Phase Power design, on-board all ferrite core chokes, an enhanced enthusiast BIOS, Vdroop control and much more. The EVGA 790i SLI FTW Digital PWM is the ultimate platform for those who demand the best and expect the best!
What does Digital PWM do for me?
- Improved voltage stability.
- Improved voltage efficiency.
- And most importantly, improved overclockability!
|
|
Hover over to Zoom-in
FREE: Special Edition EVGA Precision skin with registration.
Once your 790i FTW is registered, view the
"My Products" page to download.

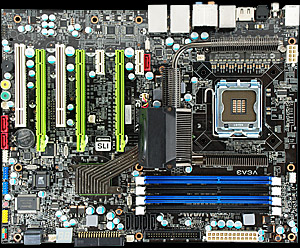

EVGA nForce 790i SLI FTW Digital PWM Features:
- Innovative chipset fan design directs airflow away from the graphics card.
- Reach extreme overclocking speeds supporting 1600MHz FSB and beyond.
- 8 phase power design for superb stability and performance.
- Solid state capacitors and ferrite core chokes allow for better overclocking and stability.
- Convenient layout with on-board Clear CMOS, Power, and Reset buttons.
- Friendly system BIOS features with easy to use overclock and voltage settings.
- Extreme DDR3 speeds of 2000MHz and beyond.
Features and Benefits:
- NVIDIA SLI certified
- Intel socket 775
- 45nm CPU ready (Yorkfield & Wolfdale)
- 8 Phase power design
- PCI Express 2.0 support
- 2-Way and 3-Way SLI support
- 9 SATA-2 ports with support for RAID 0, 1, 0+1, 5, JBOD
- On-board buttons for CMOS/Power/Reset
- HD Audio - 7.1 Channel
|
 |
Power Phases |
Fan Design |
Vdroop Control |
Enthusiast BIOS Enhanced |
Solid State Capacitors |
Onboard Clear CMOS |
Onboard Power / Reset with LED Activity |
Core Chokes |
Dummy OC |
SATA Ports |
| EVGA nForce 790i SLI FTW Digital PWM |
8 Phase Digital PWM |
Innovative Sideways Exhaust |
Yes |
Yes |
100% Solid State |
Yes |
Yes |
Ferrite |
Yes |
9 |
| Standard nForce 790i Ultra SLI |
6 Phase |
Standard Design |
N/A |
N/A |
15% Solid State
(The rest are Electrolytic Caps) |
N/A |
N/A |
Iron |
N/A |
7 |
|
|
|
| nForce 790i SLI FTW DIGITAL PWM |
| Part Number |
132-YW-E180-A1 |
| CPU Support |
Intel Socket 775 |
| Chipset |
NVIDIA 790i |
| Memory Support |
DDR3 1066/1333/1600/2000 MHz |
| FSB Speed |
Supports 800/1066/1333/1600 Mhz |
| SATA Header |
9 |
| SATA Type |
300MB/sec |
| USB Ports |
10 |
| PCIE Slot |
3 x PCIe x16, 2 x PCIe x1, 2 x PCI |
| Integrated LAN |
2 x 10/100/1000 |
| Product Warranty |
Limited Lifetime warranty
upon registration
|
|
|
|
GeForce is a registered trademark of NVIDIA Corporation in the United States and other countries.
Article Viewed: 108835 times since 9/26/2008
|
